GRS208L-DETBKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )

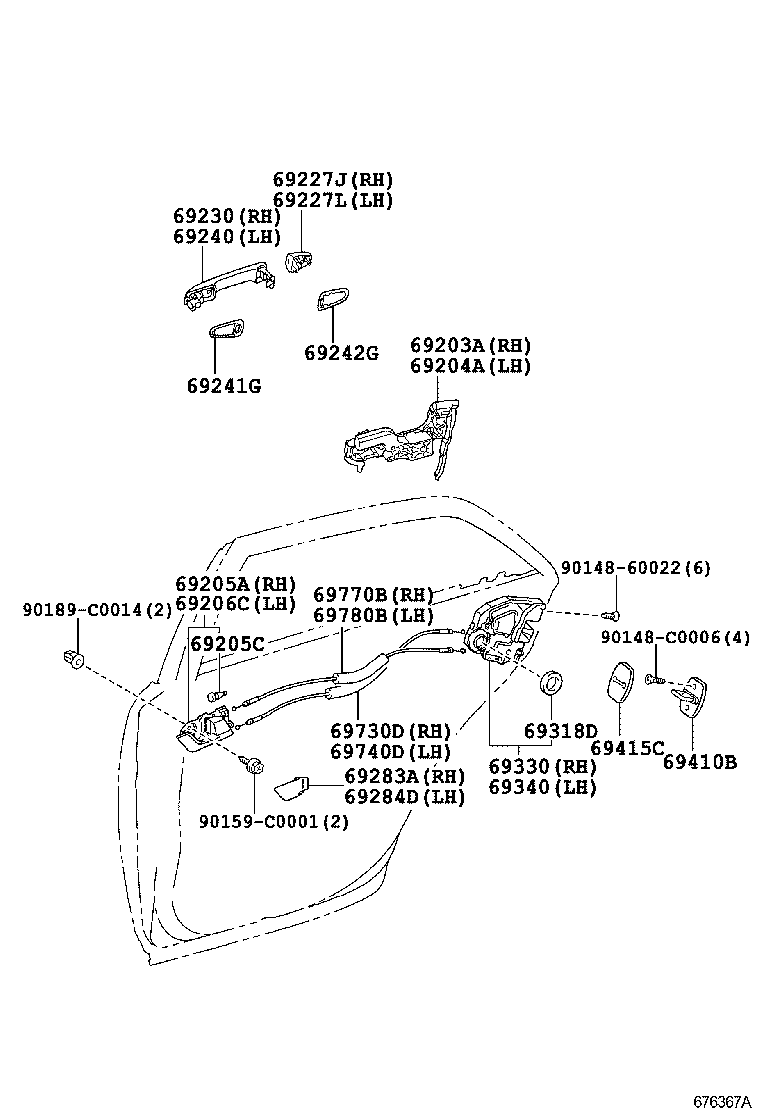

Click highlighted areas on diagram

diagram 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69240 69241G 69242G 69283A 69284D 69318D 69330 69340 69410B 69415C 69730D 69740D 69770B 69780B 9014860022 90148C0006 90159C0001 90189C0014
Part # Description Qty Price
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0N030

GRS20#,UZS200

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0N030

GRS20#,UZS200

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0N010A0

GRS20#,UZS200

SHELL,TRIM0#

 1
69205-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

GRS20#,UZS200

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
69206-0N010A0

GRS20#,UZS200

SHELL,TRIM0#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69250-0N050B0

GRS20#,UZS200

SILVER ME.,1G7

 1
69250-0N050A0

GRS20#,UZS200

WHITE PEARL CS.,062

 1
69250-0N050J0

GRS20#,UZS200

DK.BLUE MC.,8S6

 1
69250-0N050B2

GRS20#

ICE TITANIUM M.M.,1H4

 1
69250-0N050C0

GRS20#,UZS200

BLACK,202

 1
69250-0N050D0

GRS20#,UZS200

BLACKISH RED MC.,3R0

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69250-0N050B0

GRS20#,UZS200

SILVER ME.,1G7

 1
69250-0N050J0

GRS20#,UZS200

DK.BLUE MC.,8S6

 1
69250-0N050C0

GRS20#,UZS200

BLACK,202

 1
69250-0N050D0

GRS20#,UZS200

BLACKISH RED MC.,3R0

 1
69250-0N050A0

GRS20#,UZS200

WHITE PEARL CS.,062

 1
69250-0N050B2

GRS20#

ICE TITANIUM M.M.,1H4

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-0N030B2

GRS20#

ICE TITANIUM M.M.,1H4

 1
69210-0N030J0

GRS20#,UZS200

DK.BLUE MC.,8S6

 1
69210-0N030C0

GRS20#,UZS200

BLACK,202

 1
69210-0N030D0

GRS20#,UZS200

BLACKISH RED MC.,3R0

 1
69210-0N030B0

GRS20#,UZS200

SILVER ME.,1G7

 1
69210-0N030A0

GRS20#,UZS200

WHITE PEARL CS.,062

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-0N030B0

GRS20#,UZS200

SILVER ME.,1G7

 1
69210-0N030A0

GRS20#,UZS200

WHITE PEARL CS.,062

 1
69210-0N030J0

GRS20#,UZS200

DK.BLUE MC.,8S6

 1
69210-0N030C0

GRS20#,UZS200

BLACK,202

 1
69210-0N030B2

GRS20#

ICE TITANIUM M.M.,1H4

 1
69210-0N030D0

GRS20#,UZS200

BLACKISH RED MC.,3R0

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-30110

GRS20#,UZS200

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-30090

GRS20#,UZS200

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-0N020E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
69283-0N020A0

GRS20#,UZS200

SHELL,TRIM0#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-0N020A0

GRS20#,UZS200

SHELL,TRIM0#

 1
69284-0N020E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GRS20#,UZS200

 2
69330 - LOCK ASSY, REAR DOOR, RH
69050-0N020

GRS20#,UZS200

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-0N020

GRS20#,UZS200

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0N010

GRS20#,UZS200

 2
69410-0N020

GRS20#,UZS200

 2
69415C - COVER, DOOR LOCK STRIKER, REAR
69415-33010

GRS20#,UZS200

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0N020

GRS20#,UZS200

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0N020

GRS20#,UZS200

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0N020

GRS20#,UZS200

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-0N020

GRS20#,UZS200

 1
Common parts
90148-60022
90148-C0006
90159-C0001
90189-C0014
