GRS208L-DETBKC (2009)

Toyota Crown (China)

Production Dec 2009 - Jul 2012
Engine 5GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )GRS20#..ROY,ROYEX,ROYVP

Click highlighted areas on diagram

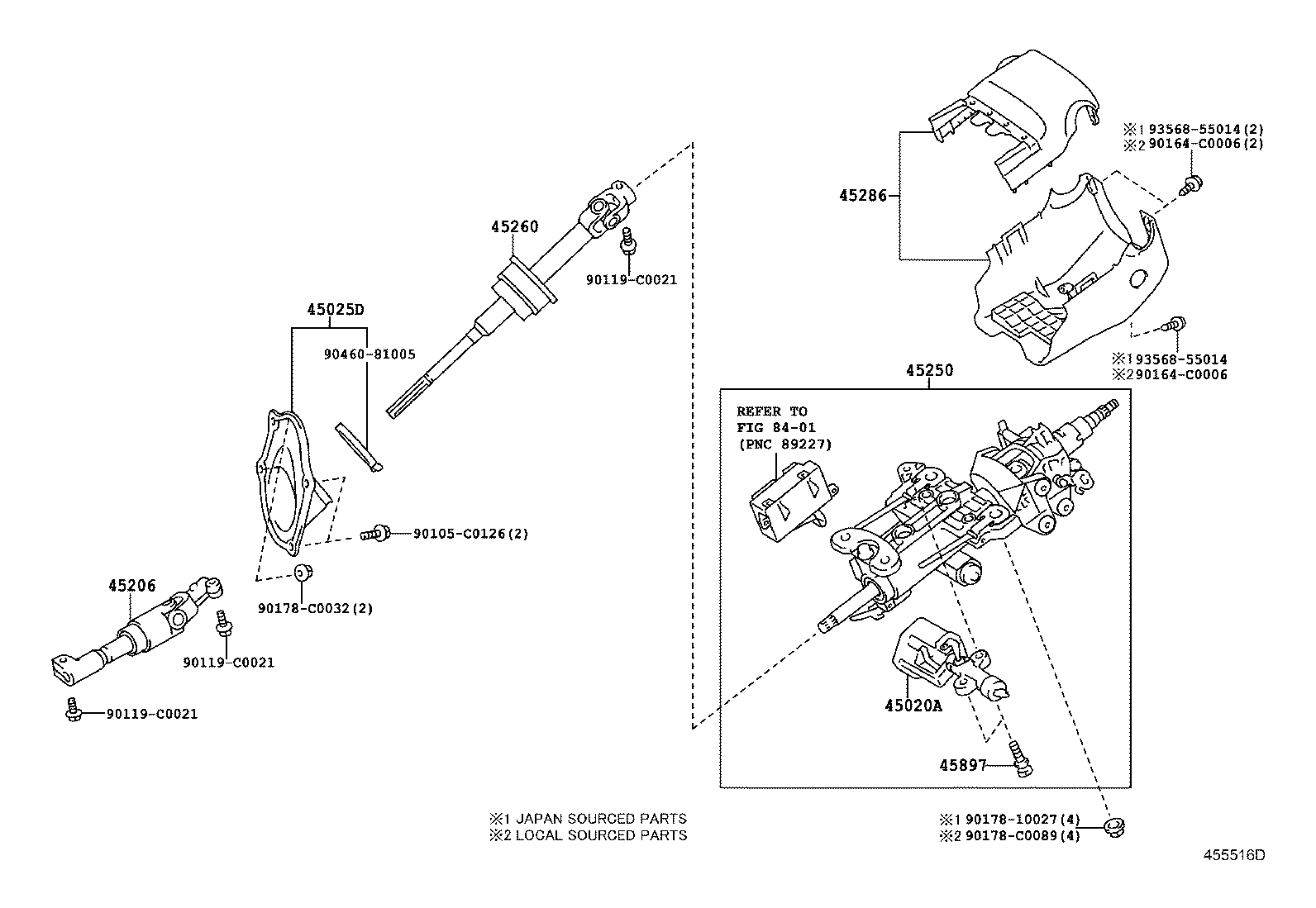

diagram 45020A 45025D 45206 45250 45260 45286 45897 8401 90105C0126 90119C0021 90119C0021 90119C0021 90164C0006 90164C0006 9017810027 90178C0032 90178C0089 9046081005 9356855014 9356855014
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-0N040

GRS208

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0N010

GRS20#

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-0N030

GRS20#,UZS200

 1
45250 - COLUMN ASSY, STEERING
45250-0N040

GRS208

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0N020

GRS20#

 1
45286 - COVER, STEERING COLUMN
45286-0N902C0

GRS208

BLACK,TRIM4#

 1
45286-0N902E1

GRS208

DK. BROWN,TRIM0#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GRS208

 1
Common parts
90105-C0126
90119-C0021
90164-C0006
90178-10027
90178-C0032
90178-C0089
90460-81005
93568-55014
Linked diagrams
8401

(0912- )ROYAL

Click highlighted areas on diagram

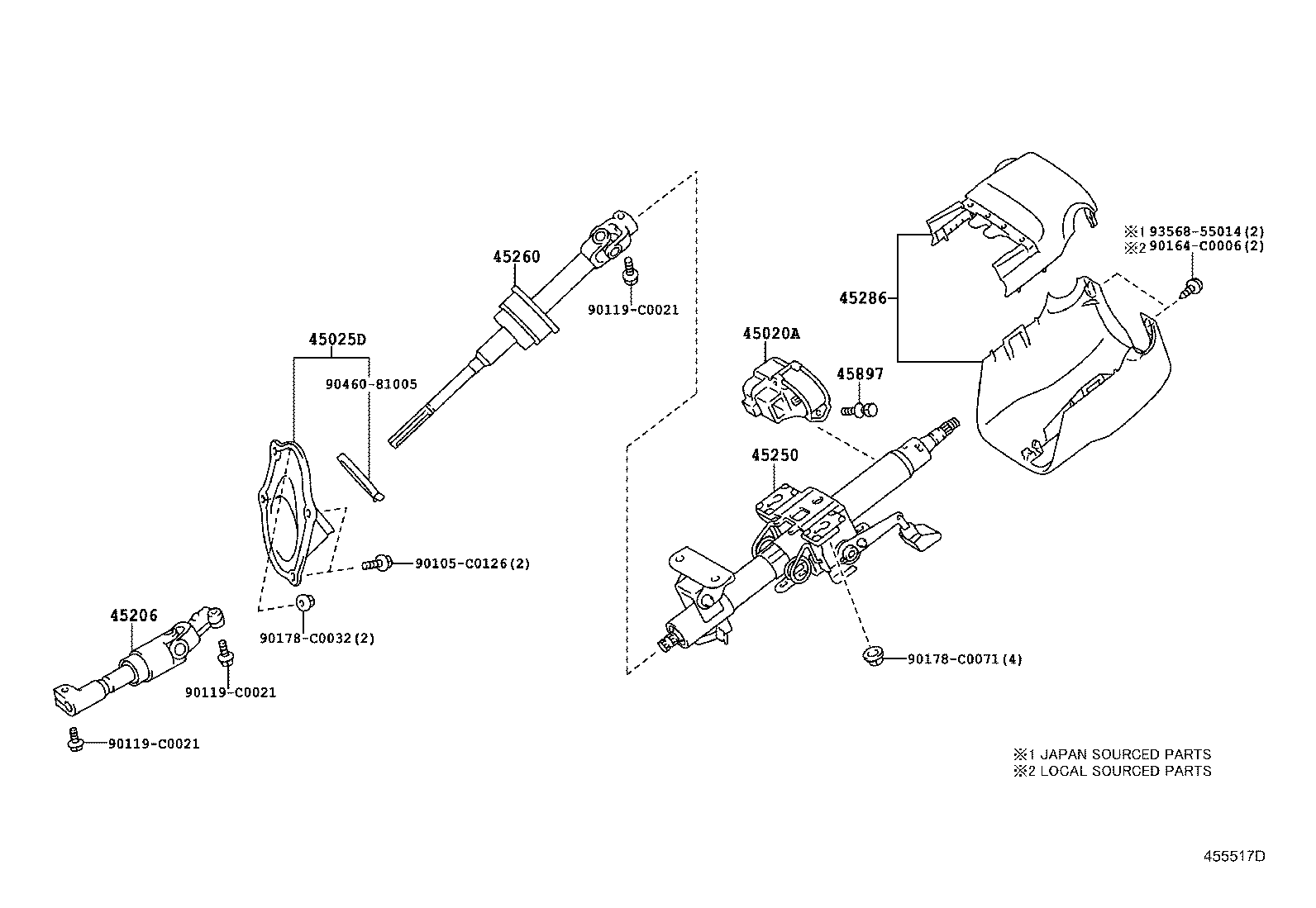

diagram 45020A 45025D 45206 45250 45260 45286 45897 90105C0126 90119C0021 90119C0021 90119C0021 90164C0006 90178C0032 90178C0071 9046081005 9356855014
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-0N040

GRS208

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0N010

GRS20#

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-0N030

GRS20#,UZS200

 1
45250 - COLUMN ASSY, STEERING
45250-0N040

GRS208

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0N020

GRS20#

 1
45286 - COVER, STEERING COLUMN
45286-0N902C0

GRS208

BLACK,TRIM4#

 1
45286-0N902E1

GRS208

DK. BROWN,TRIM0#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GRS208

 1
Common parts
90105-C0126
90119-C0021
90164-C0006
90178-C0032
90178-C0071
90460-81005
93568-55014
