GRS202L-DETUKC (2012)
Toyota Crown (China)
Production
Jul 2012
-
Jan 2015
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1207- )

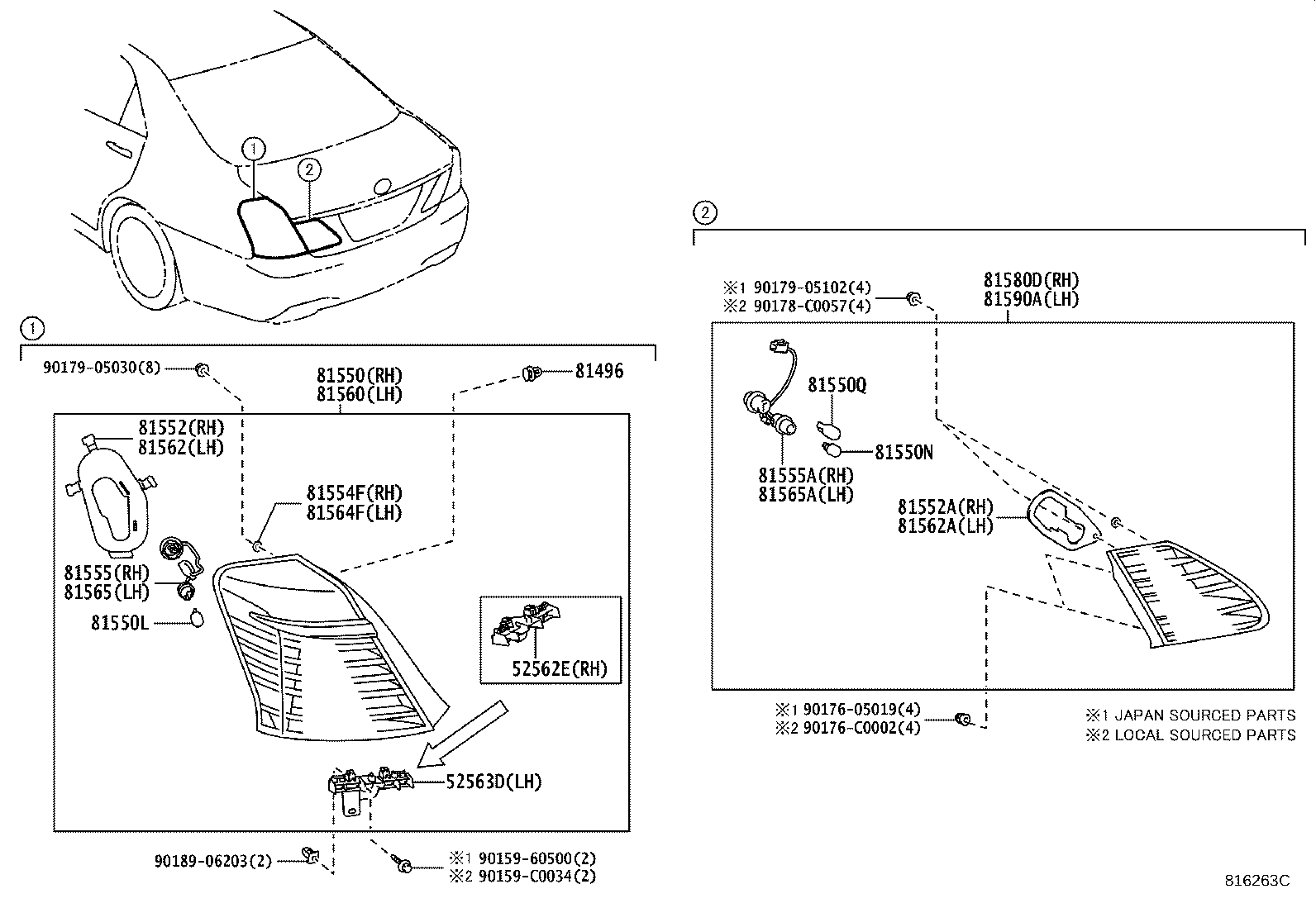

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-0N030 |
GRS20#,UZS200 |
1 | ||
| 52562-0N030 |
GRS20# |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-0N030 |
GRS20# |
1 | ||
| 52563-0N030 |
GRS20#,UZS200 |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 90467-C0019 |
GRS20# |
2 | ||
| 81496-60010 |
GRS20#,UZS200 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0N050 |
GRS20# |
1 | ||
| 81550-0N040 |
GRS20#,UZS200 |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
GRS20# |
2 | ||
| 90981-15011 |
GRS20#,UZS200 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GRS20# |
2 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-13043 |
GRS20# |
2 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-0N050 |
GRS20# |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-0N040 |
GRS20#,UZS200 |
1 | ||
| 81674-0N020 |
GRS20# |
1 | ||
| 81554F - GASKET, REAR COMBINATION LAMP, NO.2 RH | ||||
| 81562-0N040 |
GRS20#,UZS200 |
4 | ||
| 81562-0N030 |
GRS20# |
4 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0N040 |
GRS20#,UZS200 |
1 | ||
| 81555-0N050 |
GRS20# |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81675-0N020 |
GRS20# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0N050 |
GRS20# |
1 | ||
| 81560-0N040 |
GRS20#,UZS200 |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-0N050 |
GRS20# |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81684-0N020 |
GRS20# |
1 | ||
| 81552-0N040 |
GRS20#,UZS200 |
1 | ||
| 81564F - GASKET, REAR COMBINATION LAMP, NO.2 LH | ||||
| 81562-0N040 |
GRS20#,UZS200 |
4 | ||
| 81562-0N030 |
GRS20# |
4 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-0N050 |
GRS20# |
1 | ||
| 81565-0N040 |
GRS20#,UZS200 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81675-0N020 |
GRS20# |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-0N020 |
GRS20# |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0N020 |
GRS20# |
1 | ||
| Common parts | ||||
| 90159-60500 | ||||
| 90159-C0034 | ||||
| 90176-05019 | ||||
| 90176-C0002 | ||||
| 90178-C0057 | ||||
| 90179-05030 | ||||
| 90179-05102 | ||||
| 90189-06203 | ||||
