GRS202L-DETUKC (2012)
Toyota Crown (China)

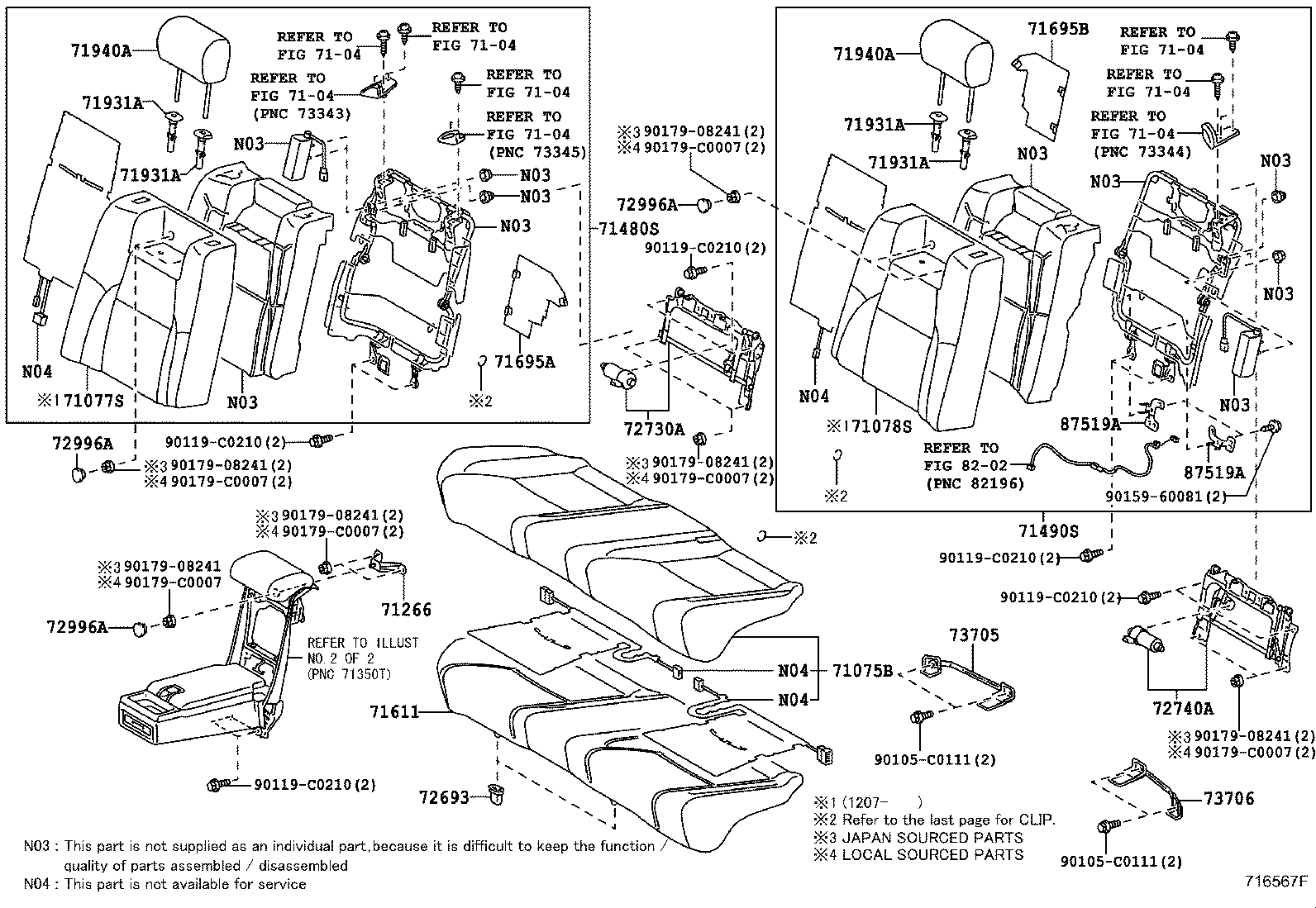

ILLUST NO. 1 OF 2(0912- )ROY,ROYAL,ROYEX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0N080E1 |
GRS202,UZS200 DK.BROWN,TRIM4# |
1 | ||
| 71075-0N080A1 |
GRS202,UZS200 SHELL,TRIM0# |
1 | ||
| 71075-0N080E2 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71075-0N080A3 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-0N090E1 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 71077-0N090A1 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 71077-0N090A3 |
GRS20#..ROY,ROYEX SHELL,TRIM00 |
1 | ||
| 71077-0N090A2 |
GRS20#..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 71077-0N090E2 |
GRS20#..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 71077-0N090E3 |
GRS20#..ROY,ROYEX DK.BROWN,TRIM40 |
1 | ||
| 71077-0N090A3 |
GRS20#..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 71077-0N090E3 |
GRS20#..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
GRS202..ROYVP |
1 | ||
| 71266-30130 |
GRS20#..ROY,ROYAL,ROYEX |
2 | ||
| 71266-30130 |
UZS200;GRS202..ROYVP |
1 | ||
| 71266-30130 |
GRS20#..ROY,ROYAL,ROYEX |
2 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-0N130A3 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 71480-0N130E3 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 71480-0N090A2 |
GRS202..ROY SHELL,TRIM00 |
1 | ||
| 71480-0N090E2 |
GRS202..ROY DK.BROWN,TRIM40 |
1 | ||
| 71480-0N090A3 |
GRS202..ROY SHELL/BLACK,TRIM0# |
1 | ||
| 71480-0N090E3 |
GRS202..ROY DK.BROWN/BLACK,TRIM4# |
1 | ||
| 71480-0N090A3 |
GRS202..ROY SHELL/BLACK,TRIM00 |
1 | ||
| 71480-0N090E3 |
GRS202..ROY DK.BROWN/BLACK,TRIM40 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0N020 |
GRS202,UZS200 |
1 | ||
| 71503-0N020 |
GRS20#..ROY,ROYEX,ROYVP |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0N050A0 |
GRS202,UZS200 SHELL,TRIM0# |
2 | ||
| 71940-0N050A1 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
2 | ||
| 71940-0N050E0 |
GRS202,UZS200 DK.BROWN,TRIM4# |
2 | ||
| 71940-0N050E1 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0N050A0 |
GRS202,UZS200 SHELL,TRIM0# |
2 | ||
| 71940-0N050A1 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
2 | ||
| 71940-0N050E0 |
GRS202,UZS200 DK.BROWN,TRIM4# |
2 | ||
| 71940-0N050E1 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS202..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS202..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
UZS200;GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010E0 |
UZS200;GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010A0 |
UZS200;GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
UZS200;GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010E0 |
GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010A0 |
GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS202..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS202..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
UZS200;GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010E0 |
UZS200;GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010A0 |
UZS200;GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
UZS200;GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010E0 |
GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010A0 |
GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0N060A0 |
GRS202,UZS200 SHELL,TRIM0# |
1 | ||
| 71960-0N060A1 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
1 | ||
| 71960-0N060E1 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71960-0N060E0 |
GRS202,UZS200 DK.BROWN,TRIM4# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
GRS20#,UZS200 |
2 | ||
| 72693-12080 |
GRS20# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040E0 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040A1 |
GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040E0 |
GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
GRS20#,UZS200 |
1 | ||
| 73705-30030 |
GRS20# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
GRS20#,UZS200 |
1 | ||
| 73706-30030 |
GRS20# |
1 | ||
| Common parts | ||||
| 90105-C0111 | ||||
| 90119-C0210 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 90179-C0007 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(0912- )GRS20#..ROY,ROYAL,ROYEX
CENTER ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30060 |
GRS20# |
1 | ||
| 71281-30060 |
GRS20#,UZS200 |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-0N070A1 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72805-0N080A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72805-0N080E2 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72805-0N070E1 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 72805-0N080E1 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72805-0N070A2 |
GRS20#..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72805-0N070E2 |
GRS20#..ROY,ROYEX DK. BROWN,TRIM4# |
1 | ||
| 72805-0N080A2 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30090E1 |
GRS202,UZS200 DK. BROWN,TRIM4# |
1 | ||
| 72806-30090E1 |
GRS20#..ROY,ROYEX,ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72806-30090A1 |
GRS20#,UZS200 SHELL,TRIM0# |
1 | ||
| 72806-30090A1 |
GRS20# SHELL,TRIM0# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-30030A1 |
GRS20#,UZS200 SHELL,TRIM0# |
1 | ||
| 72809-30030A1 |
GRS20# SHELL,TRIM0# |
1 | ||
| 72809-30030E0 |
GRS202,UZS200 DK. BROWN,TRIM4# |
1 | ||
| 72809-30030E0 |
GRS20#..ROY,ROYEX,ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0N090E3 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 72830-0N090A3 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72830-0N100A2 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72830-0N100E2 |
UZS200;GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 72830-0N100A5 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72830-0N100E5 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72830-0N120A2 |
GRS202..ROY SHELL,TRIM00 |
1 | ||
| 72830-0N120E2 |
GRS202..ROY DK. BROWN,TRIM40 |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-0N080A2 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72860-0N090A3 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72860-0N110E2 |
GRS202..ROY DK. BROWN,TRIM40 |
1 | ||
| 72860-0N080E2 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 72860-0N090A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72860-0N090E3 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72860-0N090E1 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72860-0N110A2 |
GRS202..ROY SHELL,TRIM00 |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-0N020E1 |
GRS202..ROY,ROYEX DK. BROWN,TRIM4# |
1 | ||
| 72868-0N020A4 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
1 | ||
| 72868-0N020A4 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
1 | ||
| 72868-0N020E1 |
GRS20#..ROY,ROYEX DK. BROWN,TRIM4# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-0N020A4 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
1 | ||
| 72869-0N020E1 |
GRS202..ROY,ROYEX DK. BROWN,TRIM4# |
1 | ||
| 72869-0N020A4 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
1 | ||
| 72869-0N020E1 |
GRS20#..ROY,ROYEX DK. BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90161-26007 | ||||
| 90168-40059 | ||||
| 90168-40108 | ||||
| 90541-04019 | ||||
| 90950-01851C0 | ||||
| 93530-54014 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 2(0912- )ROYVP ; (0912- )UZS200
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0N080E1 |
GRS202,UZS200 DK.BROWN,TRIM4# |
1 | ||
| 71075-0N080A1 |
GRS202,UZS200 SHELL,TRIM0# |
1 | ||
| 71075-0N080E2 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71075-0N080A3 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0N100 |
UZS200;GRS202..ROYVP |
1 | ||
| 71077-0N100A2 |
GRS202..ROYVP SHELL,TRIM00 |
1 | ||
| 71077-0N100E2 |
GRS202..ROYVP DK.BROWN,TRIM40 |
1 | ||
| 71077-0N100E2 |
GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71077-0N100A2 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0N020A2 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71078-0N020A2 |
GRS202..ROYVP SHELL,TRIM00 |
1 | ||
| 71078-0N020 |
UZS200;GRS202..ROYVP |
1 | ||
| 71078-0N020E2 |
GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71078-0N020E2 |
GRS202..ROYVP DK.BROWN,TRIM40 |
1 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
GRS202..ROYVP |
1 | ||
| 71266-30130 |
GRS20#..ROY,ROYAL,ROYEX |
2 | ||
| 71266-30130 |
UZS200;GRS202..ROYVP |
1 | ||
| 71266-30130 |
GRS20#..ROY,ROYAL,ROYEX |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-0N140E1 |
UZS200;GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71480-0N140E3 |
GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71480-0N140A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71480-0N140A3 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71480-0N140E3 |
GRS202..ROYVP DK.BROWN,TRIM40 |
1 | ||
| 71480-0N140A3 |
GRS202..ROYVP SHELL,TRIM00 |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-0N050E1 |
UZS200;GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71490-0N050A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71490-0N050A3 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71490-0N050A3 |
GRS202..ROYVP SHELL,TRIM00 |
1 | ||
| 71490-0N050E3 |
GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71490-0N050E3 |
GRS202..ROYVP DK.BROWN,TRIM40 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-0N020 |
GRS202,UZS200 |
1 | ||
| 71503-0N020 |
GRS20#..ROY,ROYEX,ROYVP |
1 | ||
| 71695A - PROTECTOR, REAR SEAT, NO.1 RH | ||||
| 71695-0N010 |
GRS202..ROYVP |
1 | ||
| 71695-0N010 |
UZS200;GRS202..ROYVP |
1 | ||
| 71695B - PROTECTOR, REAR SEAT, NO.1 LH | ||||
| 71695-0N020 |
UZS200;GRS202..ROYVP |
1 | ||
| 71695-0N020 |
GRS202..ROYVP |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-02120A0 |
GRS20#,UZS200 W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360E1 |
GRS202,UZS200 W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360A0 |
GRS20# W(LOCK),SHELL,TRIM0# |
2 | ||
| 71930-02360A0 |
GRS20#,UZS200 W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS202,UZS200 W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX,ROYVP W(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71931-02120A0 |
GRS20# W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX,ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0N050A0 |
GRS202,UZS200 SHELL,TRIM0# |
2 | ||
| 71940-0N050A1 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
2 | ||
| 71940-0N050E0 |
GRS202,UZS200 DK.BROWN,TRIM4# |
2 | ||
| 71940-0N050E1 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0N050A0 |
GRS202,UZS200 SHELL,TRIM0# |
2 | ||
| 71940-0N050A1 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
2 | ||
| 71940-0N050E0 |
GRS202,UZS200 DK.BROWN,TRIM4# |
2 | ||
| 71940-0N050E1 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
GRS20#,UZS200 |
2 | ||
| 72693-12080 |
GRS20# |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-0N020 |
GRS202..ROYVP |
1 | ||
| 72730-0N020 |
UZS200;GRS202..ROYVP |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-0N020 |
UZS200;GRS202..ROYVP |
1 | ||
| 72740-0N020 |
GRS202..ROYVP |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040E0 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040A1 |
GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040E0 |
GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040E0 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040A1 |
GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040E0 |
GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040A1 |
GRS20#..ROY,ROYAL,ROYEX SHELL,TRIM0# |
2 | ||
| 72996-0N040E0 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040E0 |
GRS20#..ROY,ROYAL,ROYEX DK. BROWN,TRIM4# |
2 | ||
| 72996-0N040A1 |
GRS202..ROYVP SHELL,TRIM0# |
5 | ||
| 72996-0N040E0 |
GRS202..ROYVP DK. BROWN,TRIM4# |
5 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
GRS20#,UZS200 |
1 | ||
| 73705-30030 |
GRS20# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
GRS20#,UZS200 |
1 | ||
| 73706-30030 |
GRS20# |
1 | ||
| 87519A - BRACKET, SEAT HEATER CONNECTOR CLAMP | ||||
| 87519-30020 |
UZS200;GRS202..ROYVP |
2 | ||
| 87519-30020 |
GRS202..ROYVP |
2 | ||
| 87519A - BRACKET, SEAT HEATER CONNECTOR CLAMP | ||||
| 87519-30020 |
UZS200;GRS202..ROYVP |
2 | ||
| 87519-30020 |
GRS202..ROYVP |
2 | ||
| Common parts | ||||
| 90105-C0111 | ||||
| 90119-C0210 | ||||
| 90159-60081 | ||||
| 90179-08241 | ||||
| 90179-C0007 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(0912- )ROYVP ; (0912- )UZS200
CENTER ARMREST & CENTER FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30060 |
GRS20# |
1 | ||
| 71281-30060 |
GRS20#,UZS200 |
1 | ||
| 71350T - BACK ASSY, CENTER SEAT | ||||
| 71350-0N180E2 |
UZS200;GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71350-0N180A2 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71350-0N180E6 |
GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71350-0N180A6 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS202..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS202..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
UZS200;GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010E0 |
UZS200;GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010A0 |
UZS200;GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
UZS200;GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010E0 |
GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010A0 |
GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS202..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS202..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
UZS200;GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71930-02360E1 |
GRS20#..ROY,ROYEX W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010E0 |
UZS200;GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71931-02120A0 |
GRS20#..ROY,ROYAL,ROYEX W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010A0 |
UZS200;GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
UZS200;GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71956-30030A0 |
GRS202..ROYVP W/O(LOCK),SHELL,TRIM0# |
1 | ||
| 71955-30010E0 |
GRS202..ROYVP W(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71955-30010A0 |
GRS202..ROYVP W(LOCK),SHELL,TRIM0# |
1 | ||
| 71956-30030E0 |
GRS202..ROYVP W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71931-02120E1 |
GRS20#..ROY,ROYEX W/O(LOCK),DK. BROWN,TRIM4# |
1 | ||
| 71930-02360A0 |
GRS20#..ROY,ROYAL,ROYEX W(LOCK),SHELL,TRIM0# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0N060A0 |
GRS202,UZS200 SHELL,TRIM0# |
1 | ||
| 71960-0N060A1 |
GRS20#..ROY,ROYEX,ROYVP SHELL,TRIM0# |
1 | ||
| 71960-0N060E1 |
GRS20#..ROY,ROYEX,ROYVP DK.BROWN,TRIM4# |
1 | ||
| 71960-0N060E0 |
GRS202,UZS200 DK.BROWN,TRIM4# |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-0N070A1 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72805-0N080A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72805-0N080E2 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72805-0N070E1 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 72805-0N080E1 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72805-0N070A2 |
GRS20#..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72805-0N070E2 |
GRS20#..ROY,ROYEX DK. BROWN,TRIM4# |
1 | ||
| 72805-0N080A2 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30090E1 |
GRS202,UZS200 DK. BROWN,TRIM4# |
1 | ||
| 72806-30090E1 |
GRS20#..ROY,ROYEX,ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72806-30090A1 |
GRS20#,UZS200 SHELL,TRIM0# |
1 | ||
| 72806-30090A1 |
GRS20# SHELL,TRIM0# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-30030A1 |
GRS20#,UZS200 SHELL,TRIM0# |
1 | ||
| 72809-30030A1 |
GRS20# SHELL,TRIM0# |
1 | ||
| 72809-30030E0 |
GRS202,UZS200 DK. BROWN,TRIM4# |
1 | ||
| 72809-30030E0 |
GRS20#..ROY,ROYEX,ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0N090E3 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 72830-0N090A3 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72830-0N100A2 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72830-0N100E2 |
UZS200;GRS202..ROYVP DK.BROWN,TRIM4# |
1 | ||
| 72830-0N100A5 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72830-0N100E5 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72830-0N120A2 |
GRS202..ROY SHELL,TRIM00 |
1 | ||
| 72830-0N120E2 |
GRS202..ROY DK. BROWN,TRIM40 |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-0N080A2 |
GRS202..ROY,ROYEX SHELL,TRIM0# |
1 | ||
| 72860-0N090A3 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72860-0N110E2 |
GRS202..ROY DK. BROWN,TRIM40 |
1 | ||
| 72860-0N080E2 |
GRS202..ROY,ROYEX DK.BROWN,TRIM4# |
1 | ||
| 72860-0N090A1 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72860-0N090E3 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72860-0N090E1 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72860-0N110A2 |
GRS202..ROY SHELL,TRIM00 |
1 | ||
| 72861 - TRIM, CENTER ARMREST CORNER | ||||
| 72861-0N010A2 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72861-0N010E0 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72861-0N010E0 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72861-0N010A2 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72978 - COVER, NO.2 CENTER SEAT BACK | ||||
| 72978-0N030E0 |
UZS200;GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72978-0N030A0 |
UZS200;GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| 72978-0N030E0 |
GRS202..ROYVP DK. BROWN,TRIM4# |
1 | ||
| 72978-0N030A0 |
GRS202..ROYVP SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90161-26007 | ||||
| 90168-40059 | ||||
| 90179-06168 | ||||
| 90541-04019 | ||||
| 93530-54014 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
(0912- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
