GRS202L-DETUKC (2012)

Toyota Crown (China)

Production Jul 2012 - Jan 2015
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )3GRFE,5GRFE

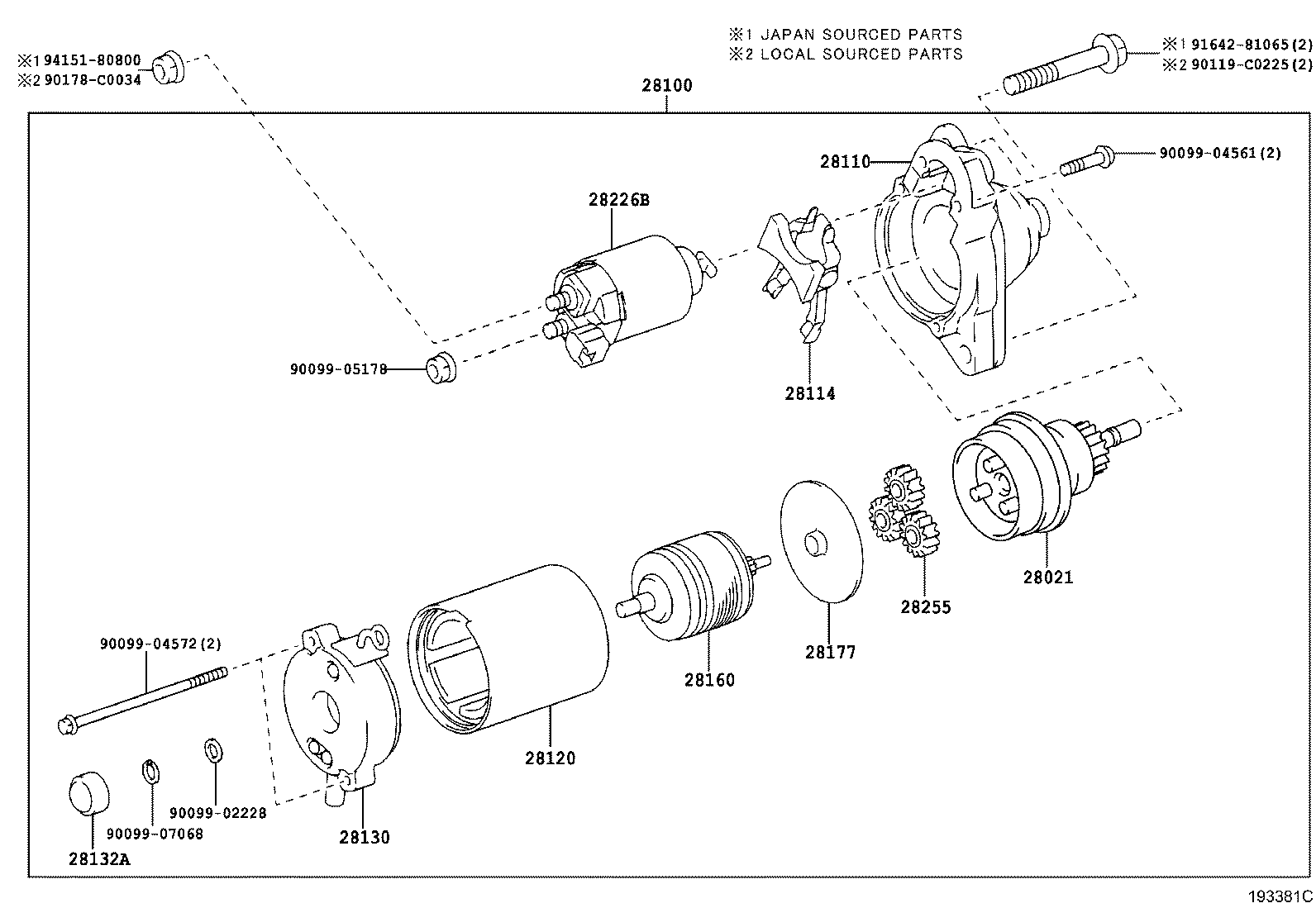

Click highlighted areas on diagram

12V 1.7KW

diagram 28021 28100 28110 28114 28120 28130 28132A 28160 28177 28226B 28255 9009902228 9009904561 9009904572 9009905178 9009907068 90119C0225 90178C0034 9164281065 9415180800
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0P010

3GRFE,5GRFE..GRS20#

 1
28021-21060

3GRFE,5GRFE..GRS20#

 1
28100 - STARTER ASSY
28100-0P011

3GRFE,5GRFE..GRS20#

12V 1.7KW

 1
28100-0P011

3GRFE,5GRFE..GRS20#

12V 1.7KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-31040

3GRFE,5GRFE..GRS20#

 1
28110-31040

3GRFE,5GRFE..GRS20#

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-21060

3GRFE,5GRFE..GRS20#

 1
28114-21060

3GRFE,5GRFE..GRS20#

 1
28120 - YOKE ASSY, STARTER
28120-0H120

3GRFE,5GRFE..GRS20#

 1
28120-0H120

3GRFE,5GRFE..GRS20#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0P010

3GRFE,5GRFE..GRS20#

 1
28130-0P010

3GRFE,5GRFE..GRS20#

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

3GRFE,5GRFE..GRS20#

 1
28132-28040

3GRFE,5GRFE..GRS20#

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

3GRFE,5GRFE..GRS20#

 1
28160-21060

3GRFE,5GRFE..GRS20#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

3GRFE,5GRFE..GRS20#

 1
28177-28040

3GRFE,5GRFE..GRS20#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-22061

3GRFE,5GRFE..GRS20#

 1
28226-22061

3GRFE,5GRFE..GRS20#

 1
28255 - GEAR, PLANET
28255-20020

3GRFE,5GRFE..GRS20#

 3
28255-20020

3GRFE,5GRFE..GRS20#

 3
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90119-C0225
90178-C0034
91642-81065
94151-80800
