GRS202L-DETQKC (2012)
Toyota Crown (China)
Production
Jul 2012
-
Jan 2015
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )

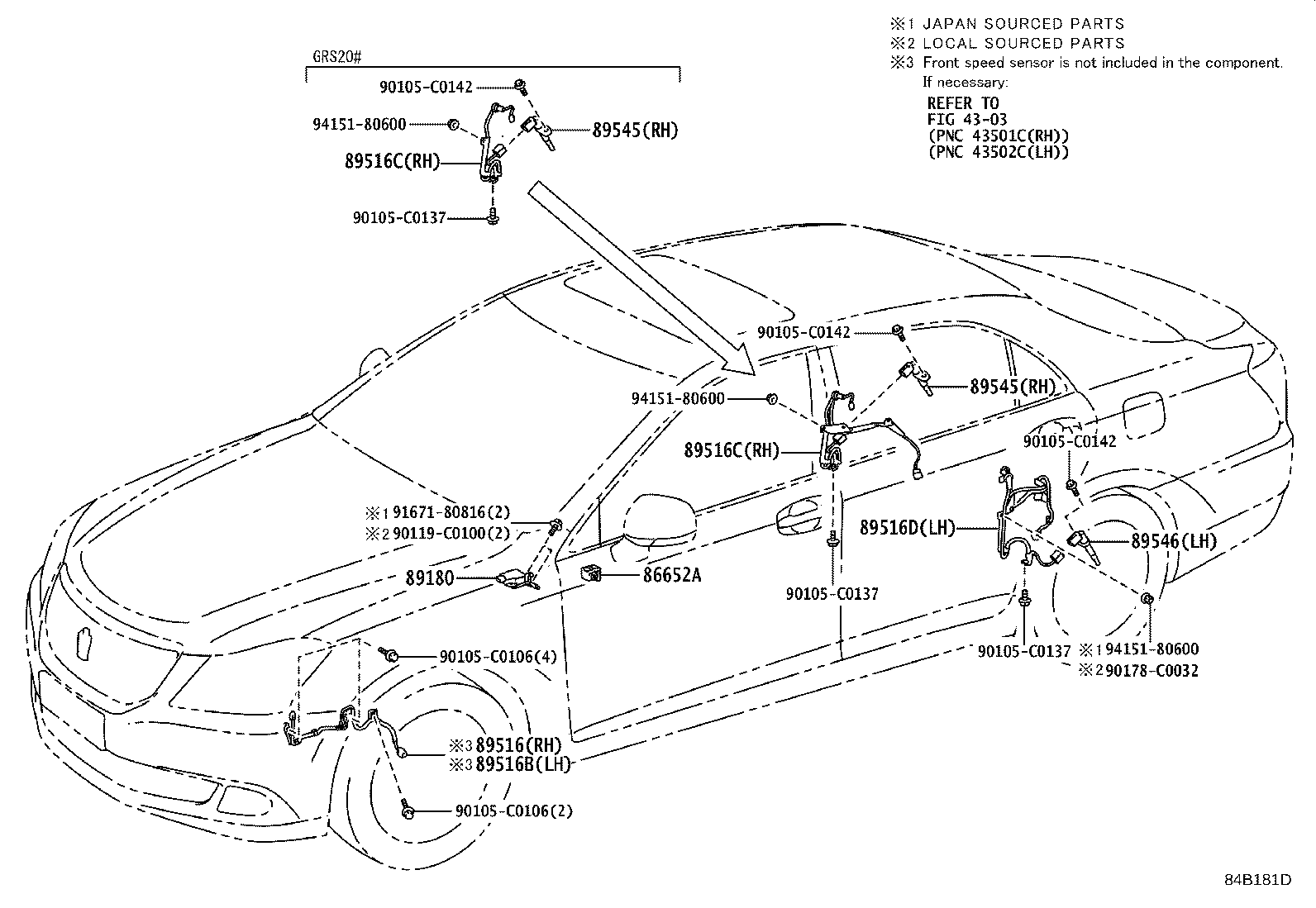

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
GRS20# |
1 | ||
| 86652-50010 |
GRS20#,UZS200 |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-30090 |
GRS20#,UZS200 |
1 | ||
| 89180-30090 |
GRS20# |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-0N010 |
GRS20# |
1 | ||
| 89516-0N010 |
GRS20#,UZS200 |
1 | ||
| 89516-0N011 |
GRS20# |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-0N020 |
GRS20# |
1 | ||
| 89516-0N020 |
GRS20#,UZS200 |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-0N030 |
GRS20# |
1 | ||
| 89516-0N030 |
GRS20# |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-0N030 |
GRS20# |
1 | ||
| 89516-0N030 |
GRS20# |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-0N040 |
GRS20#,UZS200 |
1 | ||
| 89516-0N040 |
GRS20# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GRS20# |
1 | ||
| 89545-30070 |
GRS20#,UZS200 |
1 | ||
| 89545-0N010 |
GRS20# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GRS20# |
1 | ||
| 89545-30070 |
GRS20#,UZS200 |
1 | ||
| 89545-0N010 |
GRS20# |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
GRS20# |
1 | ||
| 89546-0N010 |
GRS20# |
1 | ||
| 89546-30070 |
GRS20#,UZS200 |
1 | ||
| Common parts | ||||
| 90105-C0106 | ||||
| 90105-C0137 | ||||
| 90105-C0142 | ||||
| 90119-C0100 | ||||
| 90178-C0032 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4303 | ||||
