GRS202L-DETQKC (2012)

Toyota Crown (China)

Production Jul 2012 - Jan 2015
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0912- )

Click highlighted areas on diagram

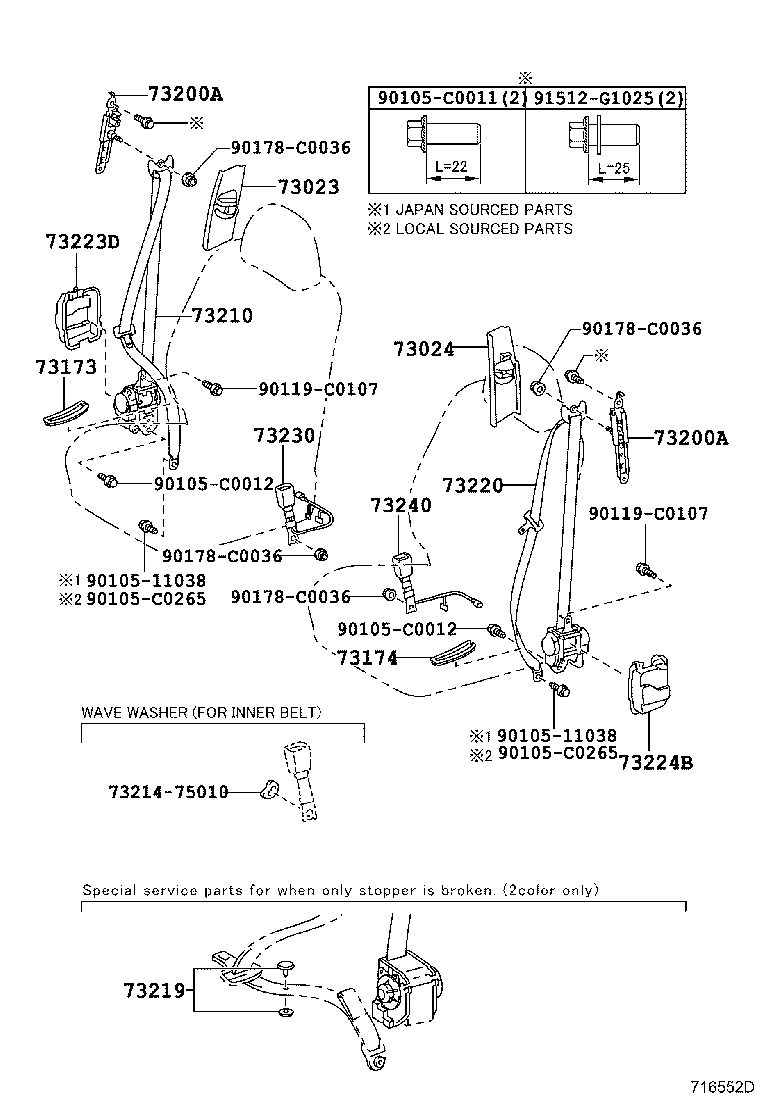

FRONT SEAT

diagram 73023 73024 73173 73174 73200A 73200A 73210 7321475010 73219 73220 73223D 73224B 73230 73240 9010511038 9010511038 90105C0011 90105C0012 90105C0012 90105C0265 90105C0265 90119C0107 90119C0107 90178C0036 90178C0036 90178C0036 90178C0036 91512G1025
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-53010B1

GRS20#,UZS200

GRAY,TRIM4#

 1
73023-53010A2

GRS20#

SHELL,TRIM0#

 1
73023-53010B1

GRS20#

GRAY,TRIM4#

 1
73023-53010A2

GRS20#,UZS200

SHELL,TRIM0#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-53010A2

GRS20#

SHELL,TRIM0#

 1
73024-53010B1

GRS20#,UZS200

GRAY,TRIM4#

 1
73024-53010A2

GRS20#,UZS200

SHELL,TRIM0#

 1
73024-53010B1

GRS20#

GRAY,TRIM4#

 1
73173 - COVER, FRONT SEAT BELT HOLE, RH
73173-0N010A1

GRS20#

SHELL,TRIM0#

 1
73173-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73173-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73173-0N010E0

GRS20#

DK. BROWN,TRIM4#

 1
73174 - COVER, FRONT SEAT BELT HOLE, LH
73174-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73174-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73174-0N010E0

GRS20#

DK. BROWN,TRIM4#

 1
73174-0N010A1

GRS20#

SHELL,TRIM0#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06080

GRS20#,UZS200

 2
73200-06080

GRS20#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06080

GRS20#,UZS200

 2
73200-06080

GRS20#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0N030B0

GRS20#..ROY,ROYAL,ROYEX

DK. BROWN,TRIM4#

 1
73210-0N040A0

GRS202..ROY

PRE-COLLISION PACKAGE,SHELL,TRIM0#

 1
73210-0N030A0

GRS20#..ROY,ROYAL,ROYEX

SHELL,TRIM0#

 1
73210-0N030A0

GRS20#..ROY,ROYAL,ROYEX

SHELL,TRIM0#

 1
73210-0N040B0

GRS202..ROY

PRE-COLLISION PACKAGE,DK. BROWN,TRIM4#

 1
73210-0N030B1

GRS20#..ROY,ROYAL,ROYEX

BLACK,TRIM4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRS20#,UZS200

BEIGE

 1
73219-33010

GRS20#

BLACK

 1
73219-33030

GRS20#

BEIGE

 1
73219-33010

GRS20#,UZS200

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0N030B0

GRS20#..ROY,ROYAL,ROYEX

DK. BROWN,TRIM4#

 1
73220-0N040A0

GRS202..ROY

PRE-COLLISION PACKAGE,SHELL,TRIM0#

 1
73220-0N030A0

GRS20#..ROY,ROYAL,ROYEX

SHELL,TRIM0#

 1
73220-0N030A0

GRS20#..ROY,ROYAL,ROYEX

SHELL,TRIM0#

 1
73220-0N040B0

GRS202..ROY

PRE-COLLISION PACKAGE,DK. BROWN,TRIM4#

 1
73220-0N030B1

GRS20#..ROY,ROYAL,ROYEX

BLACK,TRIM4#

 1
73223D - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-0N040

GRS20#,UZS200

 1
73223-0N040

GRS20#

 1
73224B - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-0N030

GRS20#,UZS200

 1
73224-0N030

GRS20#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0N070A0

GRS20#,UZS200

SHELL,TRIM0#

 1
73230-0N070E0

GRS20#

DK. BROWN,TRIM4#

 1
73230-0N070A0

GRS20#

SHELL,TRIM0#

 1
73230-0N070E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0N050E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73230-0N050A0

GRS20#,UZS200

SHELL,TRIM0#

 1
73230-0N050A0

GRS20#

SHELL,TRIM0#

 1
73230-0N050E0

GRS20#

DK. BROWN,TRIM4#

 1
Common parts
73214-75010
90105-11038
90105-C0011
90105-C0012
90105-C0265
90119-C0107
90178-C0036
91512-G1025

ILLUST NO. 2 OF 2(0912- )

Click highlighted areas on diagram

REAR SEAT

diagram 73119 73219 73223 73223 73343 73344 73345 73360 73370 73380 73390 73470B 73480 73717 73717 73719 73719 9010511041 90105C0001 90105C0001 90105C0001 90105C0009 90105C0009 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 9020510008 9356054014 9356054014 9356054014 9356056035 9356056035
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GRS20#

 1
73119-22010

GRS20#,UZS200

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRS20#,UZS200

BEIGE

 1
73219-33010

GRS20#

BLACK

 1
73219-33030

GRS20#

BEIGE

 1
73219-33010

GRS20#,UZS200

BLACK

 1
73223 - COVER, SEAT BELT RETRACTOR
73223-0N050

GRS20#

 2
73223-0N050

GRS20#,UZS200

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-0N050

GRS20#

 2
73223-0N050

GRS20#,UZS200

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73330-0N010E0

GRS20#

DK. BROWN,TRIM4#

 1
73330-0N010A1

GRS20#

SHELL,TRIM0#

 1
73330-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73330-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73340-0N010A1

GRS20#

SHELL,TRIM0#

 1
73340-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73340-0N010E0

GRS20#

DK. BROWN,TRIM4#

 1
73340-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73343-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73343-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73343-0N010A1

GRS20#

SHELL,TRIM0#

 1
73343-0N010E0

GRS20#

DK. BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-0N030C0

GRS20#

BLACK,TRIM4#

 1
73360-0N020C0

GRS20#,UZS200

DK.BROWN,TRIM4#

 1
73360-0N030A0

GRS20#

IVORY,TRIM0#

 1
73360-0N020A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-0N030C0

GRS20#

BLACK,TRIM4#

 1
73370-0N020C0

GRS20#,UZS200

DK.BROWN,TRIM4#

 1
73370-0N030A0

GRS20#

IVORY,TRIM0#

 1
73370-0N020A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-0N020A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73470-0N020C0

GRS20#,UZS200

DK.BROWN,TRIM4#

 1
73470-0N020A1

GRS20#

SHELL,TRIM0#

 1
73470-0N020C1

GRS20#

DK. BROWN,TRIM4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0N020E1

GRS20#

DK. BROWN,TRIM4#

 1
73480-0N020A1

GRS20#,UZS200

SHELL,TRIM0#

 1
73480-0N020A1

GRS20#

SHELL,TRIM0#

 1
73480-0N020E1

GRS20#,UZS200

DK. BROWN,TRIM4#

 1
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 2
73717-0N010E0

GRS20#

DK. BROWN,TRIM4#

 2
73717-0N010A1

GRS20#

SHELL,TRIM0#

 2
73717-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 2
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-0N010A1

GRS20#,UZS200

SHELL,TRIM0#

 2
73717-0N010E0

GRS20#

DK. BROWN,TRIM4#

 2
73717-0N010A1

GRS20#

SHELL,TRIM0#

 2
73717-0N010E0

GRS20#,UZS200

DK. BROWN,TRIM4#

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-0N010

GRS20#

 2
73719-0N010

GRS20#,UZS200

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-0N010

GRS20#

 2
73719-0N010

GRS20#,UZS200

 2
Common parts
90105-11041
90105-C0001
90105-C0009
90105-C0012
90205-10008
93560-54014
93560-56035
