GRS182L-DETUKC (2005)
Toyota Crown (China)

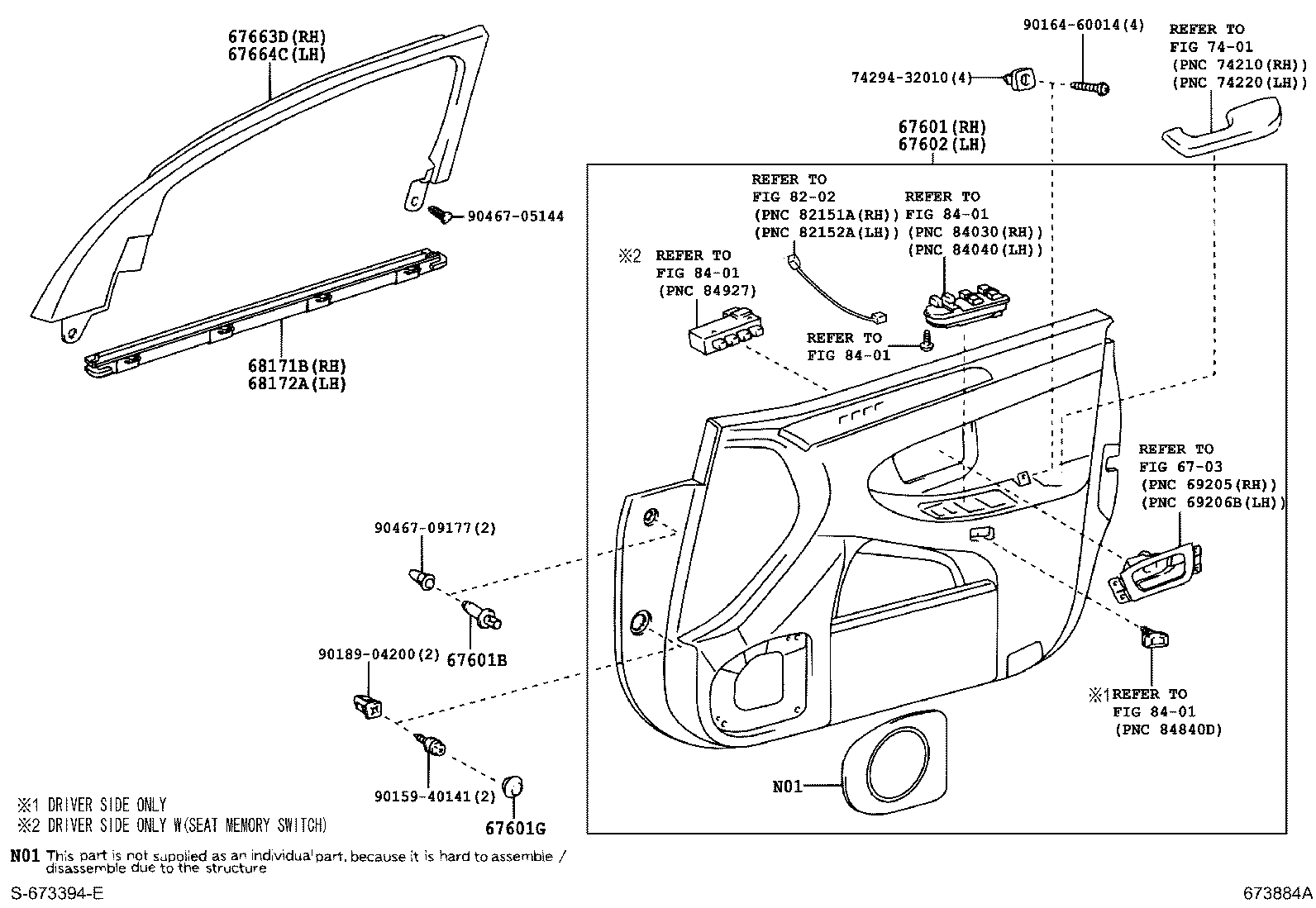

ILLUST NO. 1 OF 2(0502- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0N030A1 |
GRS182..ROYG NEW IVORY,TRIM0# |
1 | ||
| 67610-0N020A1 |
GRS182..ROY NEW IVORY,TRIM0# |
1 | ||
| 67610-0N020C1 |
GRS182..ROY BLACK,TRIM2# |
1 | ||
| 67610-0N021A0 |
GRS182..ROY NEW IVORY,TRIM0# |
1 | ||
| 67610-0N030C1 |
GRS182..ROYG BLACK,TRIM2# |
1 | ||
| 67610-0N031A0 |
GRS182..ROYG NEW IVORY,TRIM0# |
1 | ||
| 67610-0N021C0 |
GRS182..ROY BLACK,TRIM2# |
1 | ||
| 67610-0N031C0 |
GRS182..ROYG BLACK,TRIM2# |
1 | ||
| 67610-0N022C0 |
GRS182..ROY BLACK,TRIM20 |
1 | ||
| 67610-0N022A0 |
GRS18#..25ROY,ROY,ROYEX NEW IVORY,TRIM0# |
1 | ||
| 67610-0N032A0 |
GRS182..ROYG NEW IVORY,TRIM0# |
1 | ||
| 67610-0N032C0 |
GRS182..ROYG BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-C0001A0 |
GRS18# IVORY,TRIM0# |
2 | ||
| 90467-C0001C0 |
GRS18# BLACK,TRIM2# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-C1002C0 |
GRS18# BLACK,TRIM2# |
2 | ||
| 90950-C1002A0 |
GRS18# IVORY,TRIM0# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0N020C1 |
GRS182..ROY BLACK,TRIM2# |
1 | ||
| 67620-0N030C1 |
GRS182..ROYG BLACK,TRIM2# |
1 | ||
| 67620-0N020A1 |
GRS182..ROY NEW IVORY,TRIM0# |
1 | ||
| 67620-0N021C0 |
GRS182..ROY BLACK,TRIM2# |
1 | ||
| 67620-0N031C0 |
GRS182..ROYG BLACK,TRIM2# |
1 | ||
| 67620-0N021A0 |
GRS182..ROY NEW IVORY,TRIM0# |
1 | ||
| 67620-0N031A0 |
GRS182..ROYG NEW IVORY,TRIM0# |
1 | ||
| 67620-0N030A1 |
GRS182..ROYG NEW IVORY,TRIM0# |
1 | ||
| 67620-0N032C0 |
GRS182..ROYG BLACK,TRIM2# |
1 | ||
| 67620-0N021C0 |
GRS182..ROY BLACK,TRIM20 |
1 | ||
| 67620-0N032A0 |
GRS182..ROYG NEW IVORY,TRIM0# |
1 | ||
| 67620-0N022A0 |
GRS182..ROY NEW IVORY,TRIM0# |
1 | ||
| 67620-0N022C0 |
GRS182..ROY BLACK,TRIM20 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0N010 |
GRS18# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-0N010 |
GRS18# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0N010 |
GRS18# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0N010 |
GRS18# |
1 | ||
| Common parts | ||||
| 74294-32010 | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04200 | ||||
| 90467-05144 | ||||
| 90467-09177 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8202 | ||||
| 8401 | ||||

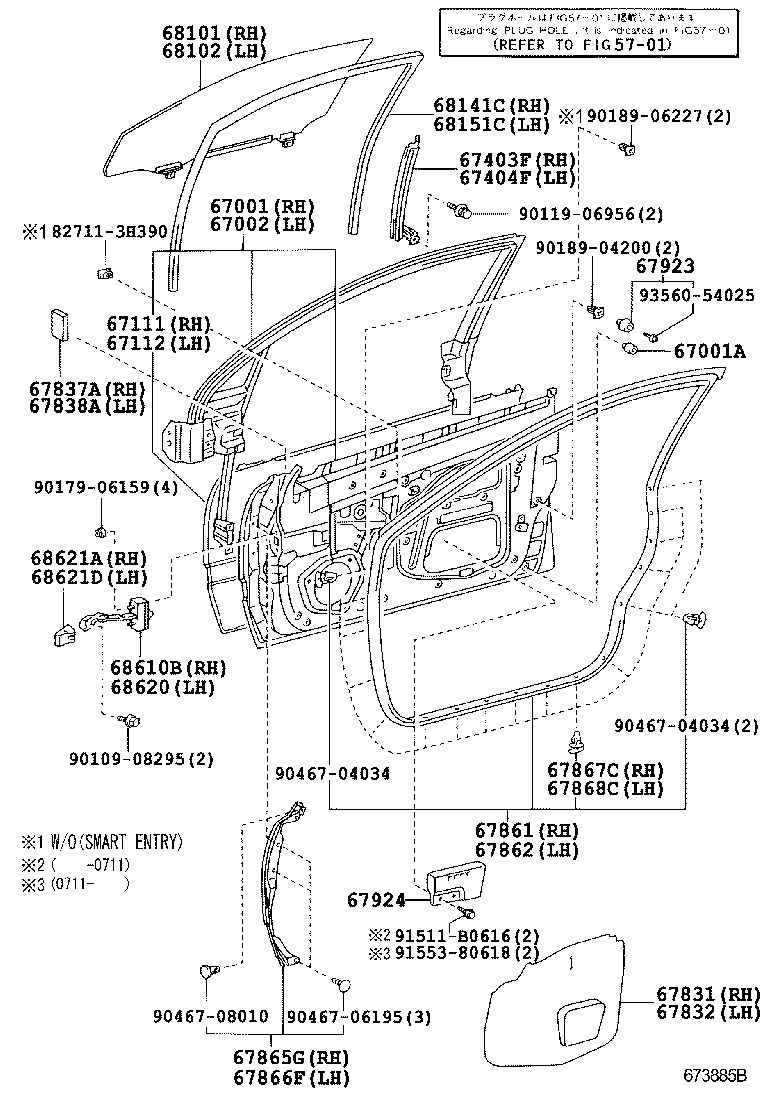

ILLUST NO. 2 OF 2(0502- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0N010 |
GRS18# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
GRS18# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0N010 |
GRS18# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0N010 |
GRS18# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0N010 |
GRS18# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0N010 |
GRS18# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0N010 |
GRS18# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0N010 |
GRS18# |
1 | ||
| 67831-30410 |
GRS18# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0N010 |
GRS18# |
1 | ||
| 67832-30260 |
GRS18# |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-0N010 |
GRS18# |
2 | ||
| 67837-51010 |
GRS182 |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-51010 |
GRS182 |
1 | ||
| 67837-0N010 |
GRS18# |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0N010 |
GRS18# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0N010 |
GRS18# |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-0N010 |
GRS18# |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-0N010 |
GRS18# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GRS18# |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GRS18# |
14 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
GRS18# |
2 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-30071 |
GRS18# LH |
1 | ||
| 67924-30070 |
GRS18# LH |
1 | ||
| 67923-30100 |
GRS18# RH |
1 | ||
| 67923-30101 |
GRS18# RH |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0N010 |
GRS18# *UVCT,T=5.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0N010 |
GRS18# *UVCT,T=5.0,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0N011 |
GRS18# |
1 | ||
| 68141-0N010 |
GRS182 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0N011 |
GRS18# |
1 | ||
| 68151-0N010 |
GRS182 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-0N010 |
GRS18# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-0N010 |
GRS18# |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-33010 |
GRS18# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-33010 |
GRS18# |
1 | ||
| Common parts | ||||
| 82711-3H390 | ||||
| 90109-08295 | ||||
| 90119-06956 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90189-06227 | ||||
| 90467-04034 | ||||
| 90467-06195 | ||||
| 90467-08010 | ||||
| 91511-B0616 | ||||
| 91553-80618 | ||||
| 93560-54025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
