GRS182L-DETUKC (2005)

Toyota Crown (China)

Production Feb 2005 - Nov 2009
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

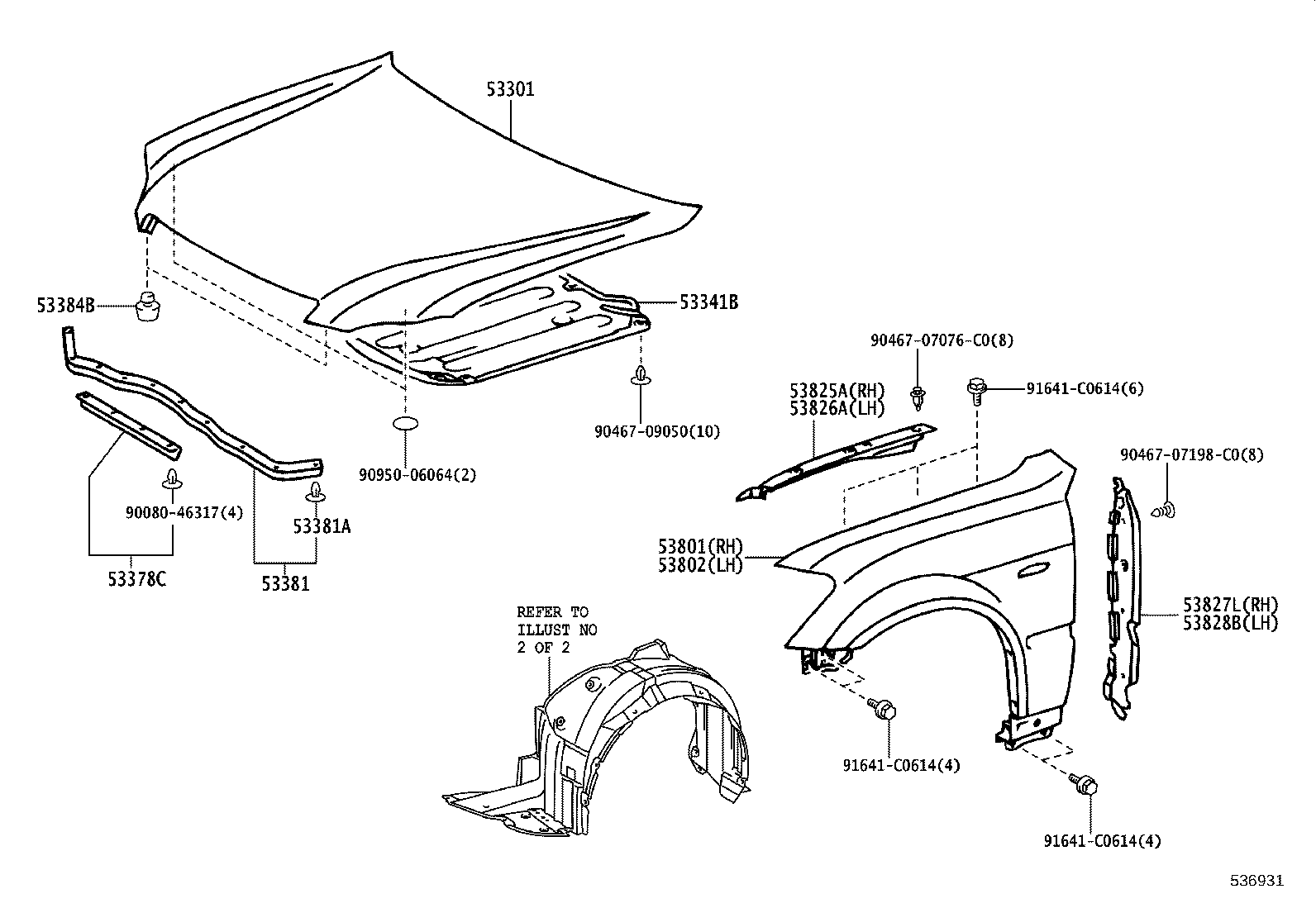

ILLUST NO. 1 OF 2(0502- )

Click highlighted areas on diagram

diagram 53301 53341B 53378C 53381 53381A 53384B 53801 53802 53825A 53826A 53827L 53828B 9008046317 9046707076C0 9046707198C0 9046709050 9095006064 91641C0614 91641C0614 91641C0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-0N010

GRS18#

 1
53341B - INSULATOR, HOOD
53341-0N010

GRS18#

 1
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-0N010

GRS18#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-0N011

GRS18#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

GRS18#

 10
53384B - CUSHION, HOOD, CENTER
53384-60050

GRS18#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-0N010

GRS18#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-0N010

GRS18#

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-0N010

GRS18#

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-0N010

GRS18#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-30030

GRS18#

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-30040

GRS18#

 1
Common parts
90080-46317
90467-07076C0
90467-07198C0
90467-09050
90950-06064
91641-C0614

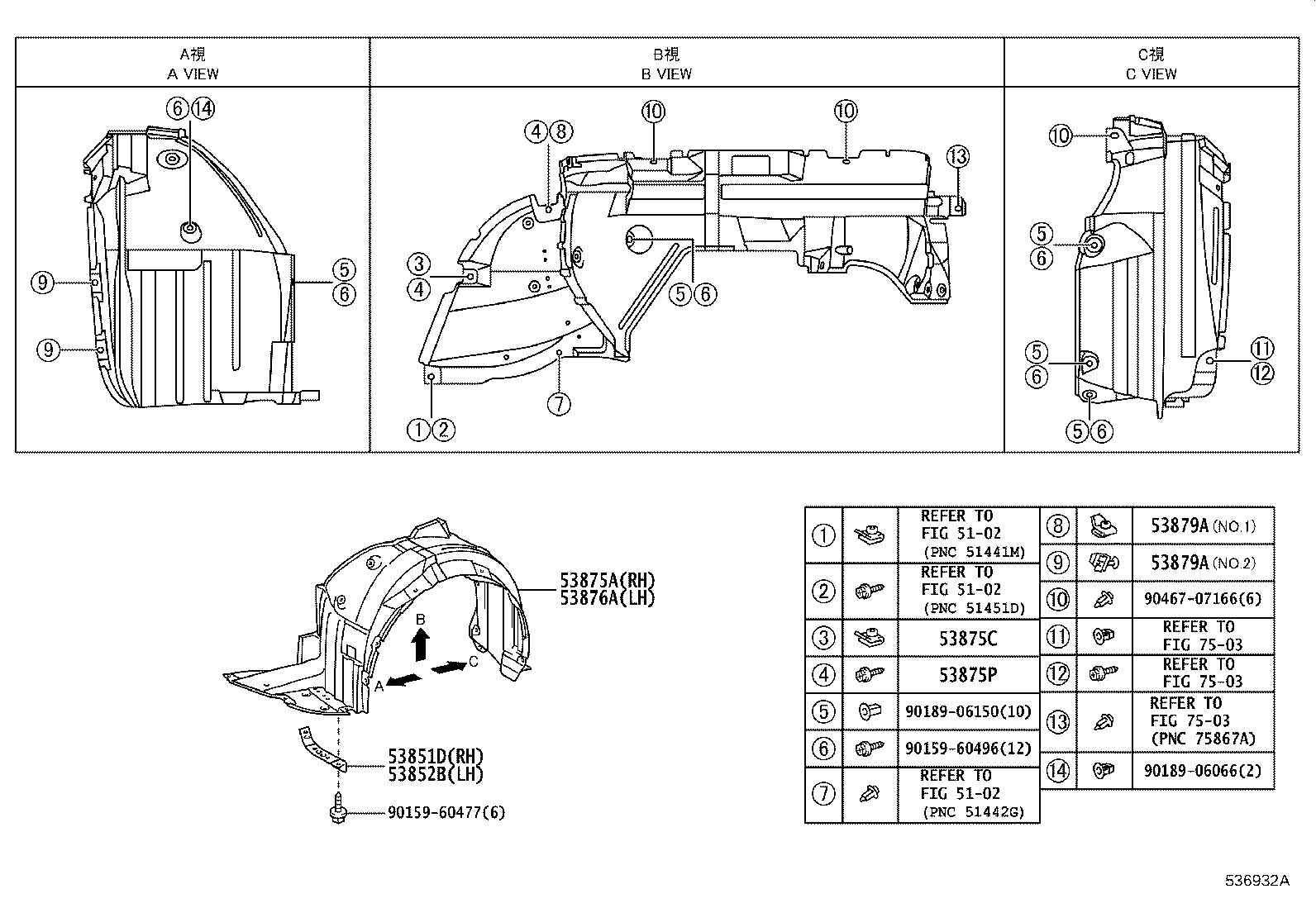

ILLUST NO. 2 OF 2(0502- )

Click highlighted areas on diagram

FENDER LINER

diagram 5102 5102 5102 53851D 53852B 53875A 53875C 53875P 53876A 53879A 53879A 7503 7503 7503 9015960477 9015960496 9018906066 9018906150 9046707166
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0N010

GRS18#

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-0N010

GRS18#

 1
53875A - LINER, FRONT FENDER, RH
53805-0N010

GRS18#

 1
53875C - CLIP, FRONT FENDER LINER
90179-05060

GRS18#

 2
53875P - SCREW, NO.1
90159-60477

GRS18#

 4
53876A - LINER, FRONT FENDER, LH
53806-0N010

GRS18#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-28010

GRS18#

NO.2

 4
53879-17020

GRS18#

NO.1

 2
53879A - RETAINER, FRONT FENDER LINER
53879-28010

GRS18#

NO.2

 4
53879-17020

GRS18#

NO.1

 2
Common parts
90159-60477
90159-60496
90189-06066
90189-06150
90467-07166
Linked diagrams
5102
7503
