GRS182L-DETUKC (2005)
Toyota Crown (China)
Production
Feb 2005
-
Nov 2009
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

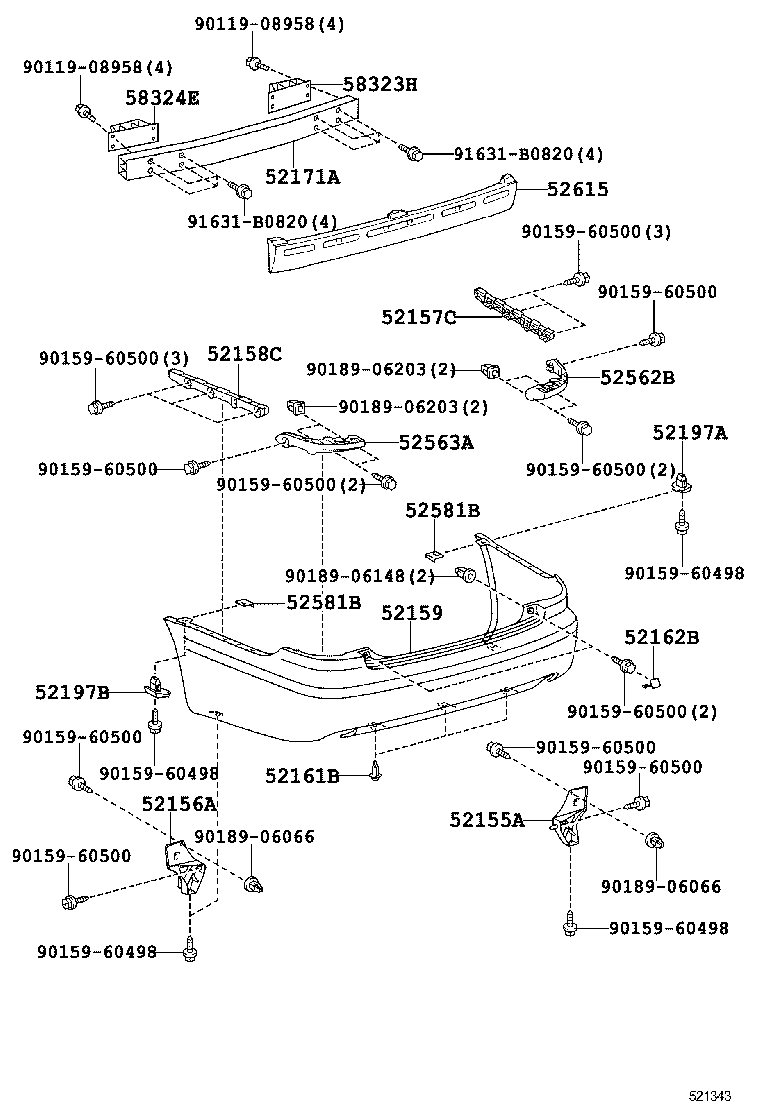

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-0N010 |
GRS18# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-0N010 |
GRS18# |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-0N010 |
GRS18# |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-0N010 |
GRS18# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0N901 |
GRS18# PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GRS18# |
3 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-0N901 |
GRS18# |
2 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-30210 |
GRS18# |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-30040 |
GRS18# |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-30040 |
GRS18# |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-0N010 |
GRS18# |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-0N010 |
GRS18# |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-30060 |
GRS18# |
2 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-30060 |
GRS18# |
2 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-0N010 |
GRS18# |
1 | ||
| 58323H - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-30060 |
GRS18# |
1 | ||
| 58324E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-30040 |
GRS18# |
1 | ||
| Common parts | ||||
| 90119-08958 | ||||
| 90159-60498 | ||||
| 90159-60500 | ||||
| 90189-06066 | ||||
| 90189-06148 | ||||
| 90189-06203 | ||||
| 91631-B0820 | ||||
