GRS182L-DETUKC (2005)

Toyota Crown (China)

Production Feb 2005 - Nov 2009
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )

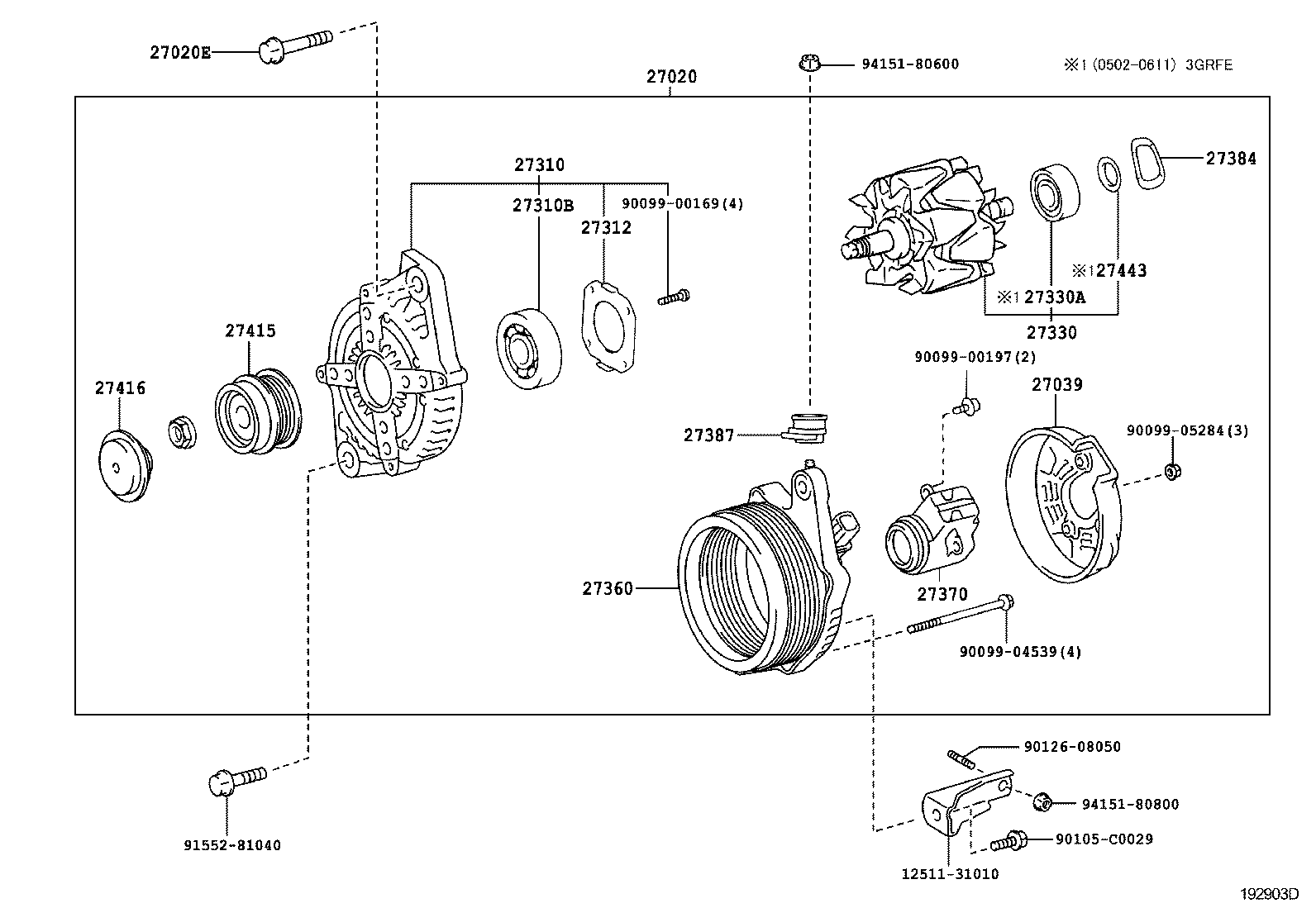

Click highlighted areas on diagram

12V 130A, 12V 150A

diagram 1251131010 27020 27020E 27039 27310 27310B 27312 27330 27330A 27360 27370 27384 27387 27415 27416 27443 9009900169 9009900197 9009904539 9009905284 90105C0029 9012608050 9155281040 9415180600 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0P190

3GRFE..GRS182

12V 150A

 1
27060-0P191

3GRFE..GRS182

12V 150A

 1
27060-0P130

3GRFE..GRS182

12V 130A

 1
27060-0P193

3GRFE..GRS182

12V 150A

 1
27060-0P192

3GRFE..GRS182

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-C0098

3GRFE,5GRFE..GRS18#

(L)

 1
91552-81070

3GRFE,5GRFE..GRS18#

(J)

 1
91552-81070

3GRFE,5GRFE..GRS18#

 1
27039 - COVER, ALTERNATOR REAR END
27039-27060

3GRFE,5GRFE..GRS18#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P180

3GRFE,5GRFE..GRS18#

 1
27310-31220

3GRFE,5GRFE..GRS18#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

3GRFE,5GRFE..GRS18#

 1
90068-10033

3GRFE,5GRFE..GRS18#

 1
27312 - PLATE, RETAINER
27312-72100

3GRFE,5GRFE..GRS18#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-33090

3GRFE..GRS182

 1
27330-58460

3GRFE..GRS182

 1
27330-0P180

3GRFE,5GRFE..GRS18#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3GRFE..GRS182

 1
27360 - COIL ASSY, ALTERNATOR
27360-31220

3GRFE..GRS182

 1
27360-31250

3GRFE..GRS182

 1
27360-0P190

3GRFE..GRS182

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

3GRFE..GRS182

 1
27370-31220

3GRFE..GRS182

 1
27370-0T030

3GRFE,5GRFE..GRS18#

 1
27370-0P180

3GRFE,5GRFE..GRS18#

 1
27384 - WASHER
27384-50030

3GRFE,5GRFE..GRS18#

 1
27387 - INSULATOR, TERMINAL
27387-20130

3GRFE,5GRFE..GRS18#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W130

3GRFE,5GRFE..GRS18#

 1
27415-0W061

3GRFE,5GRFE..GRS18#

 1
27415-0W062

3GRFE,5GRFE..GRS18#

 1
27415-0W010

3GRFE,5GRFE..GRS18#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W020

3GRFE,5GRFE..GRS18#

 1
27416-0W050

3GRFE,5GRFE..GRS18#

 1
27416-0W010

3GRFE,5GRFE..GRS18#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3GRFE..GRS182

 1
Common parts
12511-31010
90099-00169
90099-00197
90099-04539
90099-05284
90105-C0029
90126-08050
91552-81040
94151-80600
94151-80800
