GRS182L-DETUKC (2005)
Toyota Crown (China)
Production
Feb 2005
-
Nov 2009
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

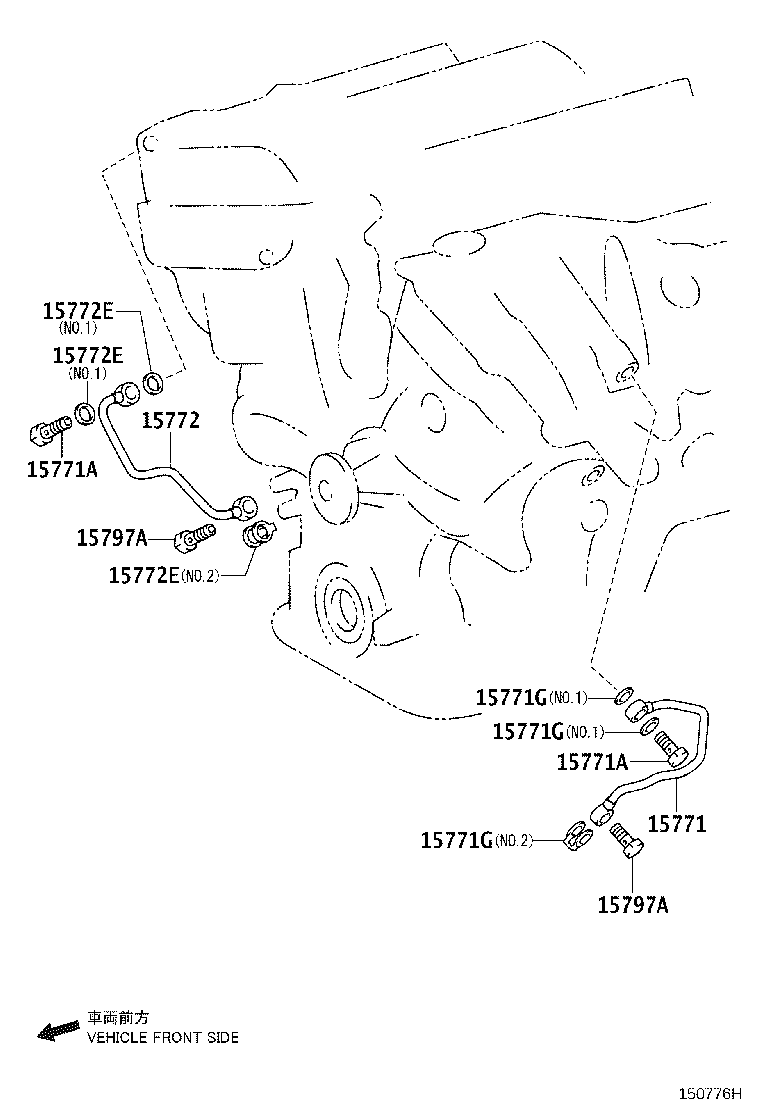

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15771 - PIPE, OIL, NO.1 | ||||
| 15771-0P010 |
3GRFE,5GRFE..GRS18# (L) |
1 | ||
| 15771-31010 |
3GRFE,5GRFE..GRS18# (J) |
1 | ||
| 15771-31010 |
3GRFE..GRS182 |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16035 |
3GRFE,5GRFE..GRS18# |
2 | ||
| 90401-16043 |
3GRFE,5GRFE..GRS18# |
2 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16035 |
3GRFE,5GRFE..GRS18# |
2 | ||
| 90401-16043 |
3GRFE,5GRFE..GRS18# |
2 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
3GRFE,5GRFE..GRS18# NO.1 |
2 | ||
| 90430-16016 |
3GRFE,5GRFE..GRS18# NO.2 |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
3GRFE,5GRFE..GRS18# NO.1 |
2 | ||
| 90430-16016 |
3GRFE,5GRFE..GRS18# NO.2 |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
3GRFE,5GRFE..GRS18# NO.1 |
2 | ||
| 90430-16016 |
3GRFE,5GRFE..GRS18# NO.2 |
1 | ||
| 15772 - PIPE, OIL, NO.2 | ||||
| 15772-31010 |
3GRFE..GRS182 |
1 | ||
| 15772-31010 |
3GRFE,5GRFE..GRS18# (J) |
1 | ||
| 15772-0P010 |
3GRFE,5GRFE..GRS18# (L) |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16012 |
3GRFE,5GRFE..GRS18# NO.1 |
2 | ||
| 90430-16016 |
3GRFE,5GRFE..GRS18# NO.2 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16012 |
3GRFE,5GRFE..GRS18# NO.1 |
2 | ||
| 90430-16016 |
3GRFE,5GRFE..GRS18# NO.2 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16012 |
3GRFE,5GRFE..GRS18# NO.1 |
2 | ||
| 90430-16016 |
3GRFE,5GRFE..GRS18# NO.2 |
1 | ||
| 15797A - BOLT, OIL CHECK VALVE | ||||
| 15797-31010 |
3GRFE,5GRFE..GRS18# |
2 | ||
| 15797A - BOLT, OIL CHECK VALVE | ||||
| 15797-31010 |
3GRFE,5GRFE..GRS18# |
2 | ||
