GRS182L-DETSKC (2005)
Toyota Crown (China)
Production
Feb 2005
-
Nov 2009
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(0502- )
Click highlighted areas on diagram

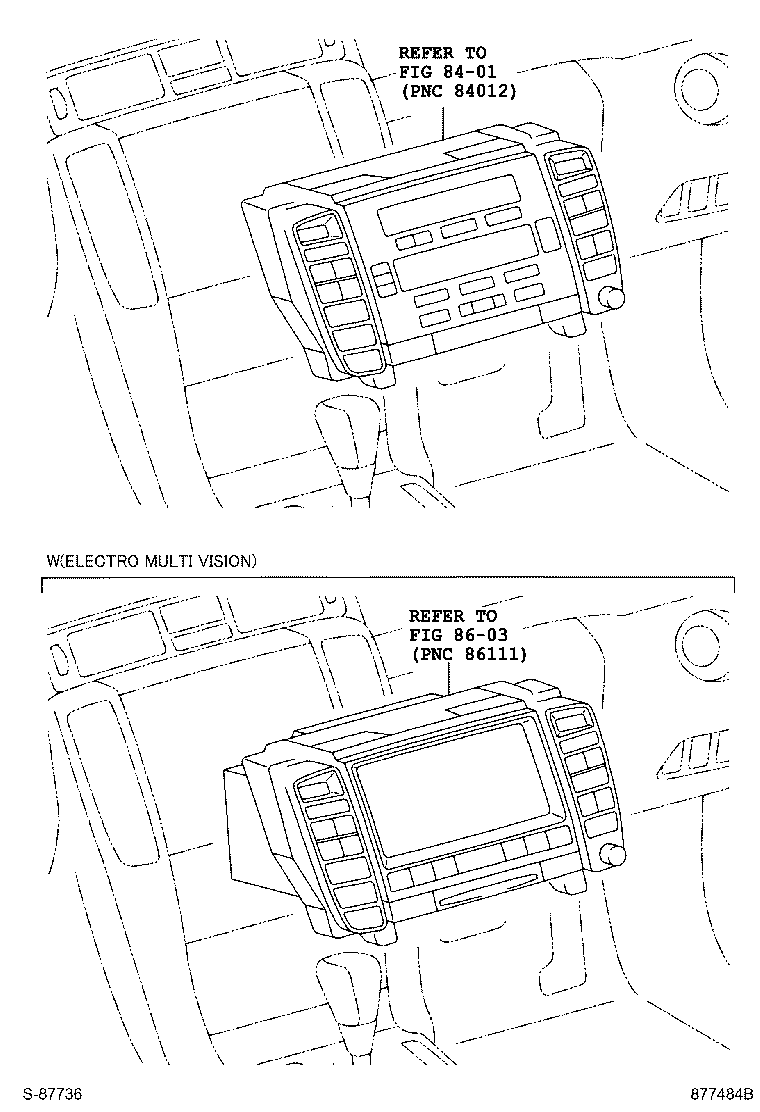

CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||
ILLUST NO. 2 OF 4(0502- )
Click highlighted areas on diagram

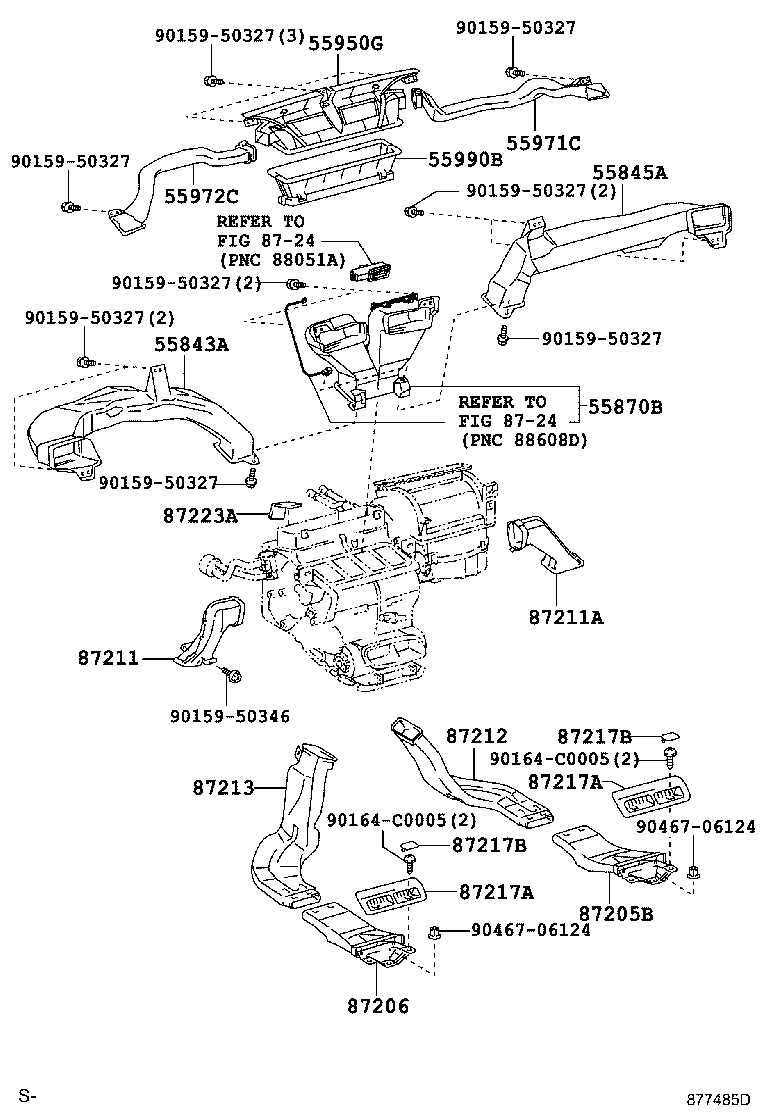

FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-0N010 |
GRS18# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-0N010 |
GRS18# |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-0N010 |
GRS18#..25ROY,ROY,ROYEX,ROYG |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0N010 |
GRS18# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-0N010 |
GRS18# |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-0N010 |
GRS18# |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-0N010 |
GRS18# |
1 | ||
| 87205B - GUIDE SUB-ASSY, AIR DUCT, RH | ||||
| 87205-0N010 |
GRS18# |
1 | ||
| 87206 - GUIDE SUB-ASSY, AIR DUCT, LH | ||||
| 87206-0N010 |
GRS18# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-0N010 |
GRS18# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-0N020 |
GRS18# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-0N010 |
GRS18# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-0N010 |
GRS18# |
1 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-0N010C0 |
GRS18# BLACK,TRIM2# |
2 | ||
| 87217-0N010A0 |
GRS18# IVORY,TRIM0# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-0N010C0 |
GRS18# BLACK,TRIM2# |
2 | ||
| 87217-0N010A0 |
GRS18# IVORY,TRIM0# |
2 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-C1001A0 |
GRS18# IVORY,TRIM0# |
4 | ||
| 90950-C1001C0 |
GRS18# BLACK,TRIM2# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-C1001A0 |
GRS18# IVORY,TRIM0# |
4 | ||
| 90950-C1001C0 |
GRS18# BLACK,TRIM2# |
4 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-0N010 |
GRS18# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-50346 | ||||
| 90164-C0005 | ||||
| 90467-06124 | ||||
| Linked diagrams | ||||
| 8724 | ||||
ILLUST NO. 4 OF 4(0502- )
Click highlighted areas on diagram

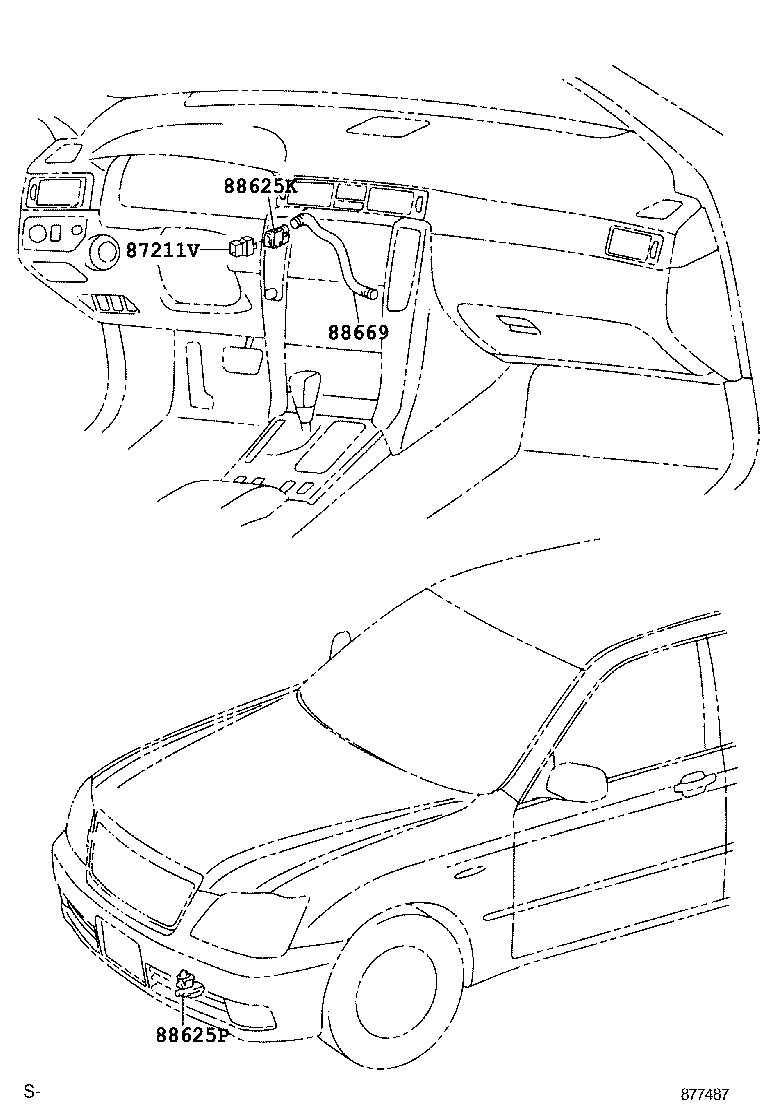

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625K - THERMISTOR, COOLER | ||||
| 88625-58020 |
GRS18# |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
GRS18# |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-0N020 |
GRS18# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
