GRS182L-DETSKC (2005)

Toyota Crown (China)

Production Feb 2005 - Nov 2009
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )

Click highlighted areas on diagram

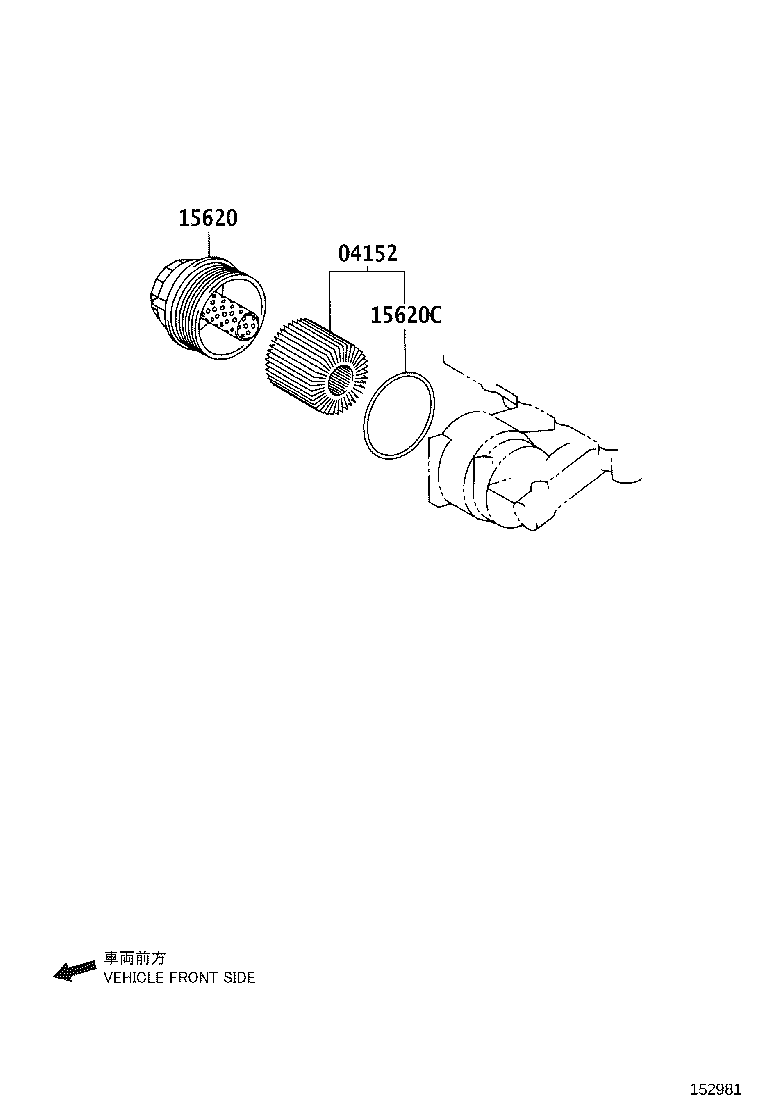

diagram 04152 15620 15620C
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-31080

3GRFE,5GRFE..GRS18#

(J)

 1
04152-31080

3GRFE,5GRFE..GRS18#

 1
04152-0P010

3GRFE,5GRFE..GRS18#

(L)

 1
15620 - CAP ASSY, OIL FILTER
15620-31040

3GRFE,5GRFE..GRS18#

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

3GRFE,5GRFE..GRS18#

 1
90301-79005

3GRFE,5GRFE..GRS18#

 1
