GRS182L-DETQKC (2005)

Toyota Crown (China)

Production Feb 2005 - Nov 2009
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )

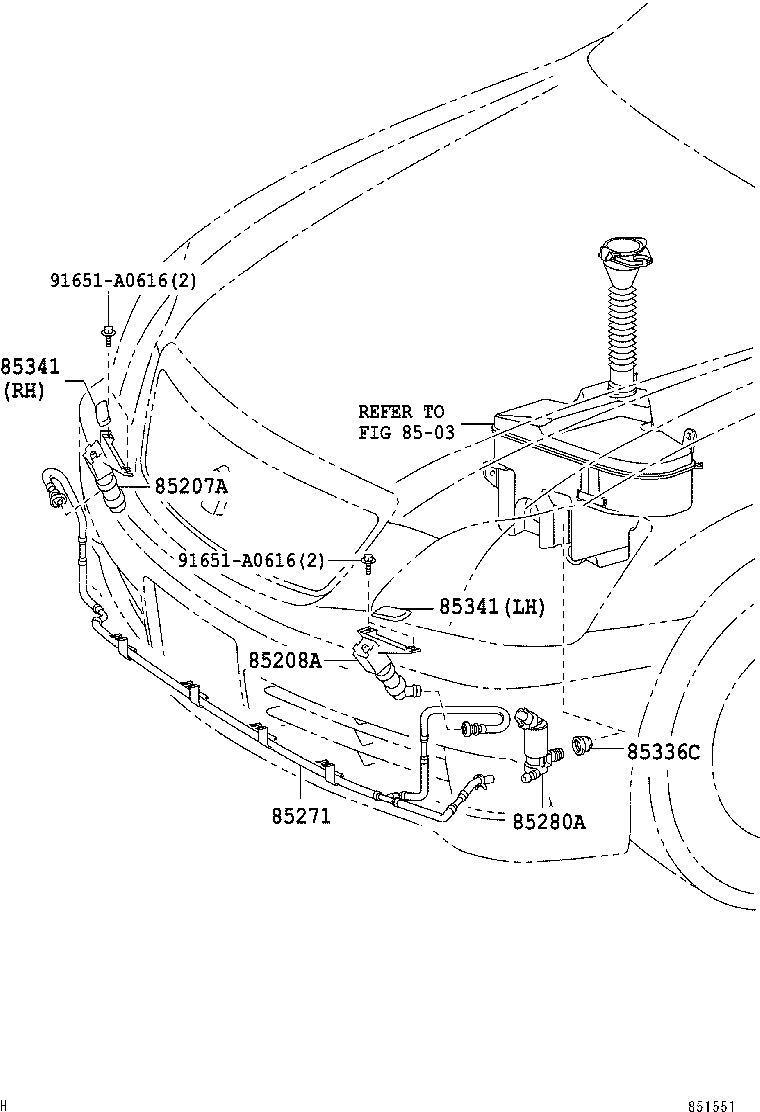

Click highlighted areas on diagram

diagram 8503 85207A 85208A 85271 85280A 85336C 85341 85341 91651A0616 91651A0616
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-0N010

GRS18#

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-0N010

GRS18#

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85271-0N010

GRS18#

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-30040

GRS18#

 1
85336C - PACKING, HEADLAMP CLEANER MOTOR
85295-0N010

GRS18#

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85381-0N010A0

GRS18#

WHITE PEARL CS.,062,RH

 1
85381-0N010J0

GRS18#

DARK BLUE MC.,8P8,RH

 1
85381-0N010C0

GRS18#

BLACK,202,RH

 1
85381-0N010B0

GRS18#

SILVER ME.,1C0,RH

 1
85381-0N010D0

GRS18#

BLACKISH RED MC.,3R0,RH

 1
85382-0N010C0

GRS18#

BLACK,202,LH

 1
85382-0N010B0

GRS18#

SILVER ME.,1C0,LH

 1
85382-0N010J0

GRS18#

DARK BLUE MC.,8P8,LH

 1
85382-0N010D0

GRS18#

BLACKISH RED MC.,3R0,LH

 1
85382-0N010A0

GRS18#

WHITE PEARL CS.,062,LH

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85381-0N010A0

GRS18#

WHITE PEARL CS.,062,RH

 1
85381-0N010J0

GRS18#

DARK BLUE MC.,8P8,RH

 1
85381-0N010C0

GRS18#

BLACK,202,RH

 1
85381-0N010B0

GRS18#

SILVER ME.,1C0,RH

 1
85381-0N010D0

GRS18#

BLACKISH RED MC.,3R0,RH

 1
85382-0N010C0

GRS18#

BLACK,202,LH

 1
85382-0N010B0

GRS18#

SILVER ME.,1C0,LH

 1
85382-0N010J0

GRS18#

DARK BLUE MC.,8P8,LH

 1
85382-0N010D0

GRS18#

BLACKISH RED MC.,3R0,LH

 1
85382-0N010A0

GRS18#

WHITE PEARL CS.,062,LH

 1
Common parts
91651-A0616
Linked diagrams
8503
