GRS182L-DETQKC (2005)

Toyota Crown (China)

Production Feb 2005 - Nov 2009
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0502- )

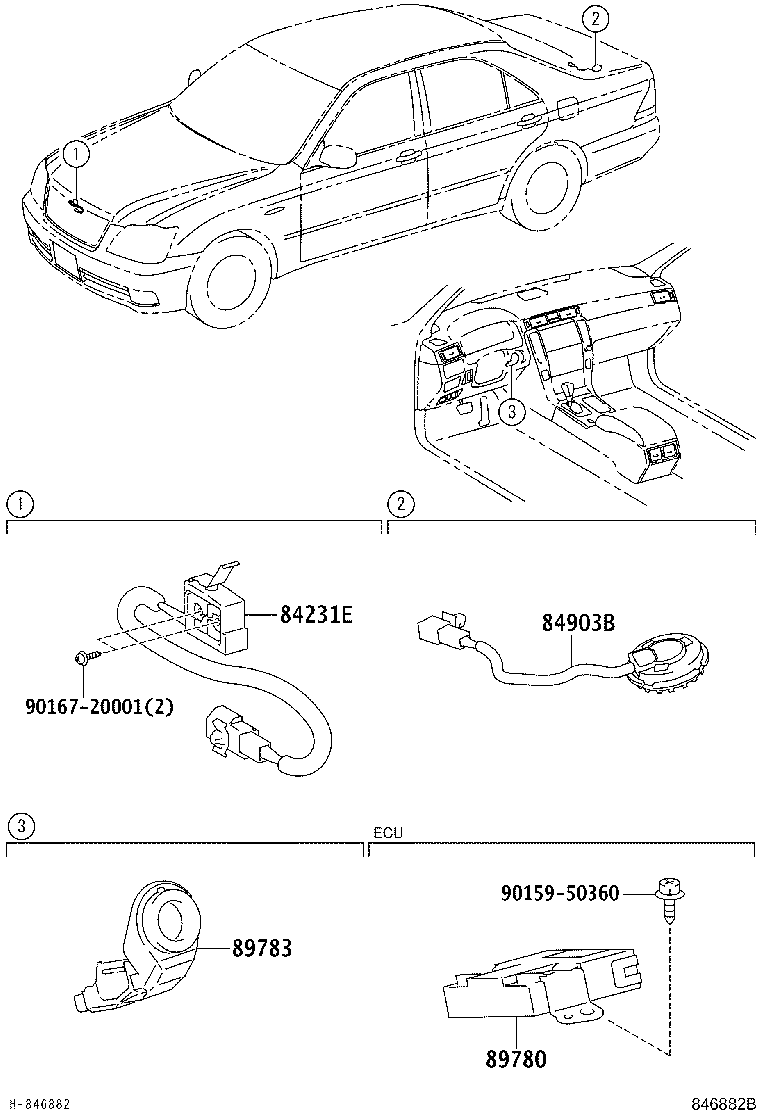

Click highlighted areas on diagram

diagram 84231E 84903B 89780 89783 9015950360 9016720001
Part # Description Qty Price
84231E - SWITCH, COURTESY(FOR SECURITY)
84231-0N010

GRS18#

 1
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-50210

GRS18#

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-0N011

GRS182..ROY,ROYG

 1
89780-0N010

GRS182..ROY,ROYG

 1
Common parts
90159-50360
90167-20001
