GRS182L-DETQKC (2005)
Toyota Crown (China)

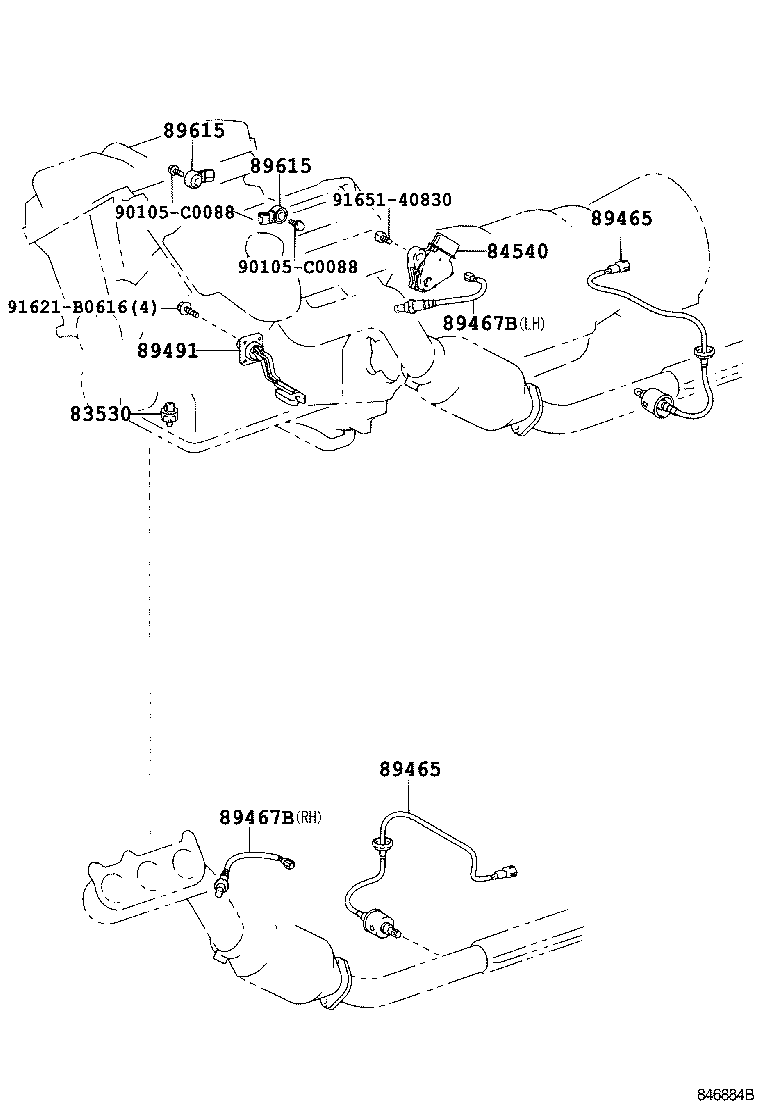

ILLUST NO. 1 OF 8(0502- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRS18# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30320 |
GRS182 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0N020 |
GRS182 |
2 | ||
| 89465-0N040 |
GRS18# |
2 | ||
| 89465-0P010 |
GRS18# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0N020 |
GRS182 |
2 | ||
| 89465-0N040 |
GRS18# |
2 | ||
| 89465-0P010 |
GRS18# |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30030 |
GRS182 LH |
1 | ||
| 89467-30010 |
GRS182 RH & LH |
2 | ||
| 89467-30040 |
GRS182 RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30030 |
GRS182 LH |
1 | ||
| 89467-30010 |
GRS182 RH & LH |
2 | ||
| 89467-30040 |
GRS182 RH |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30060 |
GRS18# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS18# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS18# |
2 | ||
| Common parts | ||||
| 90105-C0088 | ||||
| 91621-B0616 | ||||
| 91651-40830 | ||||
ILLUST NO. 2 OF 8(0502- )

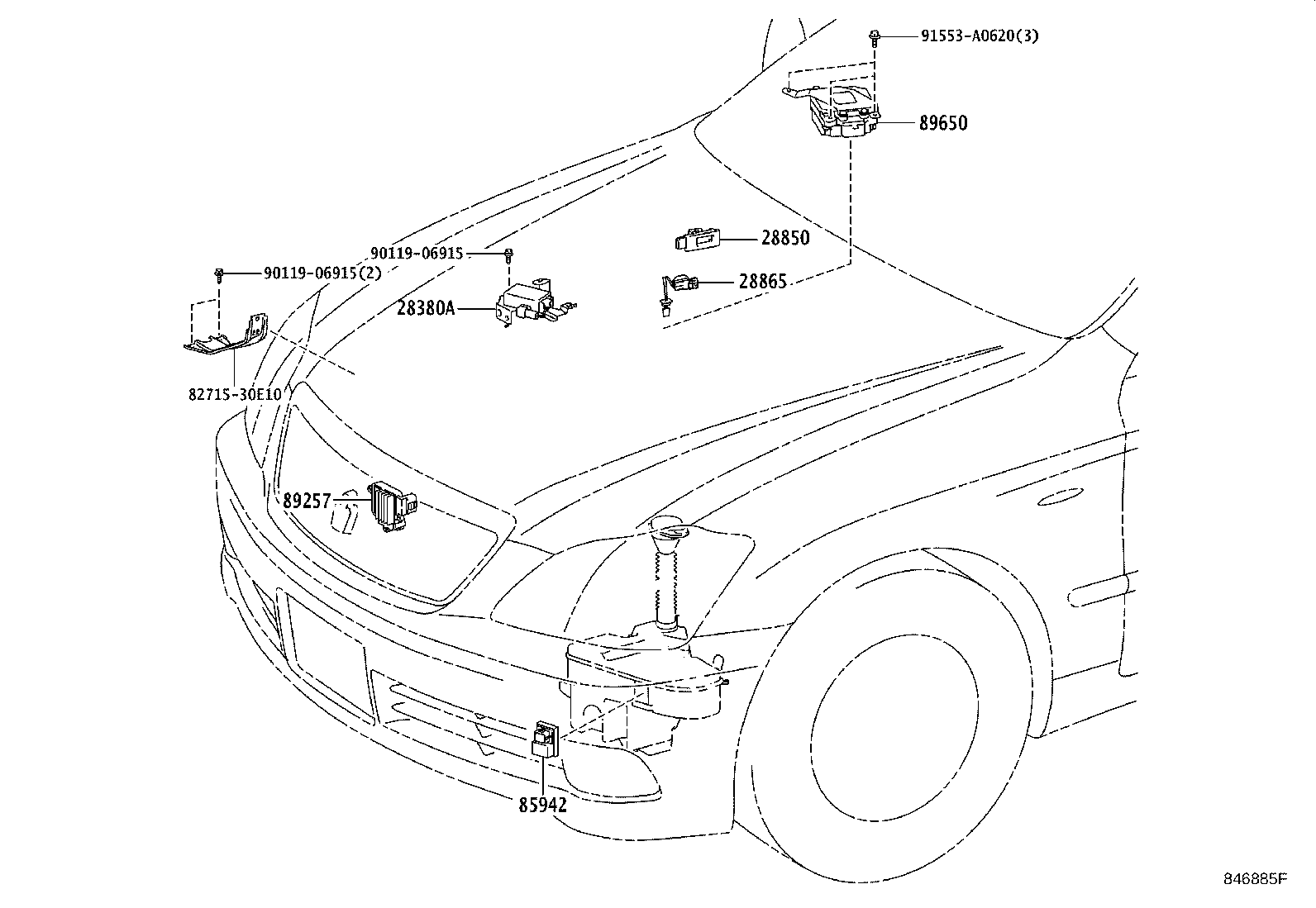

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31020 |
3GRFE,5GRFE..GRS18# |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-31010 |
3GRFE..GRS182 |
1 | ||
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-31010 |
3GRFE..GRS182 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
GRS18# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30050 |
GRS182 |
1 | ||
| 89257-30060 |
GRS18# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30630 |
GRS18#..25ROY,ROY,ROYEX,ROYG |
1 | ||
| Common parts | ||||
| 82715-30E10 | ||||
| 90119-06915 | ||||
| 91553-A0620 | ||||
ILLUST NO. 4 OF 8(0502- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0N010 |
GRS18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |

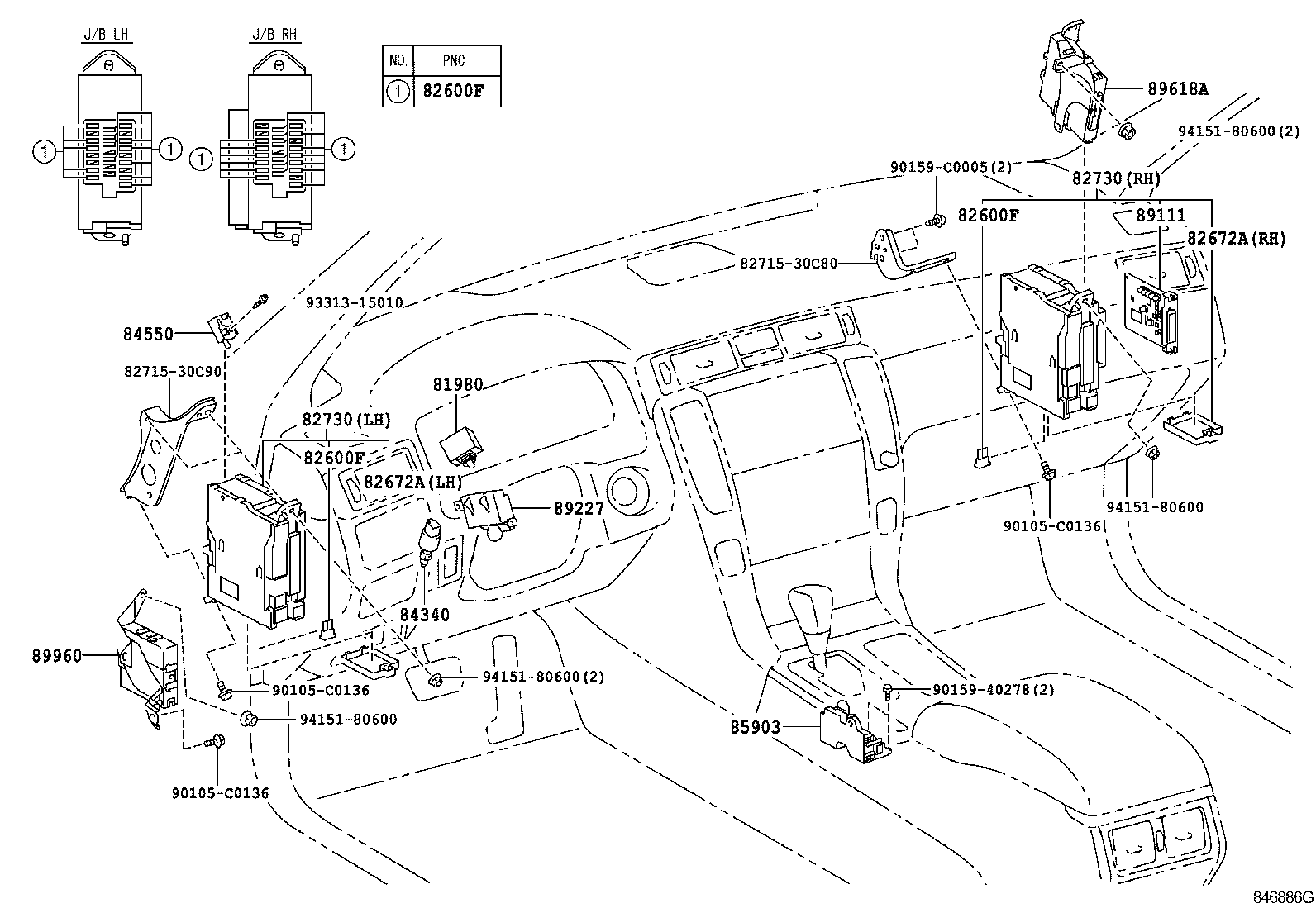

1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30091 |
GRS18# RH |
1 | ||
| 82672-30091 |
GRS18# RH |
1 | ||
| 82672-30101 |
GRS18# LH |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30091 |
GRS18# RH |
1 | ||
| 82672-30091 |
GRS18# RH |
1 | ||
| 82672-30101 |
GRS18# LH |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-30261 |
GRS18# LH |
1 | ||
| 82730-30254 |
GRS18# RH |
1 | ||
| 82730-30253 |
GRS18# RH |
1 | ||
| 82730-30252 |
GRS18# RH |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-30261 |
GRS18# LH |
1 | ||
| 82730-30254 |
GRS18# RH |
1 | ||
| 82730-30253 |
GRS18# RH |
1 | ||
| 82730-30252 |
GRS18# RH |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
GRS18# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
GRS18# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-30080 |
GRS182..ROY,ROYG |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-30010 |
GRS18# |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30020 |
GRS18# |
1 | ||
| 89618A - COMPUTER, POWER SOURCE CONTROL | ||||
| 89670-30030 |
GRS182..ROY,ROYG |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30120 |
GRS18# |
1 | ||
| Common parts | ||||
| 82715-30C80 | ||||
| 82715-30C90 | ||||
| 90105-C0136 | ||||
| 90159-40278 | ||||
| 90159-C0005 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 8(0502- )

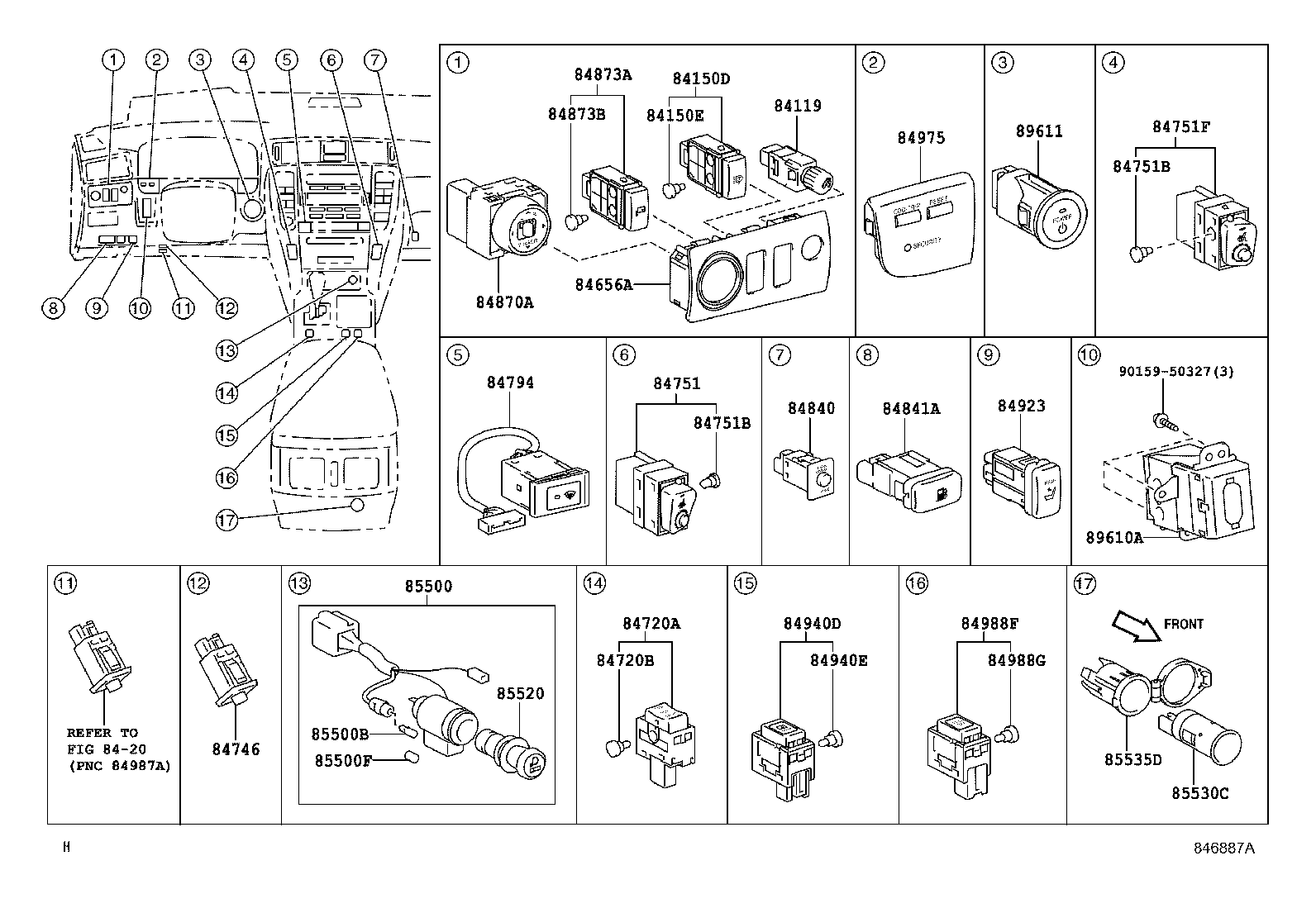

INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-0N010 |
GRS18# |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-0N010 |
GRS18# |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 90011-01064 |
GRS18# 14V 0.91W,W(CAP) |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-0N010A0 |
GRS18# IVORY,TRIM0# |
1 | ||
| 84656-0N010C0 |
GRS18# BLACK,TRIM2# |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-0N010 |
GRS18# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GRS18# 14V 0.56W |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-0N010 |
GRS18# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0N010 |
GRS182..ROY,ROYG |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90011-01097 |
GRS182..ROY,ROYG 14V 1.12W,W(CAP) |
2 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90011-01097 |
GRS182..ROY,ROYG 14V 1.12W,W(CAP) |
2 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-0N020 |
GRS182..ROY,ROYG |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-0N010 |
GRS18#..25,25ROY,ROY,ROYEX |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-0N010 |
GRS18# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-0N010 |
GRS18# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0N010 |
GRS18# |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-0N010 |
GRS18# |
1 | ||
| 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH | ||||
| 90011-01064 |
GRS18# 14V 0.91W,W(CAP) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-30030 |
GRS18# |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-0N010 |
GRS18#..25ROY,ROY,ROYEX,ROYG |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
GRS18#..25ROY,ROY,ROYEX,ROYG 14V0.91W,W(GREEN CAP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30530 |
GRS18# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
GRS18# 12V 1.2W W/O SOCKET |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GRS18# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GRS18# |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-0N010 |
GRS18# |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-0N010 |
GRS18# |
1 | ||
| 89610A - HOLDER ASSY, ELECTRICAL KEY | ||||
| 89610-0N010 |
GRS182..ROY,ROYG |
1 | ||
| 89610-0N011 |
GRS182..ROY,ROYG |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0N010 |
GRS182..ROY,ROYG |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8420 | ||||
ILLUST NO. 5 OF 8(0502- )

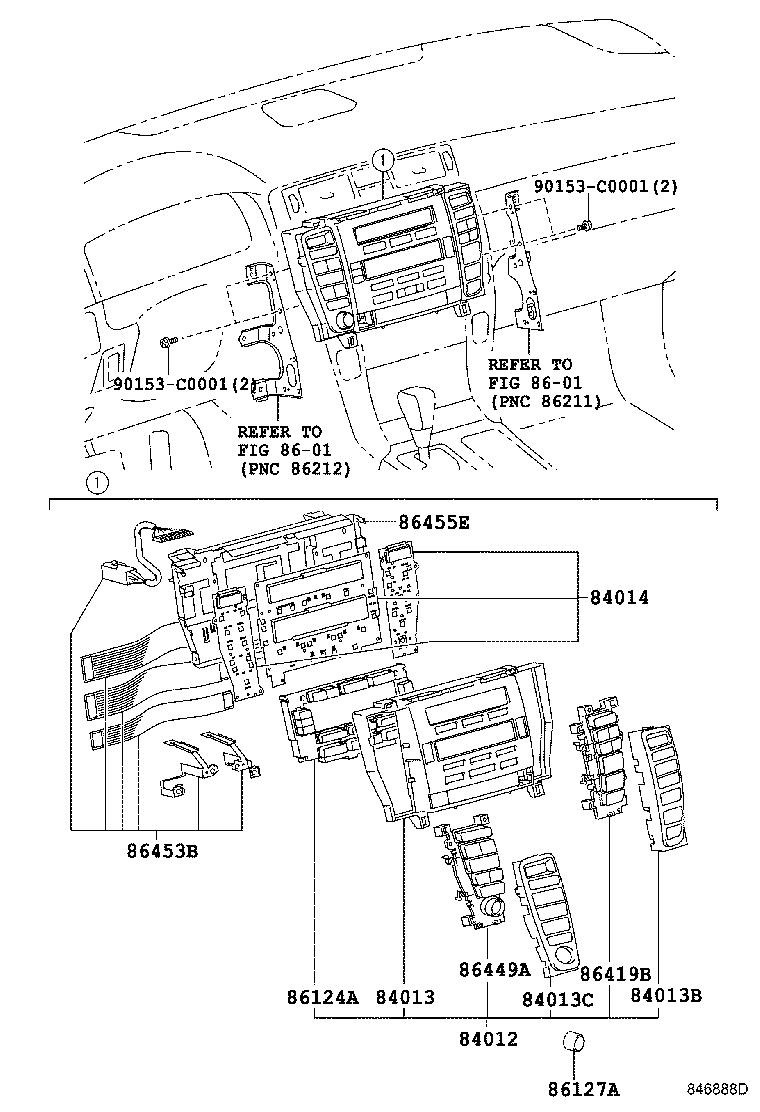

INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-30130 |
GRS182..ROY L PACKAGE |
1 | ||
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-30100 |
GRS182..ROY L PACKAGE |
1 | ||
| 84013B - PANEL SUB-ASSY, INTEGRATION, NO.2 | ||||
| 84013-30090 |
GRS182..ROY L PACKAGE |
1 | ||
| 84013C - PANEL SUB-ASSY, INTEGRATION, NO.3 | ||||
| 84013-30080 |
GRS182..ROY L PACKAGE |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-30050 |
GRS182..ROY L PACKAGE |
1 | ||
| 86124A - KNOB, RADIO RECEIVER TONE CONTROL | ||||
| 86124-30090 |
GRS182..ROY L PACKAGE |
1 | ||
| 86127A - KNOB,RADIO RECEIVER, NO.1 | ||||
| 86127-30070 |
GRS182..ROY L PACKAGE |
1 | ||
| 86419B - KNOB, AUDIO MODULE | ||||
| 86419-30030 |
GRS182..ROY L PACKAGE |
1 | ||
| 86449A - KNOB,HEATER CONTROL MODULE | ||||
| 86449-30030 |
GRS182..ROY L PACKAGE |
1 | ||
| 86453B - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-30030 |
GRS182..ROY L PACKAGE |
1 | ||
| 86455E - CASE, MULTI-MEDIA MODULE | ||||
| 86455-30020 |
GRS182..ROY L PACKAGE |
1 | ||
| Common parts | ||||
| 90153-C0001 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 6 OF 8(0502- )

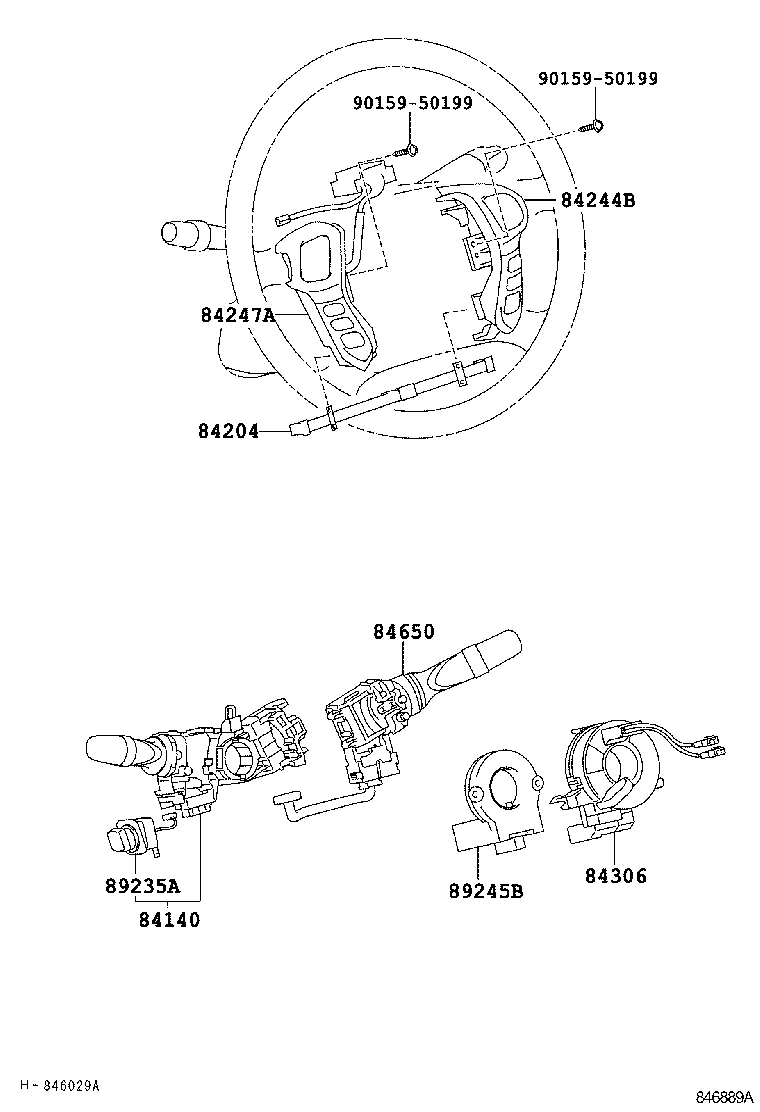

IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0N010 |
GRS18# |
1 | ||
| 84140-0N011 |
GRS18# |
1 | ||
| 84204 - CABLE SUB-ASSY, STEERING PAD SWITCH | ||||
| 84204-58010 |
GRS18# |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-30080C0 |
GRS182..ROY BLACK,TRIM2# |
1 | ||
| 84244-30080E0 |
GRS182..ROY ORCHID BROWN,TRIM0# |
1 | ||
| 84244-30030C1 |
GRS182..ROY L PACKAGE,BLACK & GRAY,TRIM2# |
1 | ||
| 84244-30080C0 |
GRS182..ROY BLACK,TRIM20 |
1 | ||
| 84244-30080C1 |
GRS182..ROY BLACK & BLUE GRAY,TRIM20 |
1 | ||
| 84244-30030E0 |
GRS182..ROY L PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-30010C1 |
GRS182..ROY BLACK & GRAY,TRIM2# |
1 | ||
| 84247-30010C0 |
GRS182..ROY BLACK & BLUE GRAY,TRIM20 |
1 | ||
| 84247-30010C1 |
GRS182..ROY BLACK & GRAY,TRIM20 |
1 | ||
| 84247-30010E0 |
GRS18#..25,25ROY,ROY,ROYEX ORCHID BROWN,TRIM0# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0N010 |
GRS18# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0N011 |
GRS18# |
1 | ||
| 84652-0N010 |
GRS18# |
1 | ||
| 84652-0N012 |
GRS18# |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
GRS18# |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-0N010 |
GRS18# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

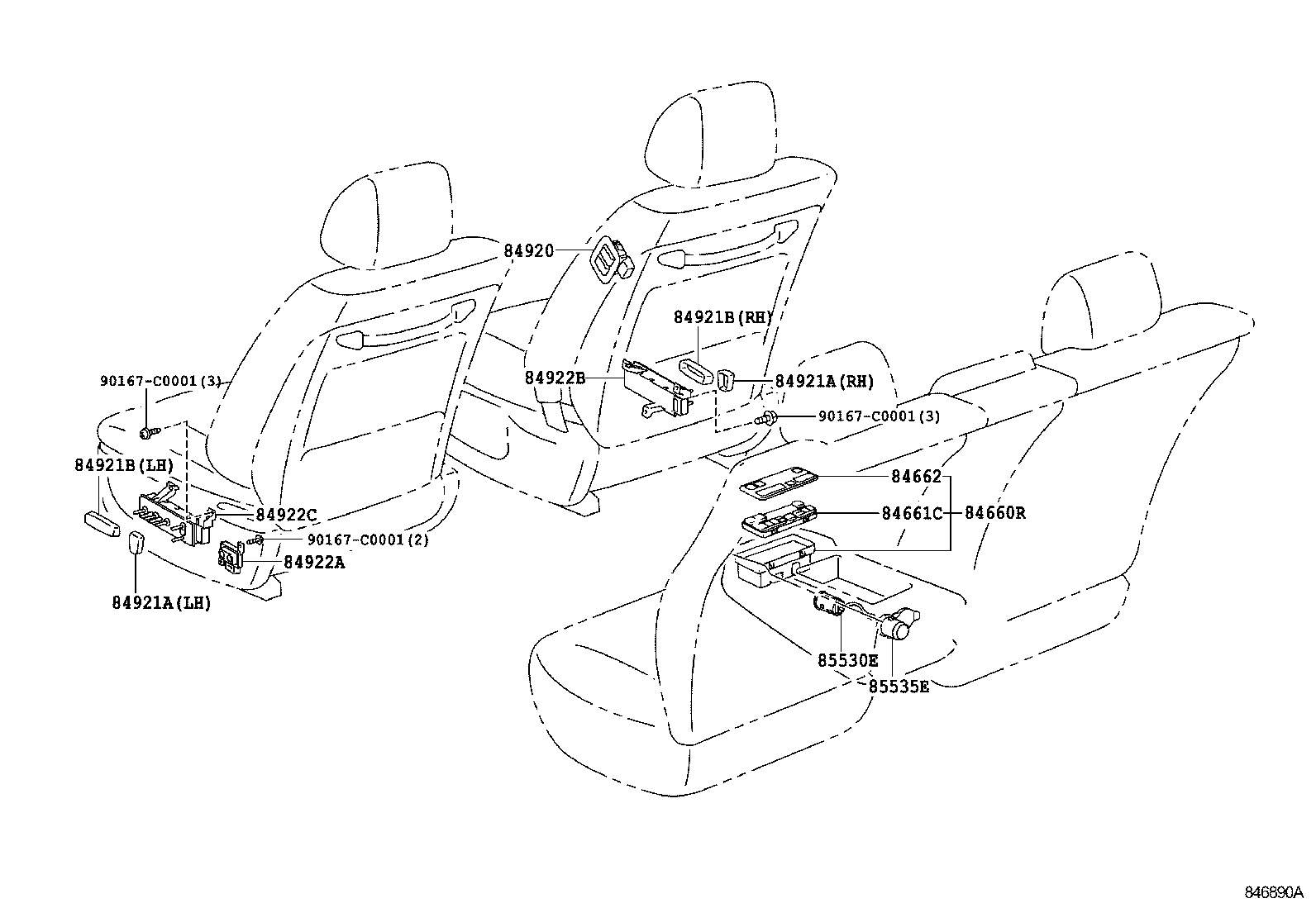

ILLUST NO. 7 OF 8(0502- )
SEAT & REAR ARM REST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30280 |
GRS182..ROY |
1 | ||
| 84661C - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-30060 |
GRS182..ROY |
1 | ||
| 84662 - PANEL, COOLER CONTROL SWITCH | ||||
| 84662-30060 |
GRS182..ROY |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-0N010A0 |
GRS18#..25,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 84920-0N010C0 |
GRS18# BLACK,TRIM2# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-0N040C0 |
GRS18# BLACK,TRIM2#,RH |
1 | ||
| 84921-0N020A0 |
GRS18# IVORY,TRIM0#,LH |
1 | ||
| 84921-0N020C0 |
GRS18# BLACK,TRIM2#,LH |
1 | ||
| 84921-0N040A0 |
GRS18# IVORY,TRIM0#,RH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-0N040C0 |
GRS18# BLACK,TRIM2#,RH |
1 | ||
| 84921-0N020A0 |
GRS18# IVORY,TRIM0#,LH |
1 | ||
| 84921-0N020C0 |
GRS18# BLACK,TRIM2#,LH |
1 | ||
| 84921-0N040A0 |
GRS18# IVORY,TRIM0#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-0N010A0 |
GRS18# IVORY,TRIM0#,LH |
1 | ||
| 84921-0N010C0 |
GRS18# BLACK,TRIM2#,LH |
1 | ||
| 84921-0N030C0 |
GRS18# BLACK,TRIM2#,RH |
1 | ||
| 84921-0N030A0 |
GRS18# IVORY,TRIM0#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-0N010A0 |
GRS18# IVORY,TRIM0#,LH |
1 | ||
| 84921-0N010C0 |
GRS18# BLACK,TRIM2#,LH |
1 | ||
| 84921-0N030C0 |
GRS18# BLACK,TRIM2#,RH |
1 | ||
| 84921-0N030A0 |
GRS18# IVORY,TRIM0#,RH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-0N020A0 |
GRS18# IVORY,TRIM0# |
1 | ||
| 84920-0N020C0 |
GRS18# BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-0N010 |
GRS18# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-0N010 |
GRS182..ROY,ROYG |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-0N020 |
GRS18# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0N010 |
GRS18# |
1 | ||
| Common parts | ||||
| 90167-C0001 | ||||

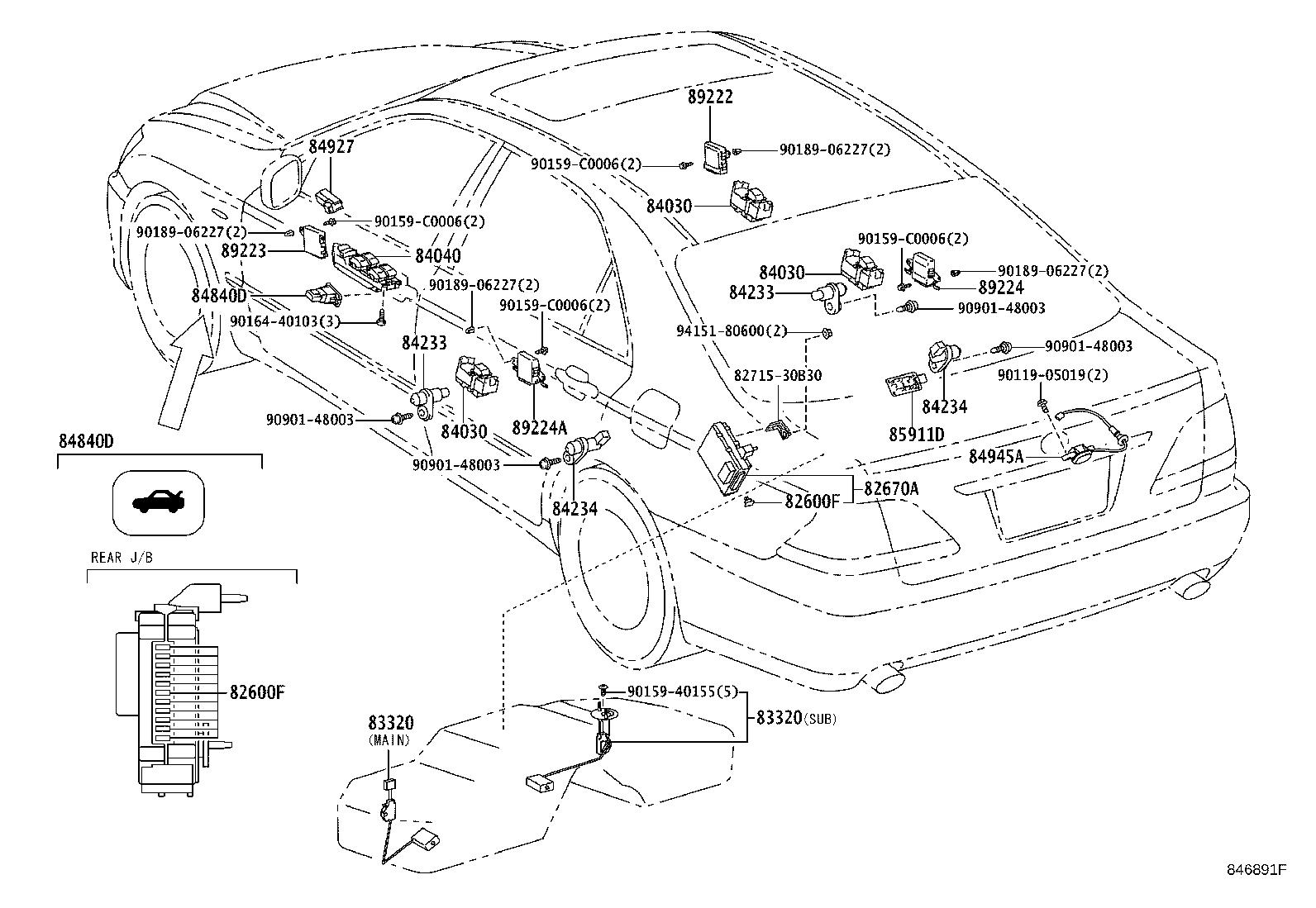

ILLUST NO. 8 OF 8(0502- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-30220 |
GRS18# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-09100 |
GRS18# SUB |
1 | ||
| 83320-0N010 |
GRS18# MAIN |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-09100 |
GRS18# SUB |
1 | ||
| 83320-0N010 |
GRS18# MAIN |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-0N011 |
GRS18# |
3 | ||
| 84030-0N010 |
GRS18# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-0N011 |
GRS18# |
3 | ||
| 84030-0N010 |
GRS18# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-0N011 |
GRS18# |
3 | ||
| 84030-0N010 |
GRS18# |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0N010 |
GRS18# |
1 | ||
| 84040-0N011 |
GRS18# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRS18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRS18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
GRS18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
GRS18# |
2 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-0N020C0 |
GRS18# BLACK,TRIM2# |
1 | ||
| 84840-0N020A0 |
GRS18# IVORY,TRIM0# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-0N020C0 |
GRS18# BLACK,TRIM2# |
1 | ||
| 84840-0N020A0 |
GRS18# IVORY,TRIM0# |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-0N010 |
GRS182..ROY,ROYG |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-0N010 |
GRS182..ROY,ROYG |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-0N020 |
GRS182..ROY,ROYG |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89222-0N020 |
GRS182..ROY,ROYG |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-0N010 |
GRS18# |
1 | ||
| 89224A - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89224-0N010 |
GRS18# |
1 | ||
| Common parts | ||||
| 82715-30B30 | ||||
| 90119-05019 | ||||
| 90159-40155 | ||||
| 90159-C0006 | ||||
| 90164-40103 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 94151-80600 | ||||

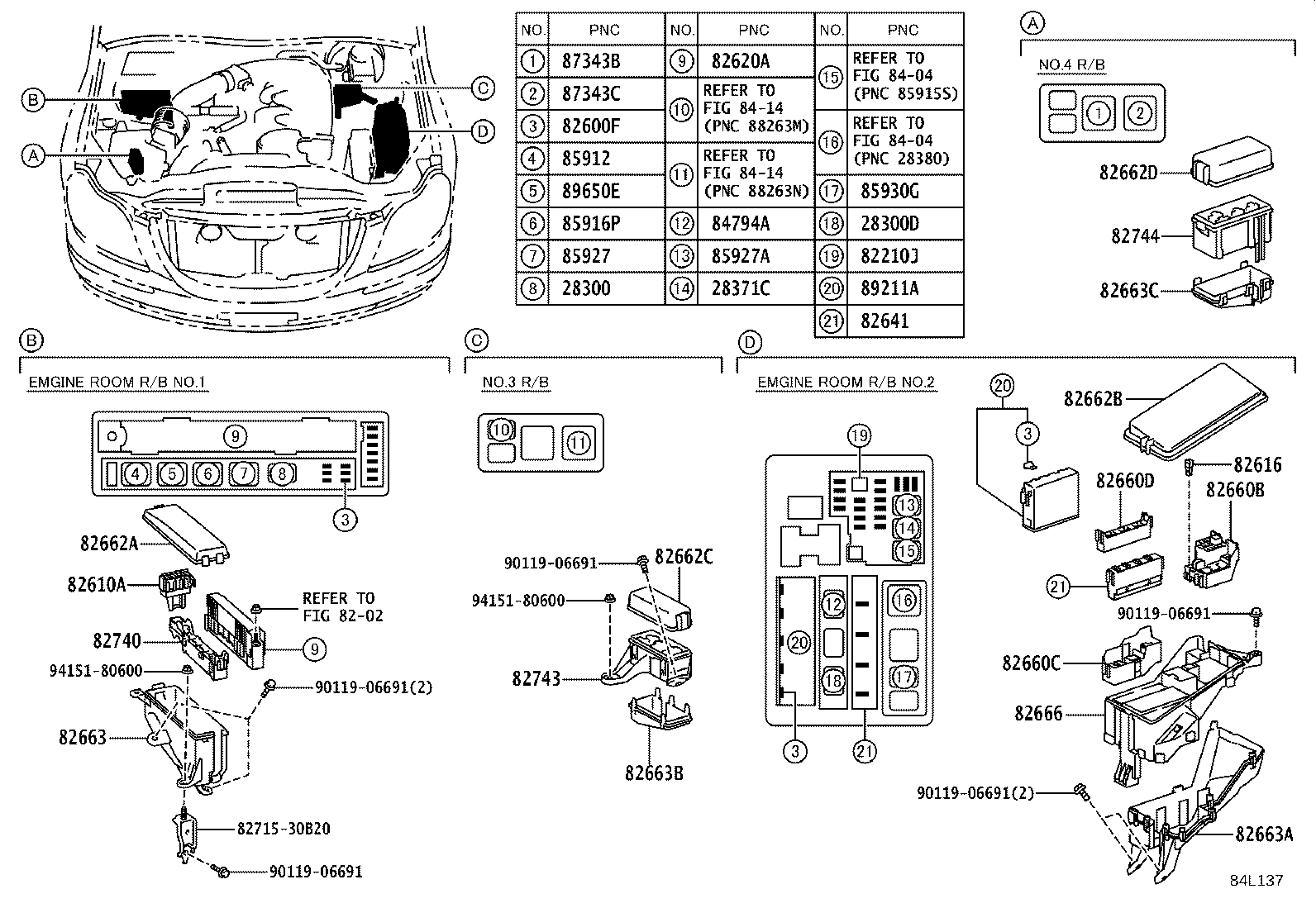

ILLUST NO. 3 OF 8(0502- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
3GRFE,5GRFE..GRS18# |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-T2005 |
3GRFE..GRS182..ROY,ROYG |
1 | ||
| 90987-02027 |
3GRFE..GRS182..ROY,ROYG |
1 | ||
| 90987-T2005 |
3GRFE..GRS182..ROY WIRELESS DOOR LOCK-W(SMART) |
1 | ||
| 90987-02027 |
3GRFE..GRS182..ROY WIRELESS DOOR LOCK-W(SMART) |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2005 |
3GRFE,5GRFE..GRS18# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
GRS18# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GRS18# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GRS18# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRS18# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS18# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS18# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRS18# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-30140 |
GRS18# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRS18# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30170 |
GRS18# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30250 |
GRS18# |
1 | ||
| 82641-30270 |
GRS18# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30A00 |
GRS18# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30A10 |
GRS18# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30A20 |
GRS18# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30690 |
GRS182 |
1 | ||
| 82662-30570 |
GRS182 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30640 |
GRS182 |
1 | ||
| 82662-30710 |
GRS182 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30560 |
GRS18#..25ROY,ROY,ROYEX,ROYG |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-30650 |
GRS182 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30230 |
GRS18# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30210 |
GRS18# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30240 |
GRS18# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-30240 |
GRS18# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30730 |
GRS18# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30340 |
GRS18# |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-30040 |
GRS18# |
1 | ||
| 82744 - BLOCK, ENGINE ROOM RELAY, NO.4 | ||||
| 82743-30050 |
GRS18# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-T2005 |
GRS18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T4002 |
GRS18# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
GRS18# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2004 |
GRS18# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2005 |
GRS18# |
1 | ||
| 87343B - RELAY, HEATER SUB, NO.1(FOR GLOW PLUG HEATER) | ||||
| 90987-T2004 |
GRS182 |
1 | ||
| 87343C - RELAY, HEATER SUB, NO.2(FOR GLOW PLUG HEATER) | ||||
| 90987-T2004 |
GRS182 |
1 | ||
| 89211A - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89211-30020 |
GRS18# |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-T2004 |
GRS18# |
1 | ||
| Common parts | ||||
| 82715-30B20 | ||||
| 90119-06691 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
