GRS182L-DETQKC (2005)
Toyota Crown (China)
(0502- )25ROY,ROY,ROYEX,ROYG
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0N010 |
GRS18# |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-0N010 |
GRS18# |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0N010 |
GRS18# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0N020 |
GRS182..ROY,ROYG |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-30280 |
GRS182..ROY,ROYG MASTER KEY,W(*68) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-30270 |
GRS182..ROY,ROYG MASTER KEY,W(*68) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
GRS182..ROY,ROYG |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-30040 |
GRS182..ROY,ROYG SUB KEY |
1 | ||
| 89751-30090 |
GRS182..ROY,ROYG MASTER KEY |
2 | ||
| 89751-30091 |
GRS182..ROY,ROYG MASTER KEY |
2 | ||
| 89751-30041 |
GRS182..ROY,ROYG SUB KEY |
1 | ||
| 89758 - PACKING, DOOR CONTROL TRANSMITTER | ||||
| 89758-30010 |
GRS182..ROY,ROYG |
3 | ||
| 89759 - SCREW, DOOR CONTROL TRANSMITTER | ||||
| 89759-40010 |
GRS182..ROY,ROYG |
6 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-30230 |
GRS182..ROY,ROYG SUB KEY |
1 | ||
| 89904-30220 |
GRS182..ROY,ROYG MASTER KEY |
1 | ||
| 89904-30231 |
GRS182..ROY,ROYG SUB KEY |
1 | ||
| 89904-30221 |
GRS182..ROY,ROYG MASTER KEY |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-30100 |
GRS182..ROY,ROYG *268 |
1 | ||
| 89994-30110 |
GRS182..ROY,ROYG *269 |
1 | ||
| 89994-30120 |
GRS182..ROY,ROYG *270 |
1 | ||
| 89994-30090 |
GRS182..ROY,ROYG *267 |
1 | ||
| 89994-30091 |
GRS182..ROY,ROYG *267 |
1 | ||
| 89994-30121 |
GRS182..ROY,ROYG *270 |
1 | ||
| 89994-30101 |
GRS182..ROY,ROYG *268 |
1 | ||
| 89994-30111 |
GRS182..ROY,ROYG *269 |
1 | ||
| Common parts | ||||
| 90178-C0004 | ||||

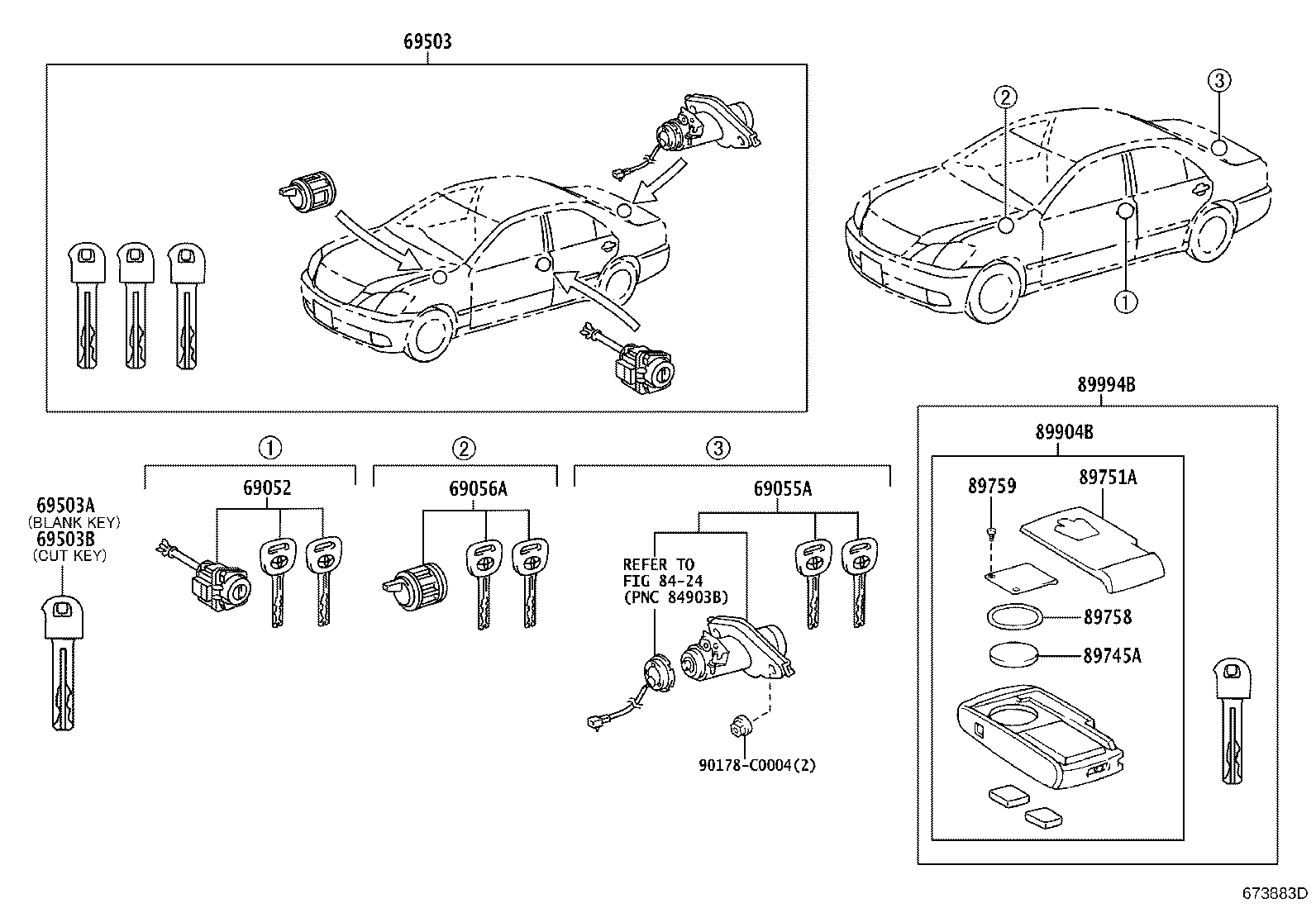

| Linked diagrams | ||||
| 8424 | ||||
