GRS182L-DETQKC (2005)
Toyota Crown (China)
Production
Feb 2005
-
Nov 2009
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

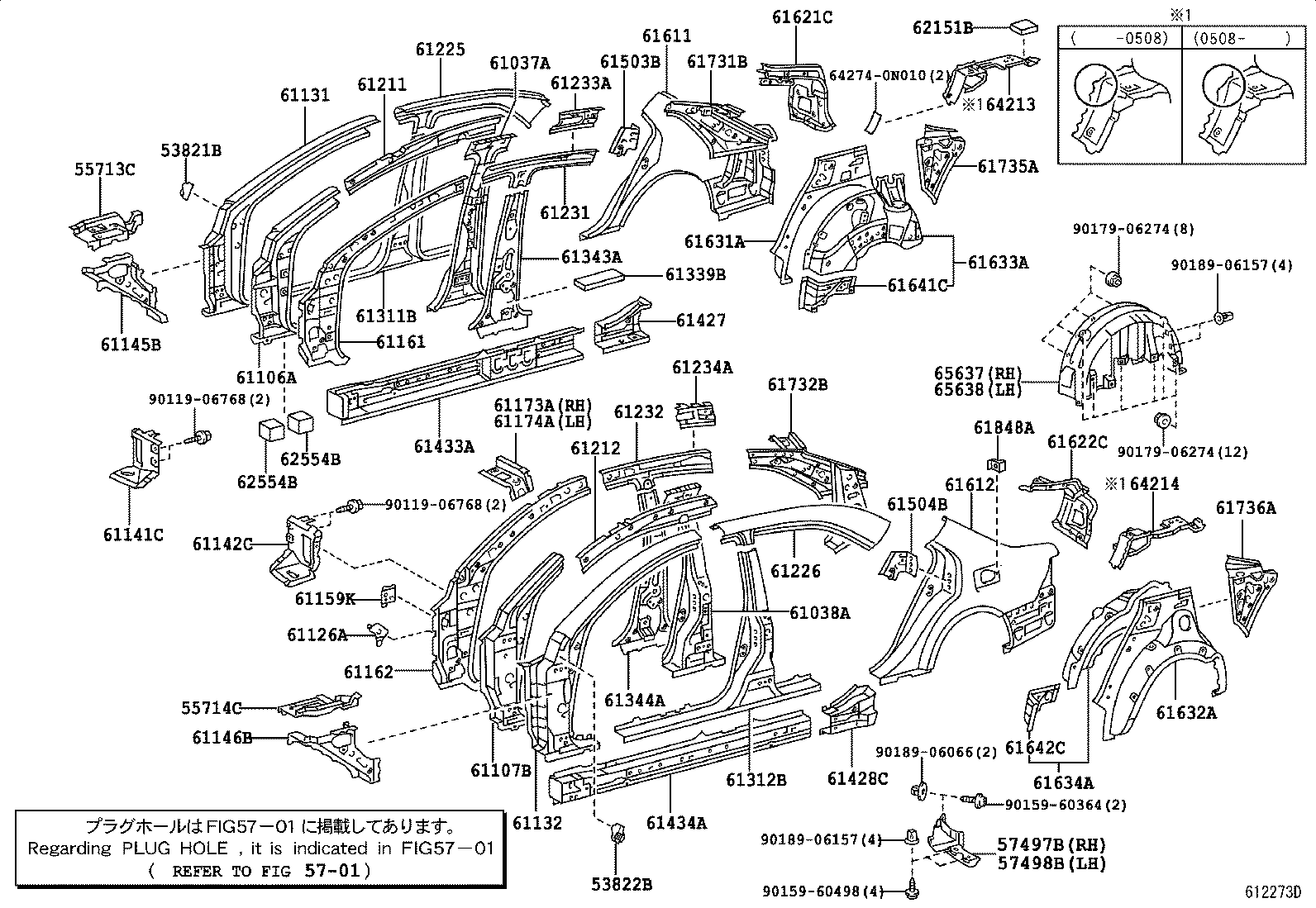

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-30130 |
GRS18# |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-30140 |
GRS18# |
1 | ||
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-30100 |
GRS18# |
1 | ||
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-30100 |
GRS18# |
1 | ||
| 57497B - SHIELD, REAR FLOOR HOUSING, RH | ||||
| 57497-0N010 |
GRS18# |
1 | ||
| 57498B - SHIELD, REAR FLOOR HOUSING, LH | ||||
| 57498-0N010 |
GRS18# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-0N010 |
GRS18# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-0N010 |
GRS18# |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-0N901 |
GRS18# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-0N901 |
GRS18# |
1 | ||
| 61126A - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61126-0N010 |
GRS18# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0N010 |
GRS18# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0N010 |
GRS18# |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-30160 |
GRS18# |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-30160 |
GRS18# |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-0N010 |
GRS18# |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-0N010 |
GRS18# |
1 | ||
| 61159K - EXTENSION, FRONT PILLER, LOWER LH | ||||
| 61159-0N010 |
GRS18# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30300 |
GRS18# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-0N010 |
GRS18# |
1 | ||
| 61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61173-0N010 |
GRS18# |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-0N010 |
GRS18# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-30270 |
GRS18# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-30270 |
GRS18# |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61225-0N010 |
GRS18# |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61226-0N010 |
GRS18# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-30390 |
GRS18# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-30390 |
GRS18# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-30060 |
GRS18# |
1 | ||
| 61233-0N010 |
GRS182 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-30050 |
GRS18# |
1 | ||
| 61234-0N010 |
GRS182 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-0N010 |
GRS18# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-0N010 |
GRS18# |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-0N010 |
GRS18# |
2 | ||
| 61339-30010 |
GRS18# |
2 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-30210 |
GRS182 |
1 | ||
| 61343-30211 |
GRS18# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-30221 |
GRS18# |
1 | ||
| 61344-30220 |
GRS182 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-0N010 |
GRS18# |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-0N010 |
GRS182 |
1 | ||
| 61428-0N010 |
GRS182 |
1 | ||
| 61433A - REINFORCEMENT, ROCKER PANEL, OUTER RH | ||||
| 61401-0N010 |
GRS18# |
1 | ||
| 61434A - REINFORCEMENT, ROCKER PANEL, OUTER LH | ||||
| 61402-0N010 |
GRS18# |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-0N010 |
GRS18# |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-0N010 |
GRS18# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0N010 |
GRS18# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0N010 |
GRS18# |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61063-0N010 |
GRS18# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61064-0N010 |
GRS18# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-0N010 |
GRS18# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-0N010 |
GRS182 |
1 | ||
| 61632-0N010 |
GRS182 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-0N010 |
GRS18# |
1 | ||
| 61607-0N011 |
GRS18# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-0N010 |
GRS182 |
1 | ||
| 61608-0N010 |
GRS182 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-0N010 |
GRS18# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-0N010 |
GRS18# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61701-0N010 |
GRS18# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61702-0N010 |
GRS182 |
1 | ||
| 61702-0N010 |
GRS182 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-0N010 |
GRS18# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-0N010 |
GRS182 |
1 | ||
| 61736-0N010 |
GRS182 |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-30080 |
GRS18# |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
GRS18# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GRS18# |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GRS18# |
4 | ||
| 64213 - EXTENSION, PACKAGE TRAY STRAINER, RH | ||||
| 64201-0N010 |
GRS182 |
1 | ||
| 64201-0N011 |
GRS18# |
1 | ||
| 64214 - EXTENSION, PACKAGE TRAY STRAINER, LH | ||||
| 64202-0N010 |
GRS182 |
1 | ||
| 64202-0N011 |
GRS18# |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-30040 |
GRS18# |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-30040 |
GRS18# |
1 | ||
| Common parts | ||||
| 64274-0N010 | ||||
| 90119-06768 | ||||
| 90159-60364 | ||||
| 90159-60498 | ||||
| 90179-06274 | ||||
| 90189-06066 | ||||
| 90189-06157 | ||||
