ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )ARS212

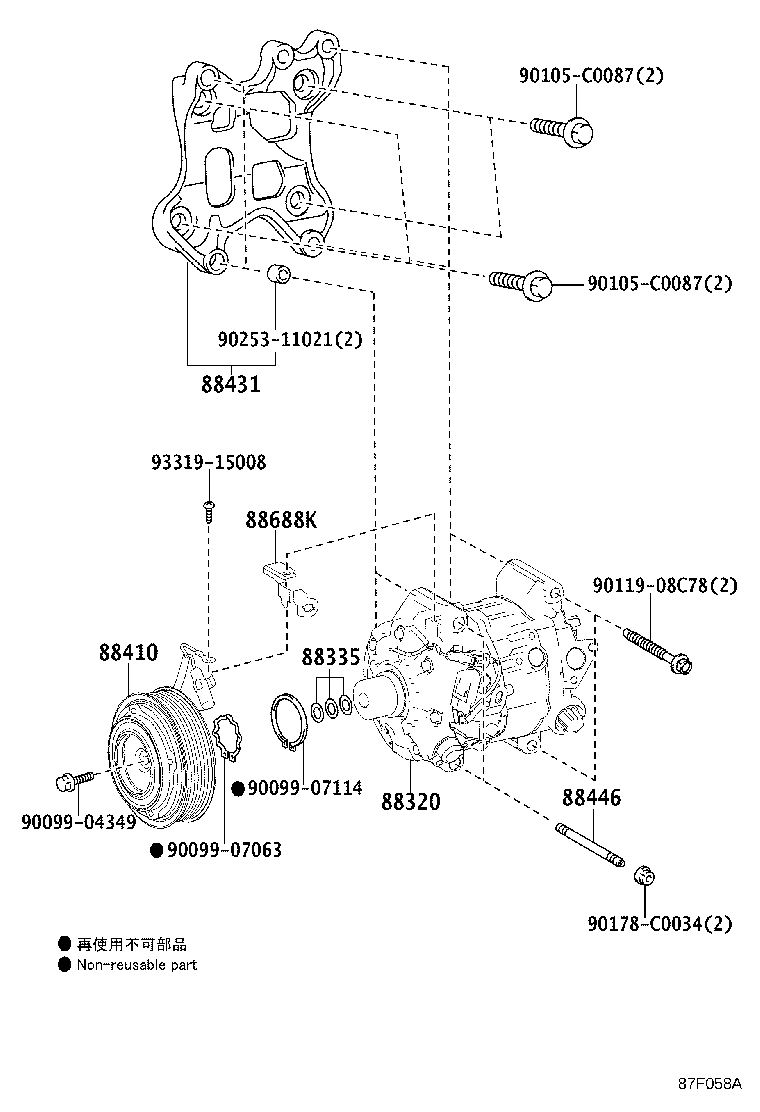

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0N020 |
ARS212 |
1 | ||
| 88320-3A510 |
ARS212 |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14020 |
ARS212,GRS218 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-0N010 |
ARS212 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 12502-0V060 |
ARS212 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60050 |
ARS212 |
2 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-33570 |
ARS212,GRS218 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90105-C0087 | ||||
| 90119-08C78 | ||||
| 90178-C0034 | ||||
| 90253-11021 | ||||
| 93319-15008 | ||||
