ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 8(1508- )ARS212
Click highlighted areas on diagram

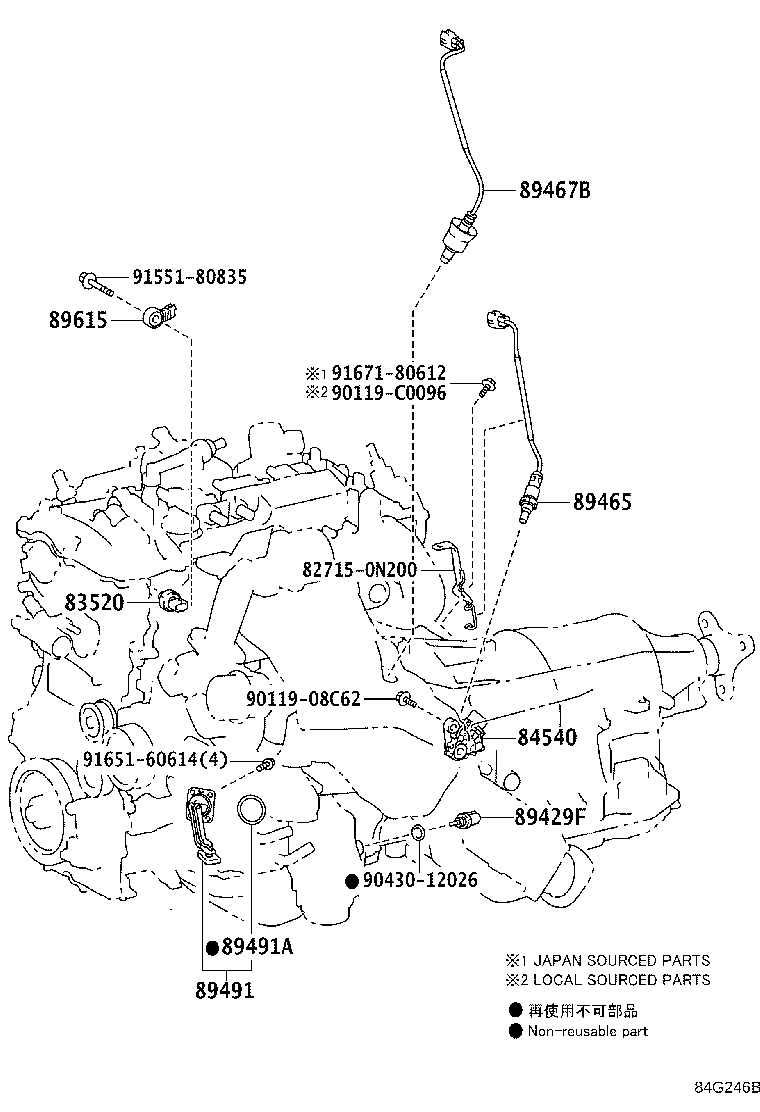

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
ARS212 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
ARS212 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ARS212 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0N060 |
ARS212 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0N010 |
ARS212 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30080 |
ARS212 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
ARS212,GRS218 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ARS212 |
1 | ||
| Common parts | ||||
| 82715-0N200 | ||||
| 90119-08C62 | ||||
| 90119-C0096 | ||||
| 90430-12026 | ||||
| 91551-80835 | ||||
| 91651-60614 | ||||
| 91671-80612 | ||||
