ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

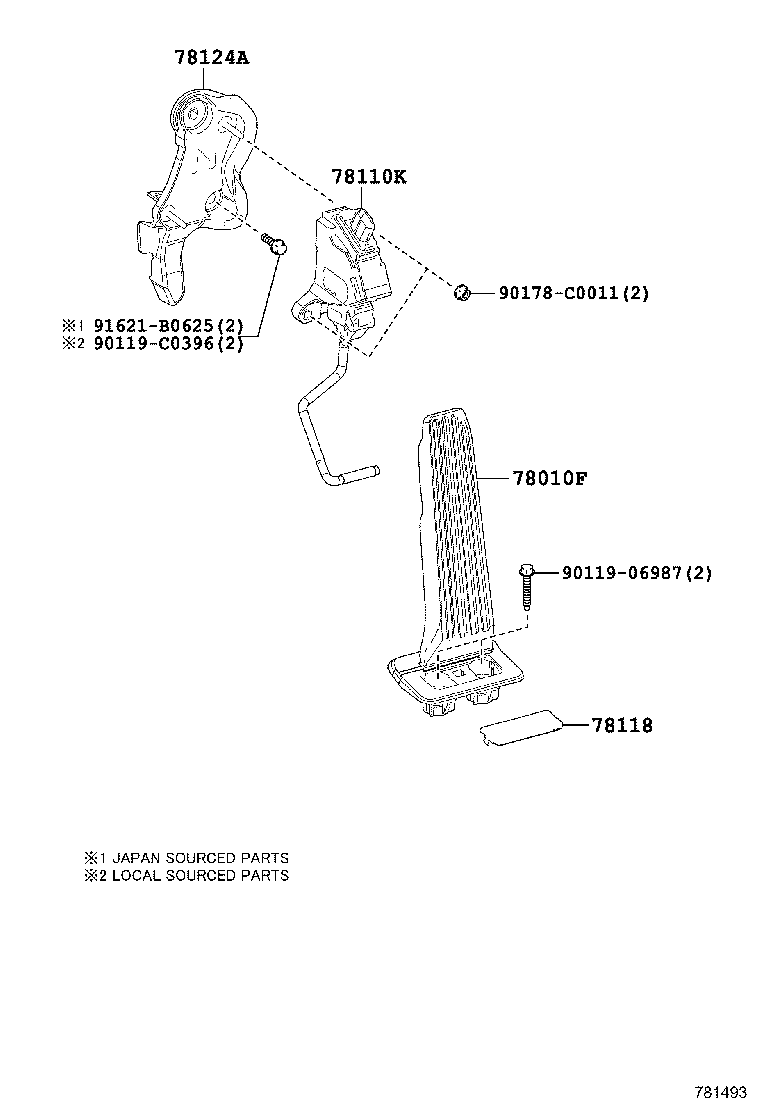

Click highlighted areas on diagram

diagram 78010F 78110K 78118 78124A 9011906987 90119C0396 90178C0011 91621B0625
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78101-0P020

ARS212,GRS218

 1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-0N010

ARS212,GRS218

 1
78118 - PAD, ACCELERATOR PEDAL
78117-0P010

ARS212,GRS218

 1
78124A - BRACKET, ACCELERATOR PEDAL ROD
78125-0N010

ARS212,GRS218

 1
Common parts
90119-06987
90119-C0396
90178-C0011
91621-B0625
