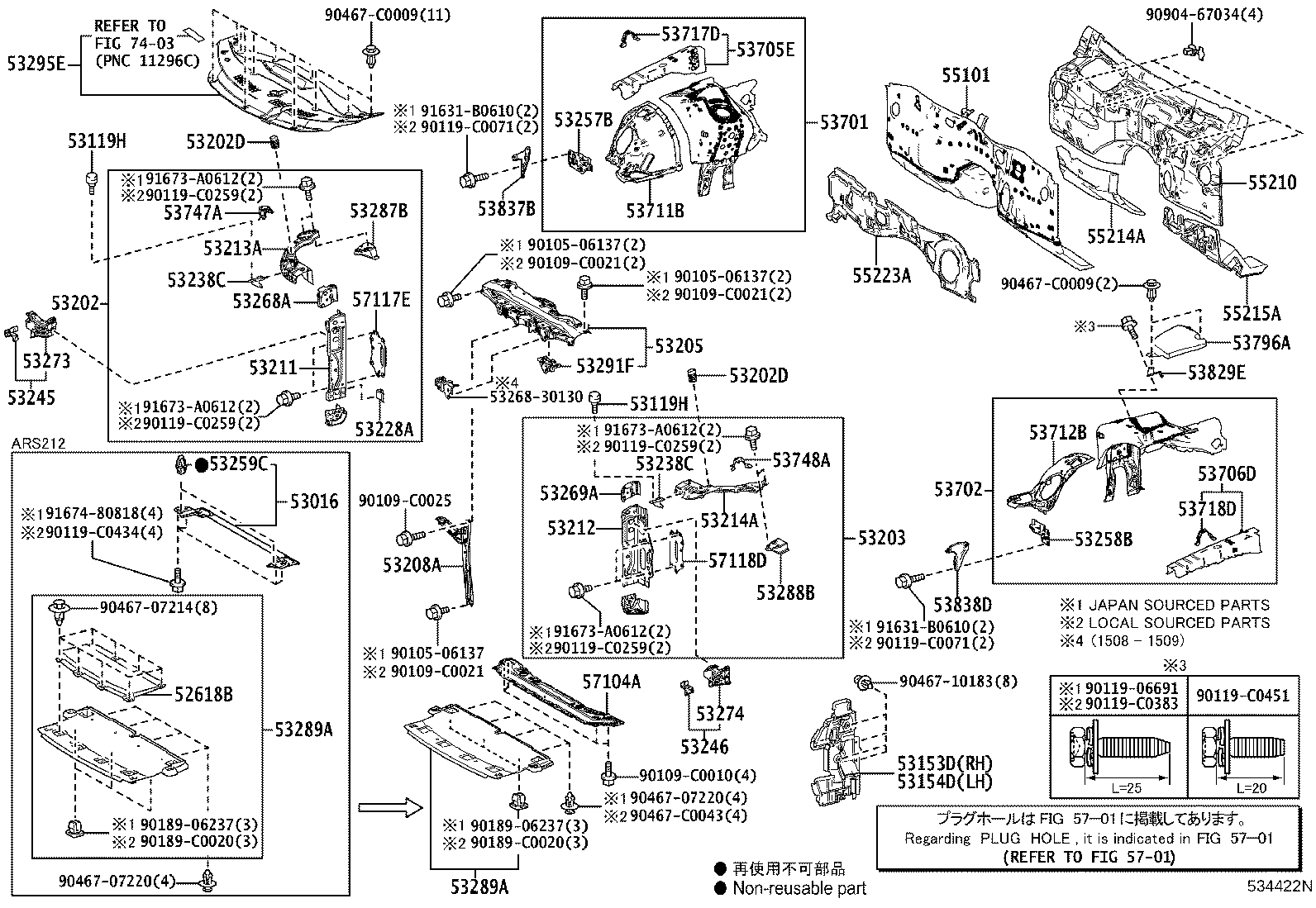

ARS212L-DEZUTC (2015)
Toyota Crown (China)
(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52618B - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0N010 |
ARS212 |
1 | ||
| 53016 - ROD SUB-ASSY, RADIATOR BRACE | ||||
| 53016-0N010 |
ARS212 |
1 | ||
| 53119H - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ARS212,GRS218 |
2 | ||
| 53119H - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ARS212,GRS218 |
2 | ||
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-0N050 |
ARS212,GRS218 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-0N050 |
ARS212,GRS218 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-0N030 |
ARS212,GRS218 |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-50010 |
ARS212,GRS218 |
2 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-50010 |
ARS212,GRS218 |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-0N030 |
ARS212,GRS218 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-0N021 |
ARS212,GRS218 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-0N070 |
ARS212,GRS218 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-0N020 |
ARS212,GRS218 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-0N020 |
ARS212,GRS218 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-0N020 |
ARS212,GRS218 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0N020 |
ARS212,GRS218 |
1 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-0N010 |
ARS212,GRS218 |
1 | ||
| 53238C - BRACKET, HOOD BUMPER MOUNTING, RH | ||||
| 53238-0N020 |
ARS212,GRS218 |
2 | ||
| 53238C - BRACKET, HOOD BUMPER MOUNTING, RH | ||||
| 53238-0N020 |
ARS212,GRS218 |
2 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-0N010 |
ARS212,GRS218 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-0N010 |
ARS212,GRS218 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-0N020 |
ARS212,GRS218 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-0N010 |
ARS212,GRS218 |
1 | ||
| 53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL | ||||
| 53259-0N010 |
ARS212 |
2 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-0N010 |
ARS212,GRS218 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-0N010 |
ARS212,GRS218 |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-0N020 |
ARS212,GRS218 |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-0N020 |
ARS212,GRS218 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-0N020 |
ARS212,GRS218 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-0N020 |
ARS212,GRS218 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0N050 |
ARS212 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0N050 |
ARS212 |
1 | ||
| 53291F - PLATE, RADIATOR SUPPORT | ||||
| 53291-0N011 |
ARS212,GRS218 |
1 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-0N070 |
ARS212,GRS218 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0N040 |
ARS212,GRS218 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0N040 |
ARS212,GRS218 |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-0N030 |
ARS212,GRS218 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-0N030 |
ARS212,GRS218 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-0N020 |
ARS212,GRS218 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-0N020 |
ARS212,GRS218 |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-0N020 |
ARS212,GRS218 |
1 | ||
| 53718D - GUSSET, FENDER APRON, LH | ||||
| 53717-0N020 |
ARS212,GRS218 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-0N020 |
ARS212,GRS218 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-0N020 |
ARS212,GRS218 |
1 | ||
| 53796A - COVER, ENGINE ROOM SIDE, LH | ||||
| 53796-0N031 |
ARS212,GRS218 |
1 | ||
| 53796-0N030 |
ARS212,GRS218 |
1 | ||
| 53829E - BRACKET, FRONT FENDER TO COWL LOUVER MOUNT, LH | ||||
| 53829-0N010 |
ARS212,GRS218 |
1 | ||
| 53837B - BRACKET, FRONT SIDE PANEL, NO.2 | ||||
| 53837-0N020 |
ARS212,GRS218 |
1 | ||
| 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-0N020 |
ARS212,GRS218 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0N020 |
ARS212,GRS218 |
1 | ||
| 55101-0N021 |
ARS212,GRS218 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0N040 |
ARS212;GRS218..U |
1 | ||
| 55210-0N041 |
ARS212;GRS218..U |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0N011 |
ARS212,GRS218 |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-0N030 |
ARS212,GRS218 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-0N020 |
ARS212,GRS218 |
1 | ||
| 55223-0N021 |
ARS212,GRS218 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-0N010 |
ARS212,GRS218 |
1 | ||
| 57117E - RETAINER, FRONT BUMPER ARM, RH | ||||
| 57117-0P010 |
ARS212,GRS218 |
1 | ||
| 57118D - RETAINER, FRONT BUMPER ARM, LH | ||||
| 57118-0P010 |
ARS212,GRS218 |
1 | ||
| Common parts | ||||
| 53268-30130 | ||||
| 90105-06137 | ||||
| 90109-C0010 | ||||
| 90109-C0021 | ||||
| 90109-C0025 | ||||
| 90119-06691 | ||||
| 90119-C0071 | ||||
| 90119-C0259 | ||||
| 90119-C0383 | ||||
| 90119-C0434 | ||||
| 90119-C0451 | ||||
| 90189-06237 | ||||
| 90189-C0020 | ||||
| 90467-07214 | ||||
| 90467-07220 | ||||
| 90467-10183 | ||||
| 90467-C0009 | ||||
| 90467-C0043 | ||||
| 90904-67034 | ||||
| 91631-B0610 | ||||
| 91673-A0612 | ||||
| 91674-80818 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
