ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )

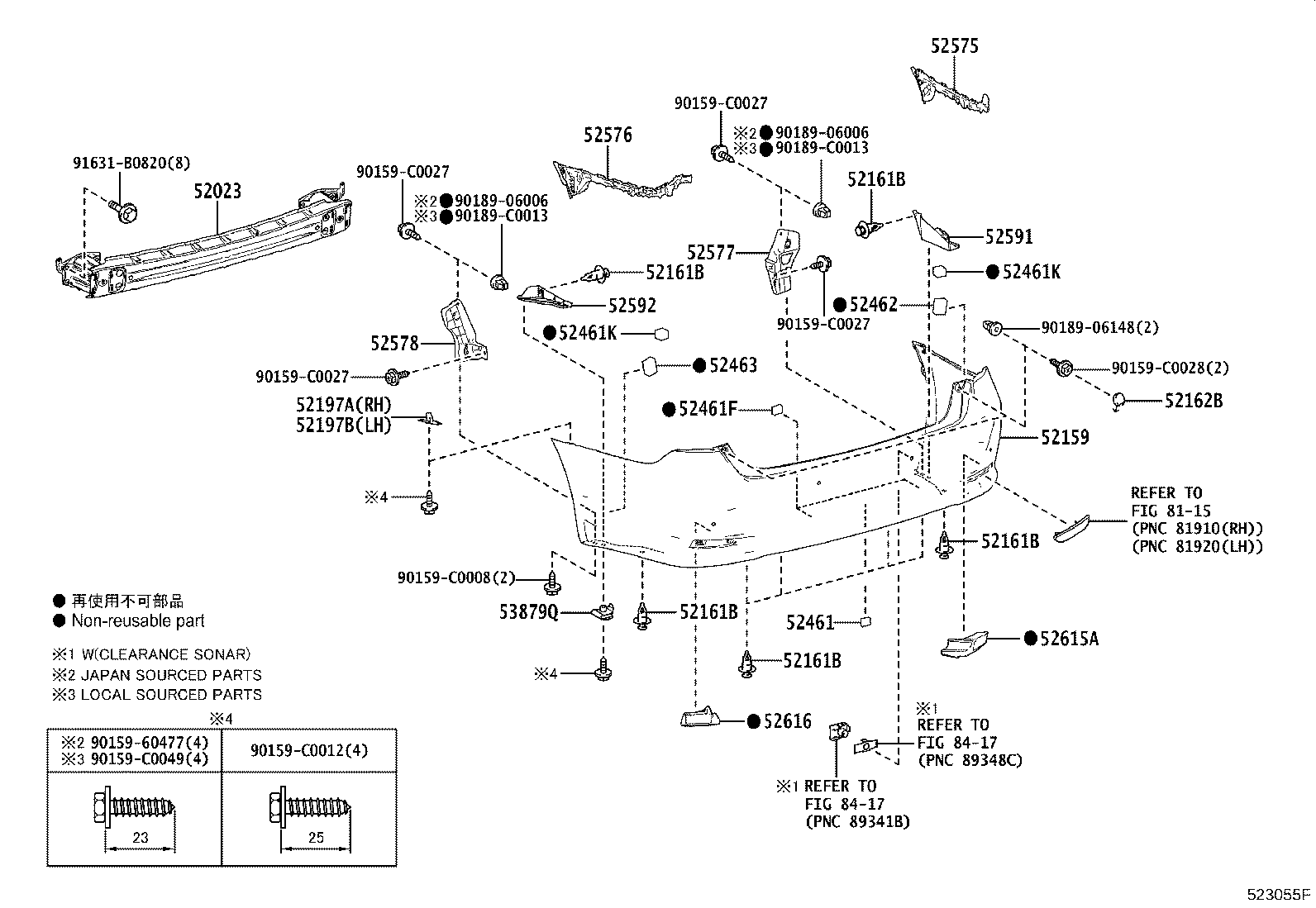

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-0N040 |
ARS212,GRS218 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0N917 |
ARS212,GRS218..Q,S,U PAINT REQ. |
1 | ||
| 52159-0N916 |
ARS212,GRS218..B PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS212,GRS218 |
8 | ||
| 52161-02040 |
ARS212,GRS218 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS212,GRS218 |
8 | ||
| 52161-02040 |
ARS212,GRS218 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS212,GRS218 |
8 | ||
| 52161-02040 |
ARS212,GRS218 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS212,GRS218 |
8 | ||
| 52161-02040 |
ARS212,GRS218 |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS212,GRS218 |
8 | ||
| 52161-02040 |
ARS212,GRS218 |
8 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-0N060 |
ARS212,GRS218 |
2 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-0N020 |
ARS212,GRS218 |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-0N020 |
ARS212,GRS218 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52462-0N060 |
ARS212,GRS218 |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52462-0N050 |
ARS212,GRS218 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-0N040 |
ARS212,GRS218 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-0N040 |
ARS212,GRS218 |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-0N030 |
ARS212,GRS218 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-0N030 |
ARS212,GRS218 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0N010 |
ARS212,GRS218 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0N010 |
ARS212,GRS218 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-0N010 |
ARS212,GRS218 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-0N010 |
ARS212,GRS218 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0N010 |
ARS212,GRS218 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0N010 |
ARS212,GRS218 |
1 | ||
| 52615A - ABSORBER, REAR BUMPER ENERGY, RH | ||||
| 52615-0N040 |
ARS212,GRS218 |
1 | ||
| 52616 - ABSORBER, REAR BUMPER ENERGY, LH | ||||
| 52616-0N010 |
ARS212,GRS218 |
1 | ||
| 53879Q - RETAINER, REAR FENDER LINER | ||||
| 53879-0N020 |
ARS212,GRS218 |
2 | ||
| 53879-17020 |
ARS212,GRS218 |
2 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-C0008 | ||||
| 90159-C0012 | ||||
| 90159-C0027 | ||||
| 90159-C0028 | ||||
| 90159-C0049 | ||||
| 90189-06006 | ||||
| 90189-06148 | ||||
| 90189-C0013 | ||||
| 91631-B0820 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8417 | ||||
