ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1501- )
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51210-0N011 |
ARS212,GRS218 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0N030 |
ARS212 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-0N020 |
ARS212,GRS218 |
1 | ||
| 51249A - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-0N010 |
ARS212 |
1 | ||
| 52255B - BRACE, FRONT SUSPENSION MEMBER | ||||
| 52255-0N010 |
ARS212,GRS218 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-0N020 |
ARS212,GRS218 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-0P020 |
ARS212,GRS218 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-0P020 |
ARS212,GRS218 |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-0N020 |
ARS212,GRS218 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-0N010 |
ARS212,GRS218 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-0N010 |
ARS212,GRS218 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-0N010 |
ARS212,GRS218 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-0N010 |
ARS212,GRS218 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-30060 |
ARS212,GRS218 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-0P010 |
ARS212,GRS218 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-0P010 |
ARS212,GRS218 |
1 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-0N010 |
ARS212,GRS218 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-0N010 |
ARS212,GRS218 |
1 | ||
| 58252C - BRACE, FLOOR PANEL, REAR NO.1 | ||||
| 58252-0N010 |
ARS212,GRS218 |
1 | ||
| Common parts | ||||
| 90119-08B13 | ||||
| 90119-08C56 | ||||
| 90119-10636 | ||||
| 90119-14154 | ||||
| 90119-16021 | ||||
| 90119-C0023 | ||||
| 90119-C0145 | ||||
| 90119-C0179 | ||||
| 90119-C0188 | ||||
| 90119-C0472 | ||||
| 90178-C0063 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 90951-01006 | ||||
| 91673-L0625 | ||||
| 91674-80820 | ||||
| Linked diagrams | ||||
| 5305 | ||||

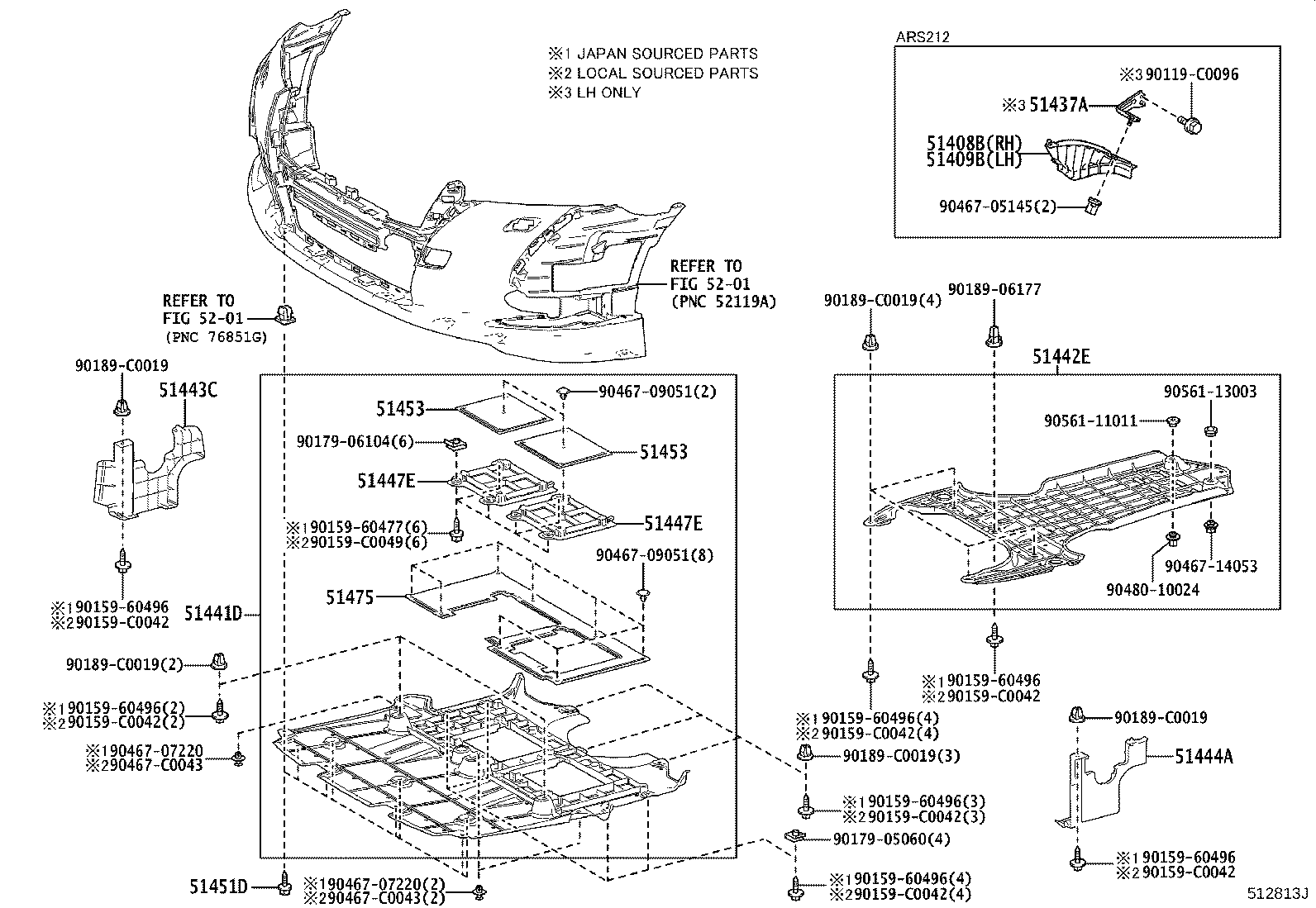

ILLUST NO. 2 OF 2(1501- )
Click highlighted areas on diagram
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51477-0N011 |
ARS212 |
1 | ||
| 51409B - COVER SUB-ASSY, ENGINE UNDER, LH | ||||
| 51478-0N011 |
ARS212 |
1 | ||
| 51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH | ||||
| 51437-0N010 |
ARS212 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-0N060 |
ARS212,GRS218 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-0N030 |
ARS212 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-0N010 |
ARS212,GRS218 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-0N010 |
ARS212,GRS218 |
1 | ||
| 51447E - REINFORCEMENT, ENGINE UNDER COVER | ||||
| 51447-0N030 |
ARS212,GRS218 |
2 | ||
| 51447E - REINFORCEMENT, ENGINE UNDER COVER | ||||
| 51447-0N030 |
ARS212,GRS218 |
2 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-C0049 |
ARS212,GRS218 |
7 | ||
| 51453 - SILENCER, ENGINE UNDER COVER, FRONT | ||||
| 51453-0N010 |
ARS212,GRS218 |
2 | ||
| 51453 - SILENCER, ENGINE UNDER COVER, FRONT | ||||
| 51453-0N010 |
ARS212,GRS218 |
2 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-0N030 |
ARS212,GRS218 |
1 | ||
| Common parts | ||||
| 90119-C0096 | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90159-C0042 | ||||
| 90159-C0049 | ||||
| 90179-05060 | ||||
| 90179-06104 | ||||
| 90189-06177 | ||||
| 90189-C0019 | ||||
| 90467-05145 | ||||
| 90467-07220 | ||||
| 90467-09051 | ||||
| 90467-14053 | ||||
| 90467-C0043 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
| Linked diagrams | ||||
| 5201 | ||||
