ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )

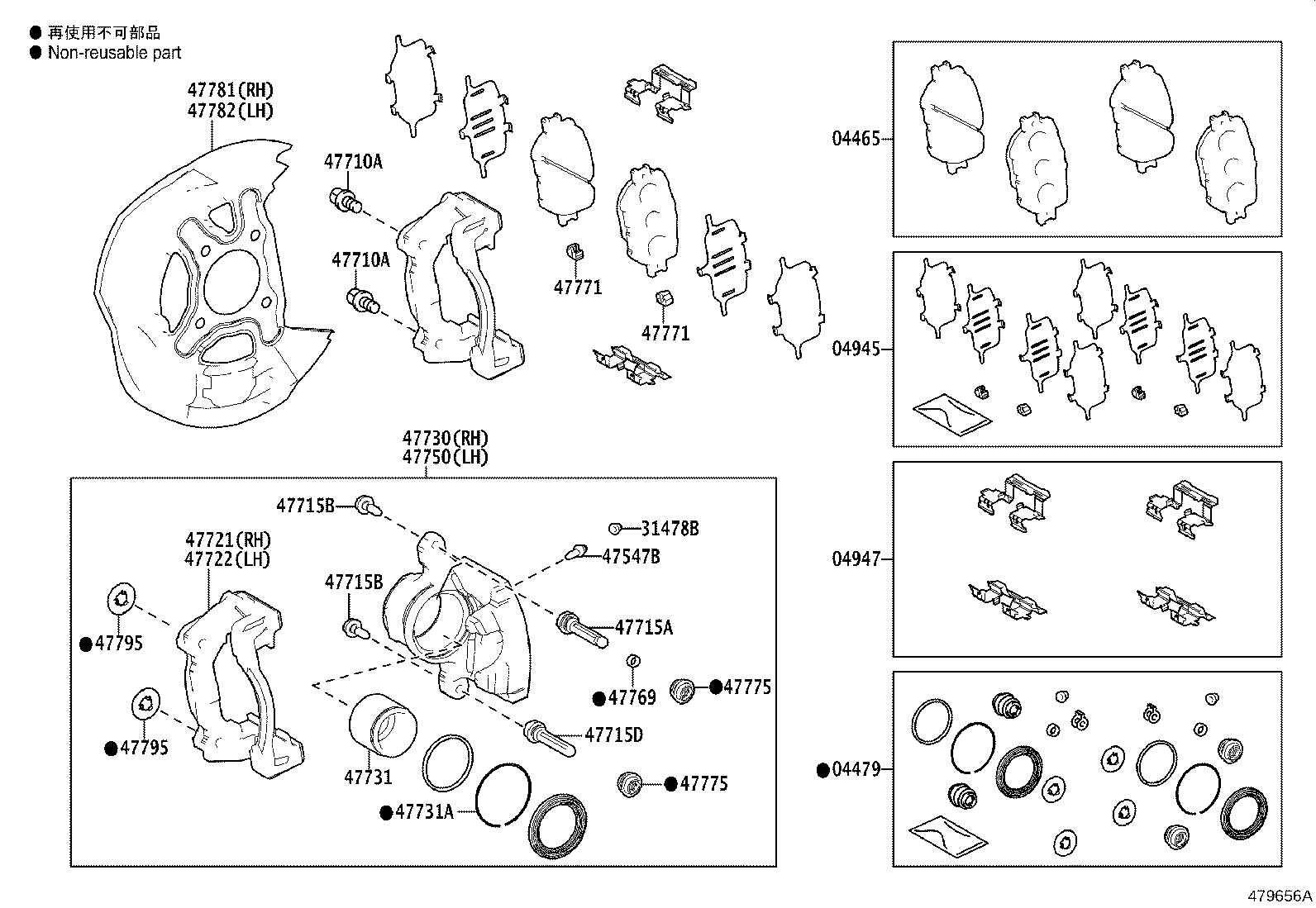

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-30330 |
ARS212,GRS218 MARK NBK D6893H |
1 | ||
| 04465-30480 |
ARS212,GRS218 MARK NBK D6893H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-0N031 |
ARS212,GRS218 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0P010 |
ARS212,GRS218 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0N010 |
ARS212,GRS218 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
ARS212,GRS218 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-C0372 |
ARS212,GRS218 *12-1.25PX45-30,(L) |
4 | ||
| 90119-12415 |
ARS212,GRS218 *12-1.25PX45-30,(J) |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-C0372 |
ARS212,GRS218 *12-1.25PX45-30,(L) |
4 | ||
| 90119-12415 |
ARS212,GRS218 *12-1.25PX45-30,(J) |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-0P010 |
ARS212,GRS218 |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-0P010 |
ARS212,GRS218 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-0P011 |
ARS212,GRS218 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-0P011 |
ARS212,GRS218 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0P011 |
ARS212,GRS218 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-33070 |
ARS212,GRS218 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90520-86005 |
ARS212,GRS218 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0P011 |
ARS212,GRS218 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-0P010 |
ARS212,GRS218 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-30090 |
ARS212,GRS218 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-30090 |
ARS212,GRS218 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
ARS212,GRS218 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
ARS212,GRS218 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0N010 |
ARS212,GRS218 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0N010 |
ARS212,GRS218 |
1 | ||
| 47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1 | ||||
| 47795-30520 |
ARS212,GRS218 |
4 | ||
| 47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1 | ||||
| 47795-30520 |
ARS212,GRS218 |
4 | ||
