ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )

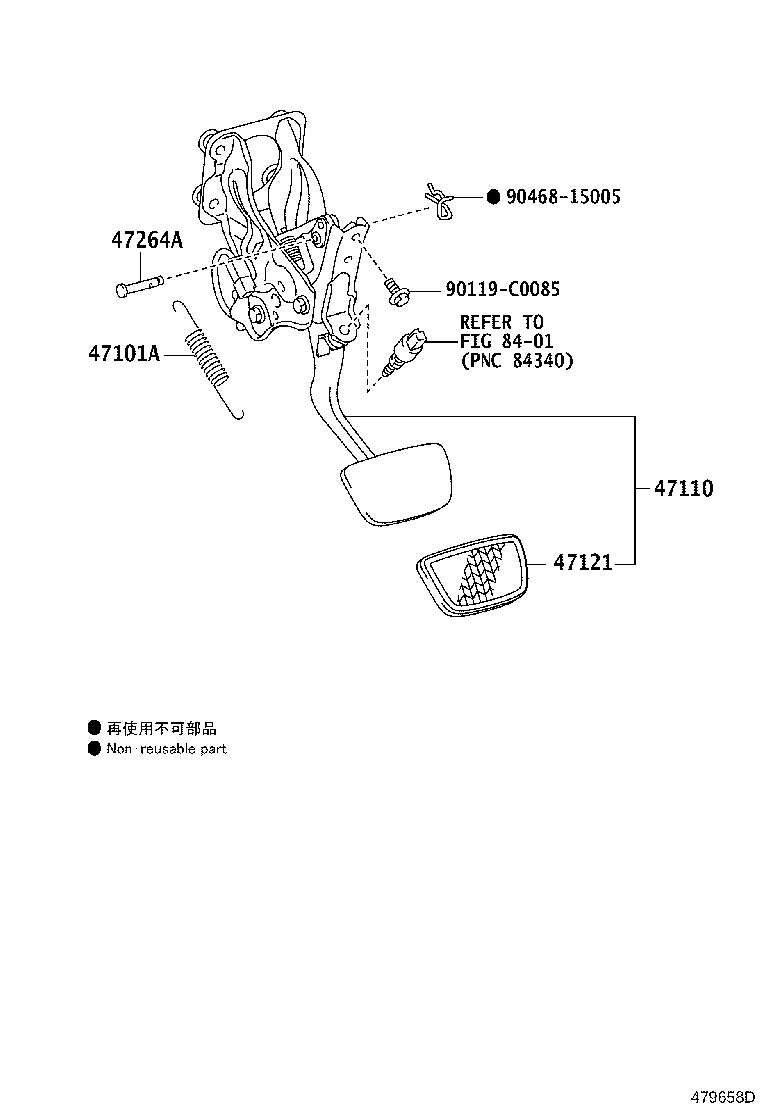

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13009 |
ARS212,GRS218 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-0N040 |
ARS212,GRS218 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-30080 |
ARS212,GRS218 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-06180 |
ARS212,GRS218 |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90468-15005 | ||||
| Linked diagrams | ||||
| 8401 | ||||
