ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

Click highlighted areas on diagram

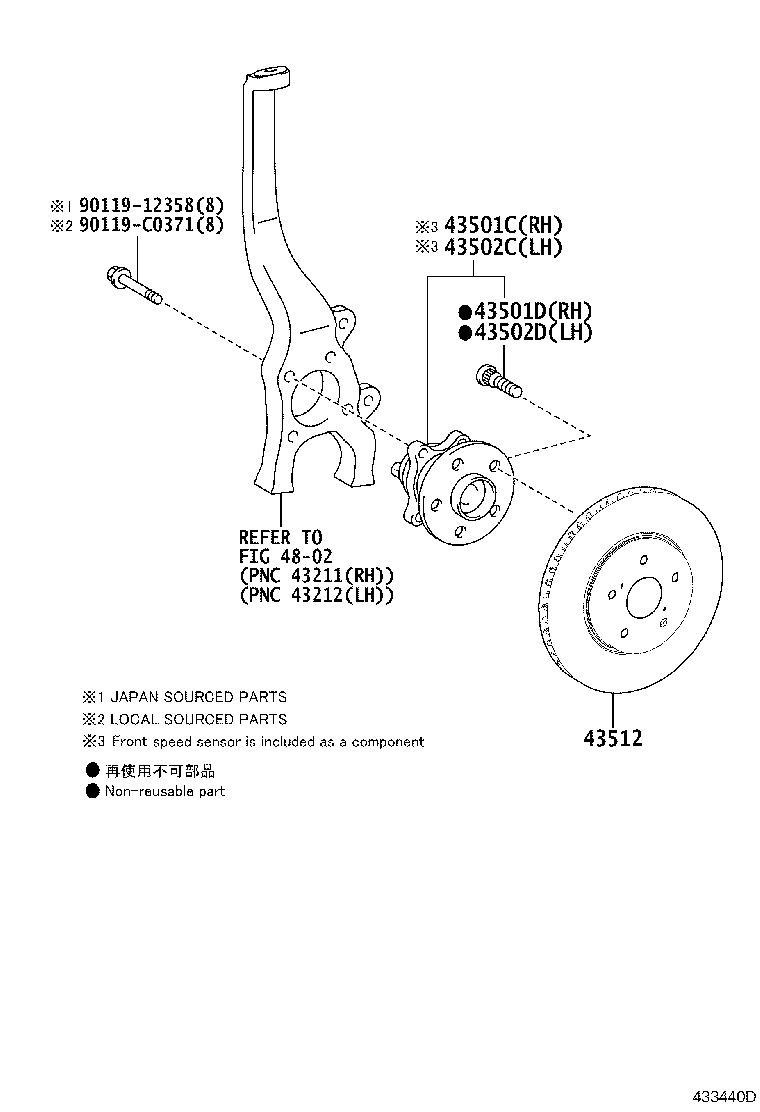

diagram 43501C 43501D 43502C 43502D 43512 4802 9011912358 90119C0371
Part # Description Qty Price
43512 - DISC, FRONT
43512-0N040

ARS212,GRS218

 2
Common parts
90119-12358
90119-C0371
Linked diagrams
4802
