ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1501- )

Click highlighted areas on diagram

DISC WHEEL

diagram 04423 42601 42601A 42601C 42607 42611G 42611J 42611U 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

ARS212,GRS218..Q,S,U

 4
04423-0N010

ARS212,GRS218..Q,S,U

 4
42601 - WHEEL, DISC
42611-0N080

ARS212,GRS218..U

18X8J, #,TYPE F:REFER ILLUST.

 4
4261A-0N030

ARS212..S

17X7.5J, #,VALUE PACKAGE,TYPE D:REFER ILLUST.

 4
4261A-0N010

ARS212,GRS218..B,S

17X7.5J, #,TYPE B:REFER ILLUST.

 4
4261A-0N040

ARS212..S

17X7.5J, #,VALUE PACKAGE,TYPE E:REFER ILLUST.

 4
4261A-0N020

ARS212,GRS218..B,S

17X7.5J, #,TYPE C:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-30F30

ARS212,GRS218

18X4T,TYPE A:REFER ILLUST.

 1
42611-0N110

ARS212,GRS218

18X4T,TYPE G:REFER ILLUST.

 1
42611-30F31

ARS212,GRS218

18X4T,TYPE A:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-C1001

ARS212,GRS218

 20
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-0R020

ARS212,GRS218..Q,S,U

 4
42607-33040

ARS212,GRS218..Q,S,U

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05028

ARS212,GRS218..B

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

ARS212,GRS218

 1
42611U - CAP, TIRE VALVE
90942-C5001

ARS212,GRS218..Q,S,U

 4
90942-05029

ARS212,GRS218..B

 4
90942-05039

ARS212,GRS218..Q,S,U

 4
42611U - CAP, TIRE VALVE
90942-C5001

ARS212,GRS218..Q,S,U

 4
90942-05029

ARS212,GRS218..B

 4
90942-05039

ARS212,GRS218..Q,S,U

 4

ILLUST NO. 3 OF 3(1501- )

Click highlighted areas on diagram

BALANCE WEIGHT

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273 90942C3022 90942C3023 90942C3024 90942C3025 90942C3026 90942C3027 90942C3028 90942C3029 90942C3030 90942C3031 90942C3032 90942C3033 90942C3034 90942C3035 90942C3036 90942C3037 90942C3038 90942C3039 90942C3041 90942C3045 90942C3057
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
90942-C3022
90942-C3023
90942-C3024
90942-C3025
90942-C3026
90942-C3027
90942-C3028
90942-C3029
90942-C3030
90942-C3031
90942-C3032
90942-C3033
90942-C3034
90942-C3035
90942-C3036
90942-C3037
90942-C3038
90942-C3039
90942-C3041
90942-C3045
90942-C3057

ILLUST NO. 2 OF 3(1501- )

Click highlighted areas on diagram

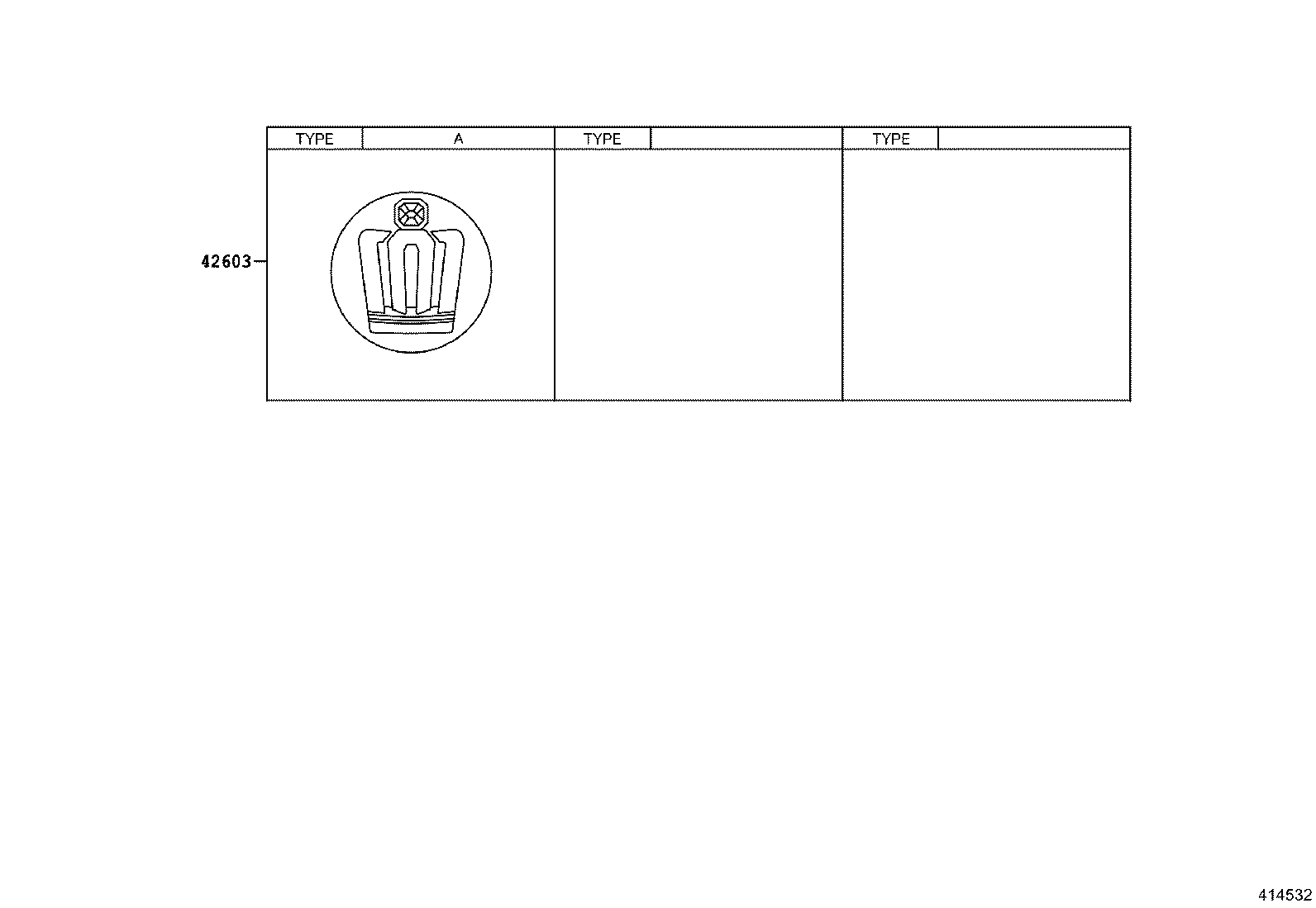

WHEEL HUB ORNAMENT

diagram 42603
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-0N020

ARS212,GRS218

*ALU,TYPE A:REFER ILLUST.

 4
