ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1501- )

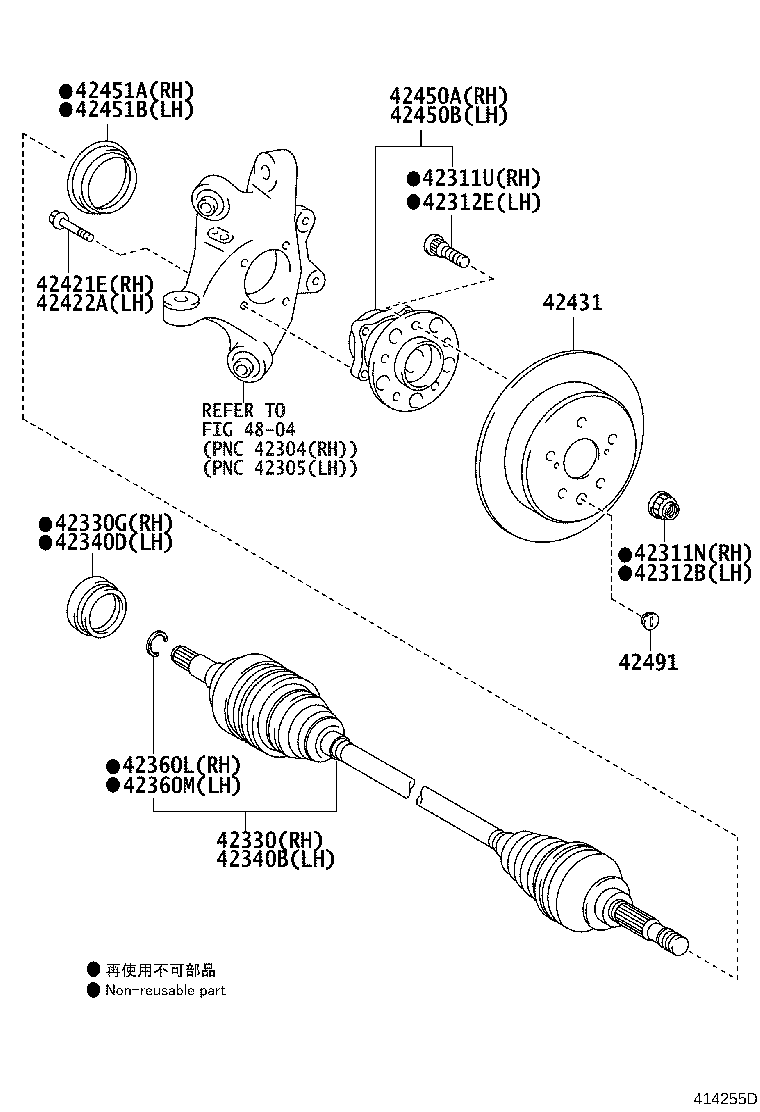

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-26001 |
ARS212,GRS218 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-26001 |
ARS212,GRS218 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-0N030 |
ARS212 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-47018 |
ARS212 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-0N030 |
ARS212 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-47019 |
ARS212 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90521-34003 |
ARS212,GRS218 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90521-34003 |
ARS212,GRS218 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90110-C0005 |
ARS212,GRS218 (L) |
4 | ||
| 90110-12009 |
ARS212,GRS218 (J) |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90110-12009 |
ARS212,GRS218 (J) |
4 | ||
| 90110-C0005 |
ARS212,GRS218 (L) |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-0P010 |
ARS212,GRS218 |
2 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 42451-30020 |
ARS212,GRS218 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 42451-30020 |
ARS212,GRS218 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-50010 |
ARS212,GRS218 |
2 | ||
| Linked diagrams | ||||
| 4804 | ||||
