ARS212L-DEZUTC (2015)
Toyota Crown (China)
(1508- )ARS212
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41102B - CARRIER SUB-ASSY, DIFFERENTIAL W/MOUNT | ||||
| 41102-30010 |
ARS212 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-30B70 |
ARS212 *FGR=47:15=3.133 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
ARS212,GRS218 |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
ARS212,GRS218 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
ARS212,GRS218 |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
ARS212,GRS218 |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03077 |
ARS212,GRS218 |
1 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14008 |
ARS212 |
2 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14008 |
ARS212 |
2 | ||
| 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-C0003 |
ARS212 |
1 | ||
| 41110W - BOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90119-12449 |
ARS212,GRS218 |
2 | ||
| 90109-12081 |
ARS212,GRS218 |
2 | ||
| 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90250-10017 |
ARS212 |
2 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41108-50050 |
ARS212 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10417 |
ARS212,GRS218 |
8 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-30020 |
ARS212 |
1 | ||
| 41183A - BOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR | ||||
| 91651-60614 |
ARS212 |
1 | ||
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-0N010 |
ARS212 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-59285 |
ARS212 *FGR=47:15=3.133 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-45056 |
ARS212 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-34024 |
ARS212 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-44005 |
ARS212 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-70014 |
ARS212 T=2.00,MARK 00 |
1 | ||
| 90201-70018 |
ARS212 T=2.04,MARK 04 |
1 | ||
| 90201-70030 |
ARS212 T=2.16,MARK 16 |
1 | ||
| 90201-70022 |
ARS212 T=2.08,MARK 08 |
1 | ||
| 90201-70042 |
ARS212 T=2.28,MARK 28 |
1 | ||
| 90201-70036 |
ARS212 T=2.22,MARK 22 |
1 | ||
| 90201-70006 |
ARS212 T=1.92,MARK 92 |
1 | ||
| 90201-70008 |
ARS212 T=1.94,MARK 94 |
1 | ||
| 90201-70020 |
ARS212 T=2.06,MARK 06 |
1 | ||
| 90201-70012 |
ARS212 T=1.98,MARK 98 |
1 | ||
| 90201-70010 |
ARS212 T=1.96,MARK 96 |
1 | ||
| 90201-70004 |
ARS212 T=1.90,MARK 90 |
1 | ||
| 90201-70024 |
ARS212 T=2.10,MARK 10 |
1 | ||
| 90201-70016 |
ARS212 T=2.02,MARK 02 |
1 | ||
| 90201-70028 |
ARS212 T=2.14,MARK 14 |
1 | ||
| 90201-70040 |
ARS212 T=2.26,MARK 26 |
1 | ||
| 90201-70032 |
ARS212 T=2.18,MARK 18 |
1 | ||
| 90201-70002 |
ARS212 T=1.88,MARK 88 |
1 | ||
| 90201-70038 |
ARS212 T=2.24,MARK 24 |
1 | ||
| 90201-70034 |
ARS212 T=2.20,MARK 20 |
1 | ||
| 90201-70026 |
ARS212 T=2.12,MARK 12 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-30040 |
ARS212 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-26005 |
ARS212 OD=40.4 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-50010 |
ARS212 |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-30050 |
ARS212 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-24010 |
ARS212 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-53041 |
ARS212 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50087 |
ARS212 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50087 |
ARS212 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-99063 |
ARS212 T=3.68,MARK 68 |
2 | ||
| 90521-99066 |
ARS212 T=3.74,MARK 74 |
2 | ||
| 90521-99062 |
ARS212 T=3.66,MARK 66 |
2 | ||
| 90521-99065 |
ARS212 T=3.72,MARK 72 |
2 | ||
| 90521-99067 |
ARS212 T=3.76,MARK 76 |
2 | ||
| 90521-99068 |
ARS212 T=3.78,MARK 78 |
2 | ||
| 90521-99074 |
ARS212 T=3.88,MARK 88 |
2 | ||
| 90521-99072 |
ARS212 T=3.84,MARK 84 |
2 | ||
| 90521-99076 |
ARS212 T=3.92,MARK 92 |
2 | ||
| 90521-99070 |
ARS212 T=3.80,MARK 80 |
2 | ||
| 90521-99083 |
ARS212 T=4.04,MARK 04 |
2 | ||
| 90521-99064 |
ARS212 T=3.70,MARK 70 |
2 | ||
| 90521-99079 |
ARS212 T=3.98,MARK 98 |
2 | ||
| 90521-99077 |
ARS212 T=3.94,MARK 94 |
2 | ||
| 90521-99086 |
ARS212 T=4.10,MARK 10 |
2 | ||
| 90521-99084 |
ARS212 T=4.06,MARK 06 |
2 | ||
| 90521-99087 |
ARS212 T=4.12,MARK 12 |
2 | ||
| 90521-99085 |
ARS212 T=4.08,MARK 08 |
2 | ||
| 90521-99081 |
ARS212 T=4.00,MARK 00 |
2 | ||
| 90521-99073 |
ARS212 T=3.86,MARK 86 |
2 | ||
| 90521-99089 |
ARS212 T=4.16,MARK 16 |
2 | ||
| 90521-99075 |
ARS212 T=3.90,MARK 90 |
2 | ||
| 90521-99071 |
ARS212 T=3.82,MARK 82 |
2 | ||
| 90521-99097 |
ARS212 T=4.28,MARK 28 |
2 | ||
| 90521-99088 |
ARS212 T=4.14,MARK 14 |
2 | ||
| 90521-99092 |
ARS212 T=4.22,MARK 22 |
2 | ||
| 90521-99101 |
ARS212 T=4.32,MARK 32 |
2 | ||
| 90521-99102 |
ARS212 T=4.34,MARK 34 |
2 | ||
| 90521-99091 |
ARS212 T=4.20,MARK 20 |
2 | ||
| 90521-99100 |
ARS212 T=4.30,MARK 30 |
2 | ||
| 90521-99107 |
ARS212 T=4.42,MARK 42 |
2 | ||
| 90521-99105 |
ARS212 T=4.40,MARK 40 |
2 | ||
| 90521-99078 |
ARS212 T=3.96,MARK 96 |
2 | ||
| 90521-99104 |
ARS212 T=4.38,MARK 38 |
2 | ||
| 90521-99090 |
ARS212 T=4.18,MARK 18 |
2 | ||
| 90521-99103 |
ARS212 T=4.36,MARK 36 |
2 | ||
| 90521-99082 |
ARS212 T=4.02,MARK 02 |
2 | ||
| 90521-99096 |
ARS212 T=4.26,MARK 26 |
2 | ||
| 90521-99095 |
ARS212 T=4.24,MARK 24 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-99063 |
ARS212 T=3.68,MARK 68 |
2 | ||
| 90521-99066 |
ARS212 T=3.74,MARK 74 |
2 | ||
| 90521-99062 |
ARS212 T=3.66,MARK 66 |
2 | ||
| 90521-99065 |
ARS212 T=3.72,MARK 72 |
2 | ||
| 90521-99067 |
ARS212 T=3.76,MARK 76 |
2 | ||
| 90521-99068 |
ARS212 T=3.78,MARK 78 |
2 | ||
| 90521-99074 |
ARS212 T=3.88,MARK 88 |
2 | ||
| 90521-99072 |
ARS212 T=3.84,MARK 84 |
2 | ||
| 90521-99076 |
ARS212 T=3.92,MARK 92 |
2 | ||
| 90521-99070 |
ARS212 T=3.80,MARK 80 |
2 | ||
| 90521-99083 |
ARS212 T=4.04,MARK 04 |
2 | ||
| 90521-99064 |
ARS212 T=3.70,MARK 70 |
2 | ||
| 90521-99079 |
ARS212 T=3.98,MARK 98 |
2 | ||
| 90521-99077 |
ARS212 T=3.94,MARK 94 |
2 | ||
| 90521-99086 |
ARS212 T=4.10,MARK 10 |
2 | ||
| 90521-99084 |
ARS212 T=4.06,MARK 06 |
2 | ||
| 90521-99087 |
ARS212 T=4.12,MARK 12 |
2 | ||
| 90521-99085 |
ARS212 T=4.08,MARK 08 |
2 | ||
| 90521-99081 |
ARS212 T=4.00,MARK 00 |
2 | ||
| 90521-99073 |
ARS212 T=3.86,MARK 86 |
2 | ||
| 90521-99089 |
ARS212 T=4.16,MARK 16 |
2 | ||
| 90521-99075 |
ARS212 T=3.90,MARK 90 |
2 | ||
| 90521-99071 |
ARS212 T=3.82,MARK 82 |
2 | ||
| 90521-99097 |
ARS212 T=4.28,MARK 28 |
2 | ||
| 90521-99088 |
ARS212 T=4.14,MARK 14 |
2 | ||
| 90521-99092 |
ARS212 T=4.22,MARK 22 |
2 | ||
| 90521-99101 |
ARS212 T=4.32,MARK 32 |
2 | ||
| 90521-99102 |
ARS212 T=4.34,MARK 34 |
2 | ||
| 90521-99091 |
ARS212 T=4.20,MARK 20 |
2 | ||
| 90521-99100 |
ARS212 T=4.30,MARK 30 |
2 | ||
| 90521-99107 |
ARS212 T=4.42,MARK 42 |
2 | ||
| 90521-99105 |
ARS212 T=4.40,MARK 40 |
2 | ||
| 90521-99078 |
ARS212 T=3.96,MARK 96 |
2 | ||
| 90521-99104 |
ARS212 T=4.38,MARK 38 |
2 | ||
| 90521-99090 |
ARS212 T=4.18,MARK 18 |
2 | ||
| 90521-99103 |
ARS212 T=4.36,MARK 36 |
2 | ||
| 90521-99082 |
ARS212 T=4.02,MARK 02 |
2 | ||
| 90521-99096 |
ARS212 T=4.26,MARK 26 |
2 | ||
| 90521-99095 |
ARS212 T=4.24,MARK 24 |
2 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-0N050 |
ARS212 |
1 | ||
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-0N060 |
ARS212 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-30100 |
ARS212 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-50033 |
ARS212 |
2 | ||
| 41654-50032 |
ARS212 |
2 | ||

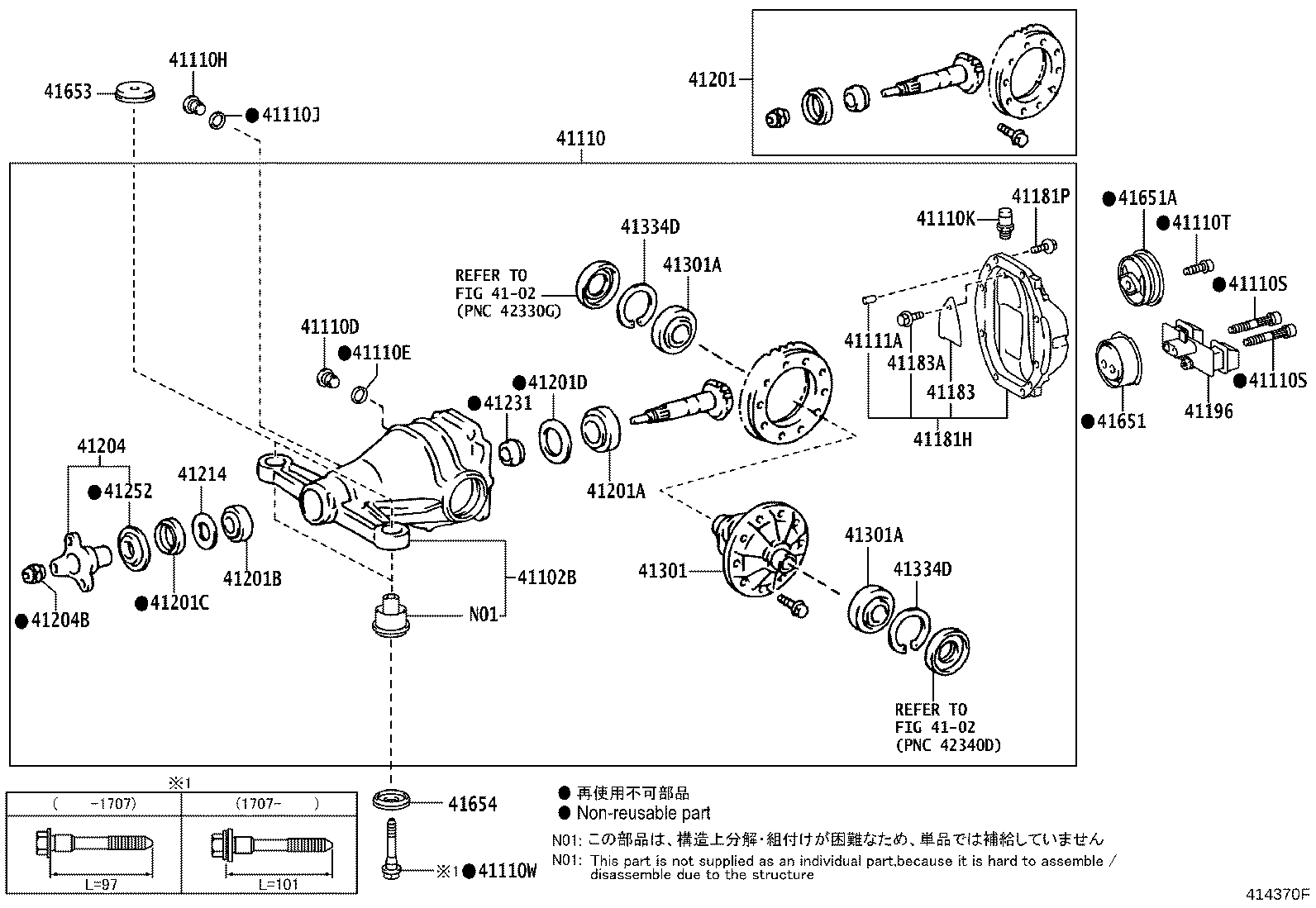

| Linked diagrams | ||||
| 4102 | ||||
