ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )ARS212

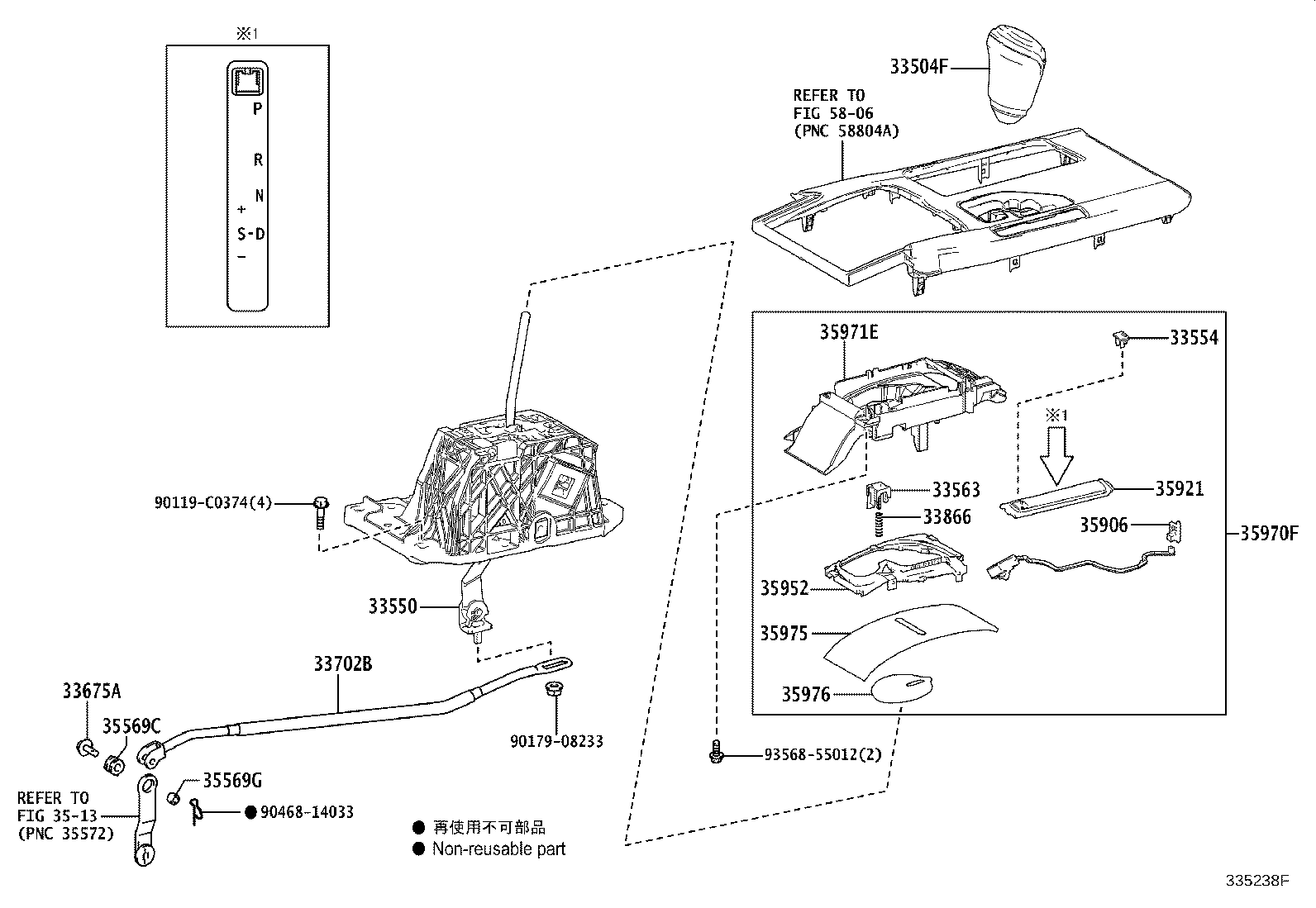

Click highlighted areas on diagram

diagram 33504F 33550 33554 33563 33675A 33702B 33866 3513 35569C 35569G 35906 35921 35952 35970F 35971E 35975 35976 5806 90119C0374 9017908233 9046814033 9356855012
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0N060C1

ARS212..S

BLACK,TRIM2#,3#

 1
33504-0N060C1

ARS212..Q,U;GRS218..Q,S,U

BLACK,TRIM2#

 1
33504-0N060E0

ARS212,GRS218

BROWN&BLACK,TRIM0#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-0N060

ARS212

 1
33554 - CAP, SHIFT LEVER
33554-0N010

ARS212,GRS218

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-0N020

ARS212,GRS218

 1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33726-30020

ARS212,GRS218

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-0N020

ARS212

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-02020

ARS212,GRS218

 1
35569C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013

ARS212,GRS218

 1
35569G - BUSH (FOR TRANSMISSION CONTROL ROD)
90560-08091

ARS212,GRS218

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0N020

ARS212,GRS218

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-0N030

ARS212,GRS218

 1
35952 - LENS, POSITION INDICATOR
35952-0N020

ARS212,GRS218

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-0N010

ARS212,GRS218

 1
35971E - HOUSING, POSITION INDICATOR
35971-0N020

ARS212,GRS218

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0N020

ARS212,GRS218

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0N010

ARS212,GRS218

 1
Common parts
90119-C0374
90179-08233
90468-14033
93568-55012
Linked diagrams
3513
5806
