ARS212L-DEZUTC (2015)
Toyota Crown (China)
Production
Aug 2015
-
Dec 2017
Engine
8ARFTS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )8ARFTS

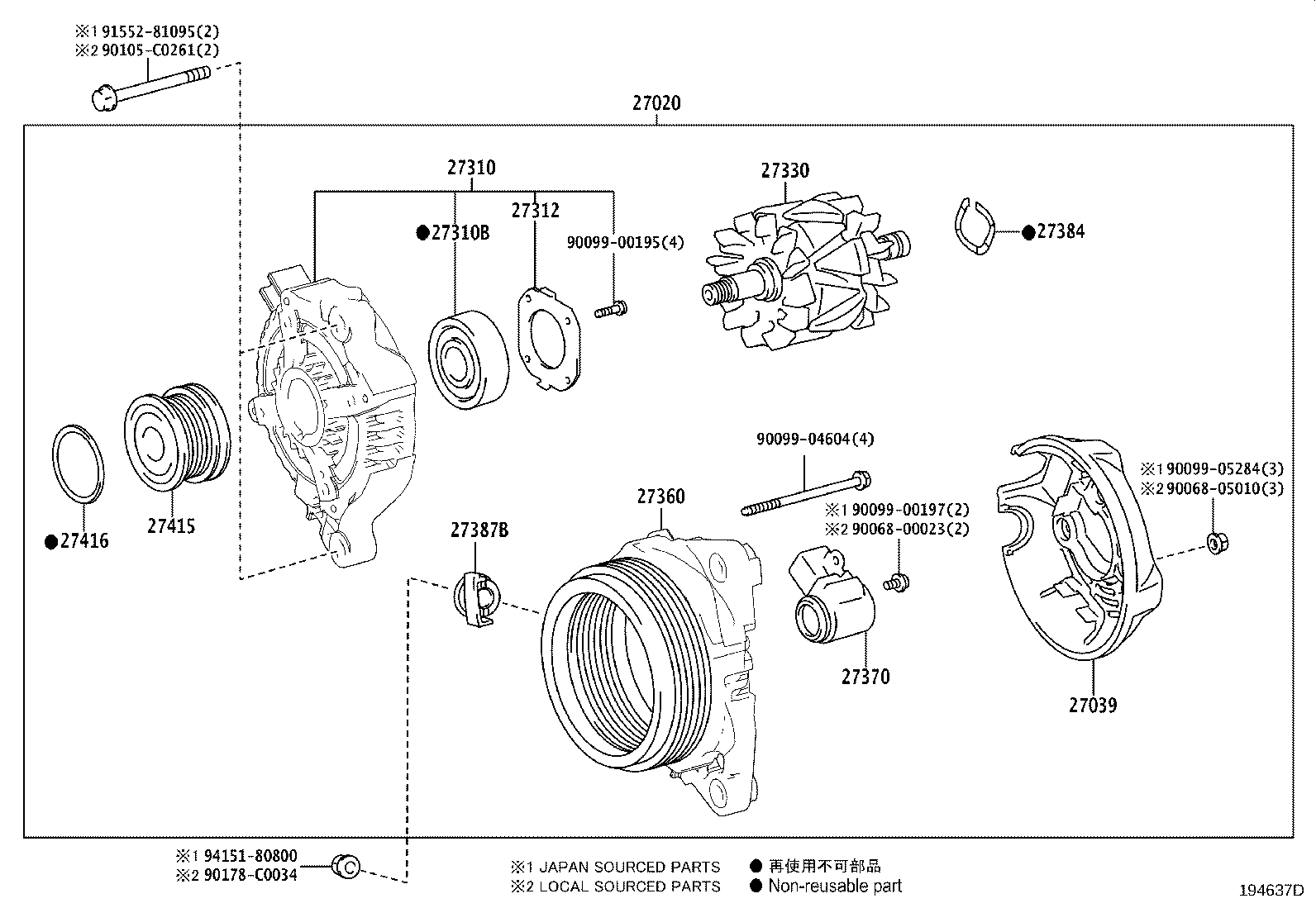

Click highlighted areas on diagram
12V 180A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0V180 |
8ARFTS..ARS212 12V 180A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0V170 |
8ARFTS..ARS212 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0V170 |
8ARFTS..ARS212 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10015 |
8ARFTS..ARS212 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
8ARFTS..ARS212 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0V170 |
8ARFTS..ARS212 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0V170 |
8ARFTS..ARS212 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0V170 |
8ARFTS..ARS212 |
1 | ||
| 27384 - WASHER | ||||
| 27384-38130 |
8ARFTS..ARS212 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-38130 |
8ARFTS..ARS212 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W230 |
8ARFTS..ARS212 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
8ARFTS,5GRFE..ARS212,GRS218 |
1 | ||
| Common parts | ||||
| 90068-00023 | ||||
| 90068-05010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04604 | ||||
| 90099-05284 | ||||
| 90105-C0261 | ||||
| 90178-C0034 | ||||
| 91552-81095 | ||||
| 94151-80800 | ||||
