ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )8ARFTS

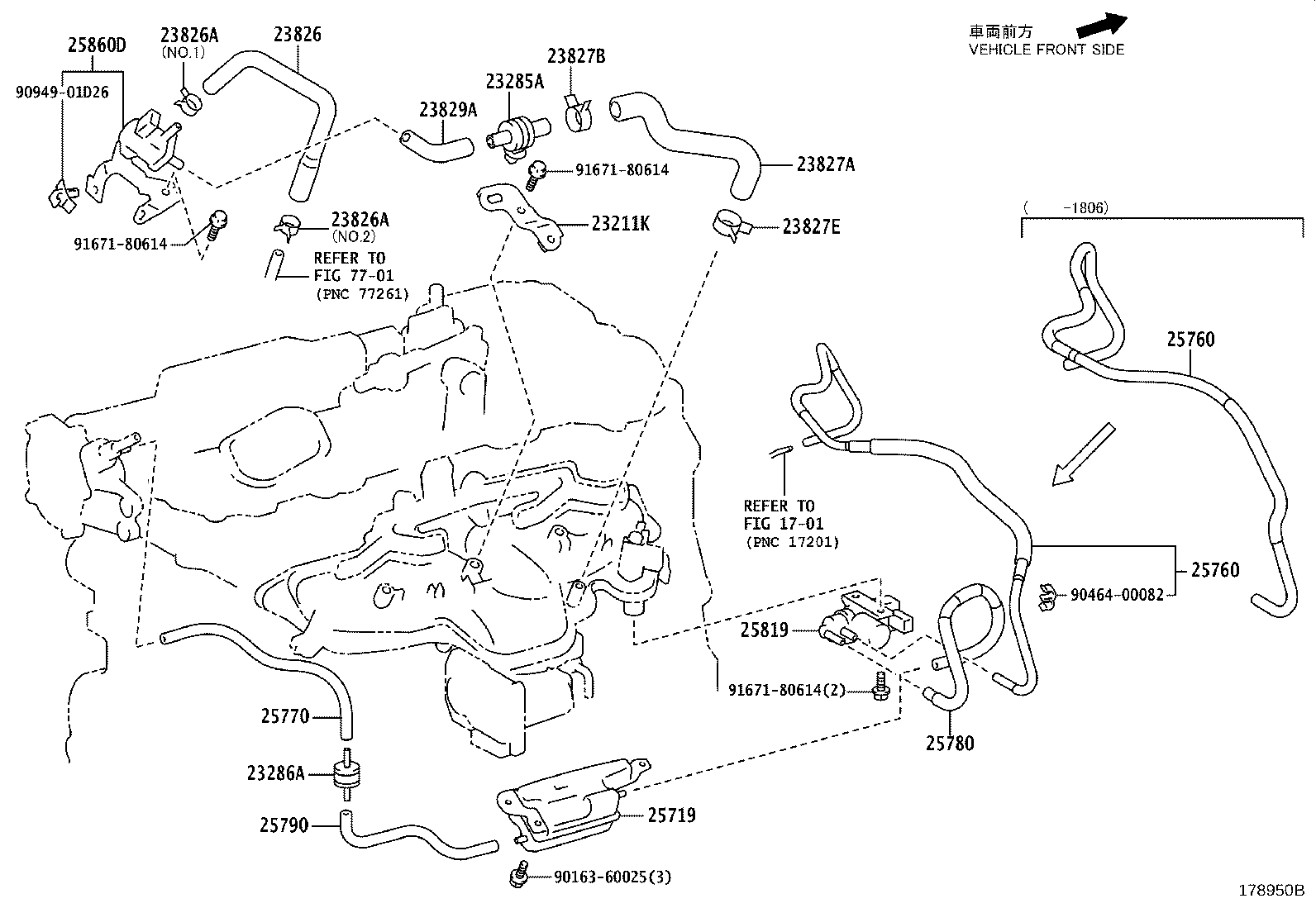

Click highlighted areas on diagram

diagram 1701 23211K 23285A 23286A 23826 23826A 23826A 23827A 23827B 23827E 23829A 25719 25760 25760 25770 25780 25790 25819 25860D 7701 9016360025 9046400082 9094901D26 9167180614 9167180614 9167180614
Part # Description Qty Price
23211K - BRACKET
23211-36010

8ARFTS..ARS212

 1
23285A - VALVE, CHECK, NO.1
25748-36010

8ARFTS..ARS212

 1
23286A - VALVE, CHECK, NO.2
90917-10065

8ARFTS..ARS212

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0V210

8ARFTS..ARS212

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

8ARFTS..ARS212

NO.1:REFER ILLUST.

 1
90466-C0039

8ARFTS..ARS212

(L),NO.2:SEE ILLUST

 1
96136-41901

8ARFTS..ARS212

(J),NO.2:SEE ILLUST

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

8ARFTS..ARS212

NO.1:REFER ILLUST.

 1
90466-C0039

8ARFTS..ARS212

(L),NO.2:SEE ILLUST

 1
96136-41901

8ARFTS..ARS212

(J),NO.2:SEE ILLUST

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-36150

8ARFTS..ARS212

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96136-42201

8ARFTS..ARS212

 1
23827E - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96137-41901

8ARFTS..ARS212

 1
23829A - HOSE, FUEL VAPOR FEED
23826-36170

8ARFTS..ARS212

 1
25719 - TANK, VACUUM SURGE
25719-36010

8ARFTS..ARS212

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-36050

8ARFTS..ARS212

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-36050

8ARFTS..ARS212

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-36010

8ARFTS..ARS212

 1
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-36010

8ARFTS..ARS212

 1
25790 - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25790-36010

8ARFTS..ARS212

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-0W010

8ARFTS..ARS212

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-36121

8ARFTS..ARS212

 1
Common parts
90163-60025
90464-00082
90949-01D26
91671-80614
Linked diagrams
1701
7701
