ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1508- )8ARFTS

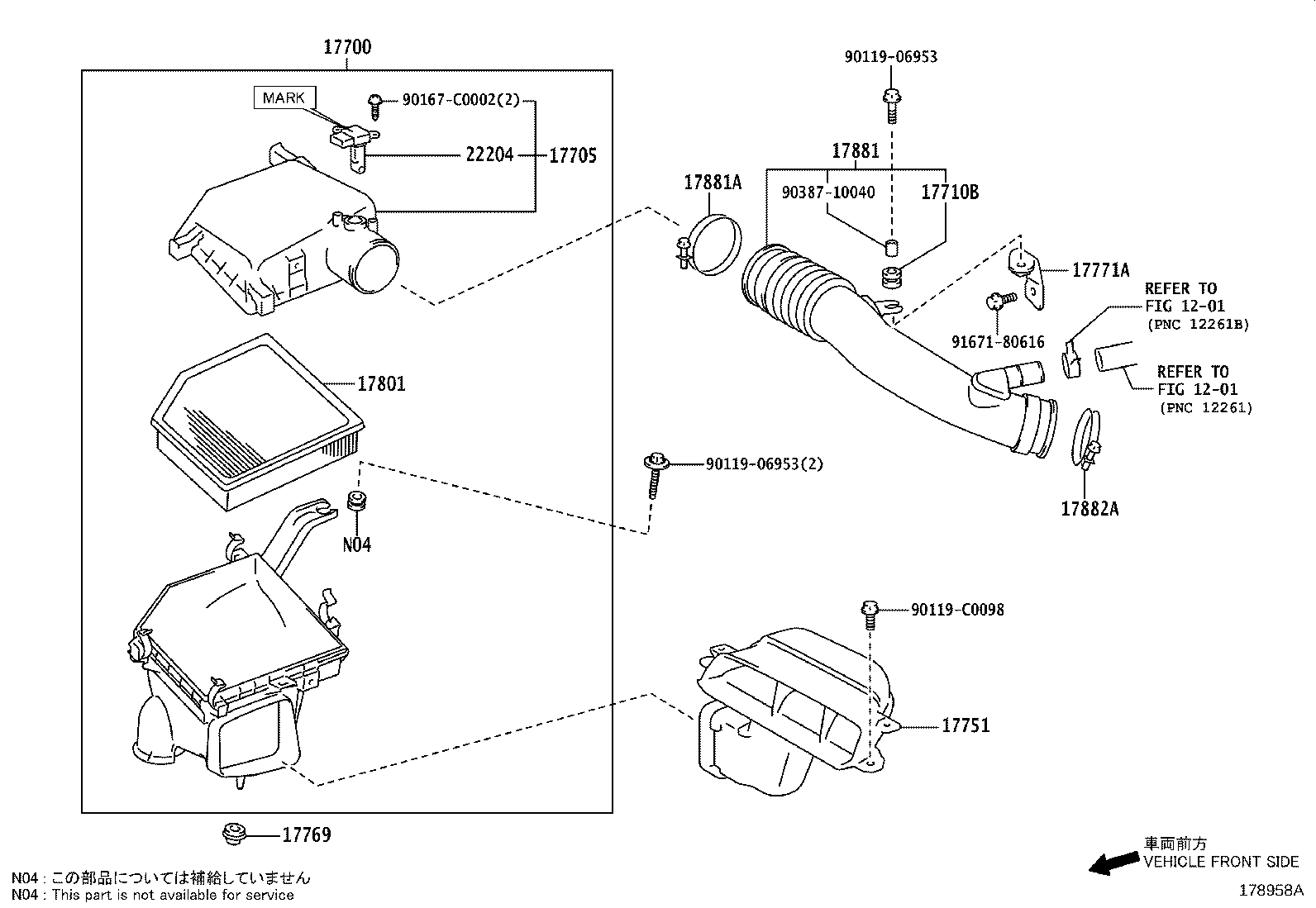

Click highlighted areas on diagram

AIR CLEANER SIDE

diagram 1201 1201 17700 17705 17710B 17751 17769 17771A 17801 17881 17881A 17882A 22204 9011906953 9011906953 90119C0098 90167C0002 9038710040 9167180616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0V120

8ARFTS..ARS212

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0V160

8ARFTS..ARS212

 1
17710B - GROMMET
90480-16041

8ARFTS..ARS212

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0V060

8ARFTS..ARS212

 1
17769 - SUPPORT, AIR CLEANER
17769-31030

8ARFTS..ARS212

(J)

 1
17769-0P020

8ARFTS..ARS212

(L)

 1
17771A - BRACKET, AIR CLEANER
17771-36090

8ARFTS..ARS212

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0V050

8ARFTS..ARS212

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-0V220

8ARFTS..ARS212

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

8ARFTS..ARS212

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10670

8ARFTS..ARS212

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V020

8ARFTS..ARS212

MARK 22204-0V020

 1
22204-28010

8ARFTS..ARS212

MARK 22204-28010

 1
22204-0T040

8ARFTS..ARS212

MARK 22204-0T040

 1
Common parts
90119-06953
90119-C0098
90167-C0002
90387-10040
91671-80616
Linked diagrams
1201

ILLUST NO. 2 OF 2(1508- )8ARFTS

Click highlighted areas on diagram

INTERCOOLER SIDE

diagram 1201 1201 1603 1603 1603 1603 1701 1701 1701 17117A 17341F 17342D 17342E 17342E 17361J 17362B 17376A 17377A 17893 17897 17897 17940D 2211 2211 90119C0125 90119C0125 9155180616 9167180614 9167180820
Part # Description Qty Price
17117A - INSULATOR, INTAKE PIPE
17117-36010

8ARFTS..ARS212

 1
17341F - HOSE, AIR, NO.1
17341-36030

8ARFTS..ARS212

 1
17342D - HOSE, AIR, NO.2
17342-36020

8ARFTS..ARS212

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002

8ARFTS..ARS212

 2
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-77002

8ARFTS..ARS212

 2
17361J - TUBE, AIR, NO.1
17361-36020

8ARFTS..ARS212

 1
17362B - TUBE, AIR, NO.2
17362-36010

8ARFTS..ARS212

 1
17376A - GASKET, AIR TUBE
17376-36010

8ARFTS..ARS212

 1
17377A - GASKET, AIR TUBE, NO.2
17377-36010

8ARFTS..ARS212

 1
17893 - RESONATOR, INTAKE AIR
17893-36120

8ARFTS..ARS212

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
90460-70003

8ARFTS..ARS212

 2
17897 - CLAMP, HOSE(FOR AIR CLEANER)
90460-70003

8ARFTS..ARS212

 2
17940D - INTERCOOLER ASSY
17900-36020

8ARFTS..ARS212

 1
Common parts
90119-C0125
91551-80616
91671-80614
91671-80820
Linked diagrams
1201
1603
1701
2211
