ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )8ARFTS

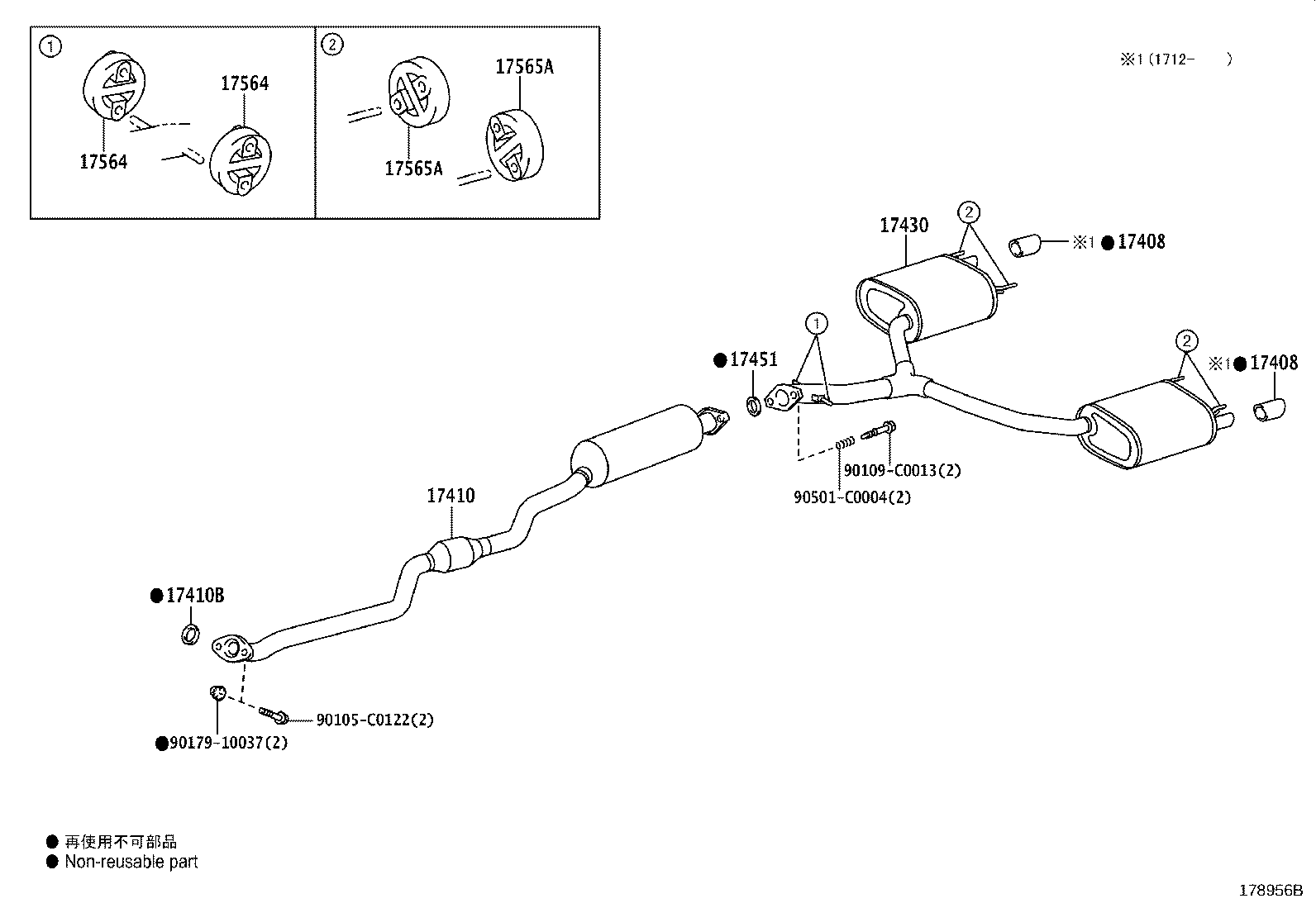

Click highlighted areas on diagram

diagram 17408 17408 17410 17410B 17430 17451 17564 17564 17565A 17565A 90105C0122 90109C0013 9017910037 90501C0004
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0V370

8ARFTS..ARS212

 1
17410B - GASKET, EXHAUST PIPE
90917-06090

8ARFTS..ARS212

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0V330

8ARFTS..ARS212

 1
17430-0V331

8ARFTS..ARS212

 1
17451 - GASKET, EXHAUST PIPE
17451-0P012

8ARFTS,5GRFE..ARS212,GRS218

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T010

8ARFTS,5GRFE..ARS212,GRS218

 2
17565-0T011

8ARFTS,5GRFE..ARS212,GRS218

 2
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0T010

8ARFTS,5GRFE..ARS212,GRS218

 2
17565-0T011

8ARFTS,5GRFE..ARS212,GRS218

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

8ARFTS,5GRFE..ARS212,GRS218

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

8ARFTS,5GRFE..ARS212,GRS218

 4
Common parts
90105-C0122
90109-C0013
90179-10037
90501-C0004
