ARS212L-DEZUTC (2015)

Toyota Crown (China)

Production Aug 2015 - Dec 2017
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )8ARFTS

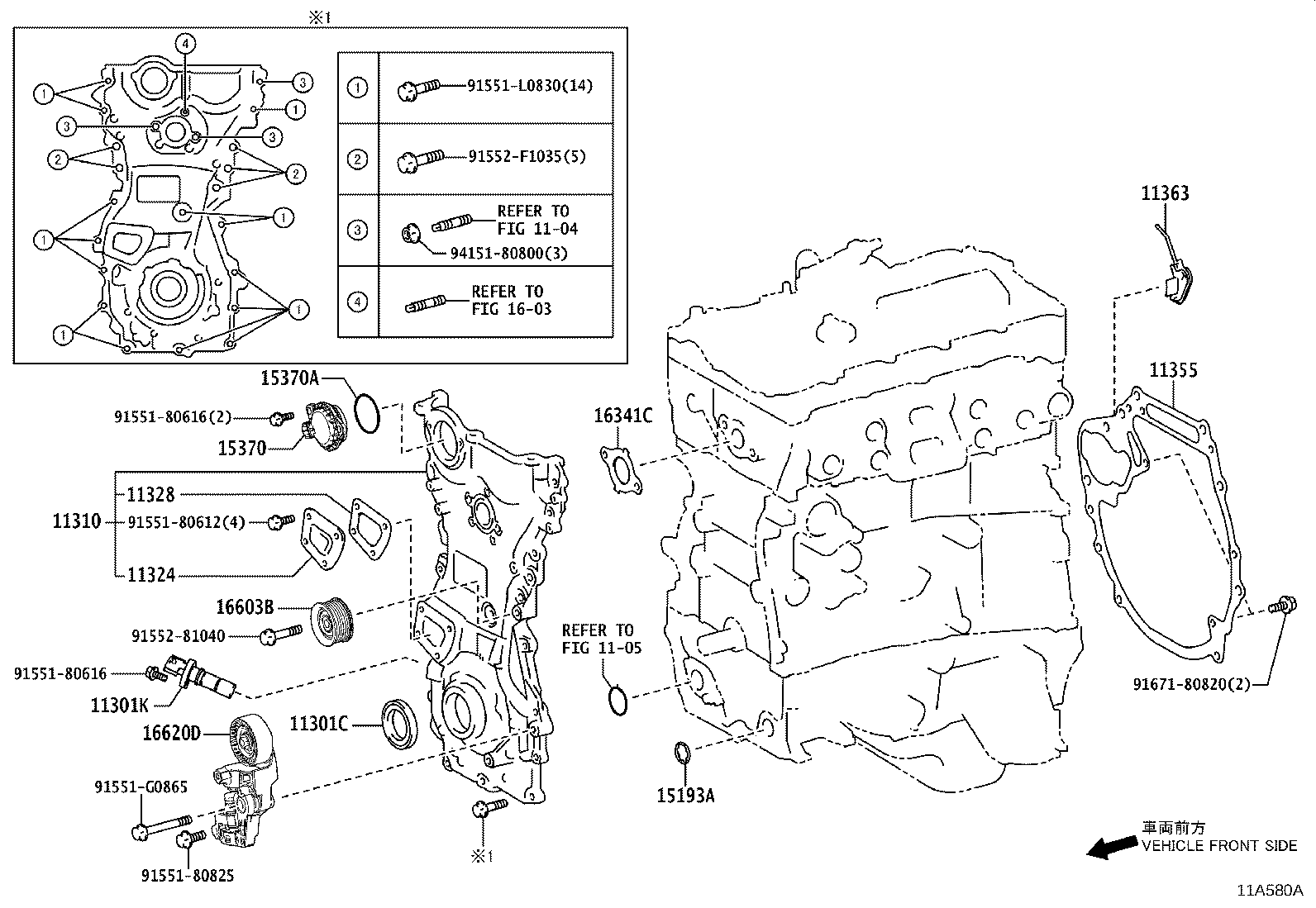

Click highlighted areas on diagram

diagram 1104 1105 11301C 11301K 11310 11324 11328 11355 11363 15193A 15370 15370A 1603 16341C 16603B 16620D 9155180612 9155180616 9155180616 9155180825 91551G0865 91551L0830 9155281040 91552F1035 9167180820 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42051

8ARFTS..ARS212

 1
11301K - SENSOR, CRANK POSITION
90919-05088

8ARFTS..ARS212

 1
11310 - COVER ASSY, TIMING CHAIN
11310-36080

8ARFTS..ARS212

 1
11324 - PLATE, TIMING CHAIN COVER
11324-36020

8ARFTS..ARS212

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-36030

8ARFTS..ARS212

 1
11355 - PLATE, REAR END
11355-36020

8ARFTS..ARS212

 1
11363 - COVER, FLYWHEEL SIDE
11363-36010

8ARFTS..ARS212

 1
15193A - GASKET, OIL PUMP
15197-36010

8ARFTS..ARS212

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-36010

8ARFTS..ARS212

 1
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-50003

8ARFTS..ARS212

 1
16341C - GASKET, WATER OUTLET
16341-36010

8ARFTS..ARS212

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-36010

8ARFTS..ARS212

 1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-36061

8ARFTS..ARS212

 1
Common parts
91551-80612
91551-80616
91551-80825
91551-G0865
91551-L0830
91552-81040
91552-F1035
91671-80820
94151-80800
Linked diagrams
1104
1105
1603
