Toyota Crown (china) ARS212 INTERIOR LAMP

Part #	Description	Period	Qty

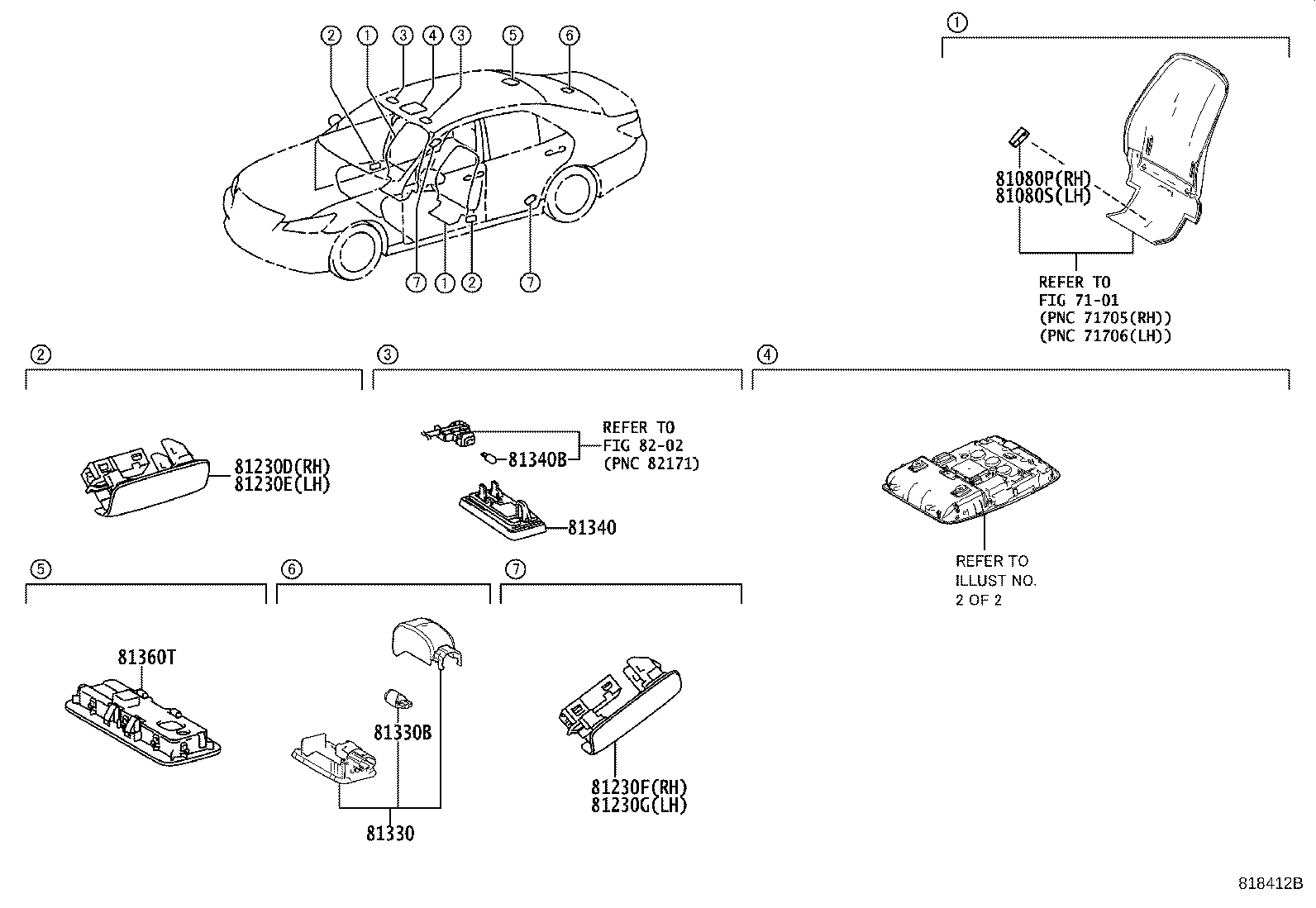

81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-11030	ARS212..B	12/2017 - 10/2019	1
81230-30200	ARS212,GRS218	01/2015 - 12/2017	1
81230-11030	ARS212..P,Q,S,U	12/2017 - 12/2999	1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81230-30200	ARS212,GRS218	01/2015 - 12/2017	1
81230-11030	ARS212..B	12/2017 - 10/2019	1
81230-11030	ARS212..P,Q,S,U	12/2017 - 12/2999	1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-30200	ARS212,GRS218	01/2015 - 12/2017	1
81230-11030	ARS212..B	12/2017 - 10/2019	1
81230-11030	ARS212..P,Q,S,U	12/2017 - 12/2999	1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81230-11030	ARS212..B	12/2017 - 10/2019	1
81230-30200	ARS212,GRS218	01/2015 - 12/2017	1
81230-11030	ARS212..P,Q,S,U	12/2017 - 12/2999	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210	ARS212,GRS218	01/2015 - 12/2017	1
81250-30210	ARS212..B	12/2017 - 10/2019	1
81250-30210	ARS212..P,Q,S,U	12/2017 - 12/2999	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050	ARS212..B 12V 5W	12/2017 - 10/2019	1
99132-12050	ARS212,GRS218 12V 5W	01/2015 - 12/2017	1
99132-12050	ARS212..P,Q,S,U 12V 5W	12/2017 - 12/2999	1
81340 - LAMP ASSY, VANITY
81340-0P010	ARS212..P,Q,S,U	12/2017 - 12/2999	2
81340-0P010	ARS212,GRS218	01/2015 - 12/2017	2
81340-0P010	ARS212..B	12/2017 - 10/2019	2
81340B - BULB (FOR VANITY LAMP)
90981-11062	ARS212..P,Q,S,U 12V 8W	12/2017 - 12/2999	2
90981-11062	ARS212..B 12V 8W	12/2017 - 10/2019	2
90981-11062	ARS212,GRS218 12V 8W	01/2015 - 12/2017	2
81360T - LAMP ASSY, SPOT
81360-0N020A2	ARS212,GRS218 FLAXEN,TRIM0#	01/2015 - 12/2017	1
81360-0N030A0	ARS212..B FLAXEN,TRIM0#	12/2017 - 10/2019	1
81360-0N030B0	ARS212..Q,S,U GRAY,TRIM2#	12/2017 - 12/2999	1
81360-0N030A0	ARS212..P,Q,S,U FLAXEN,TRIM0#	12/2017 - 12/2999	1
Linked diagrams
7101
8202

Part #	Description	Period	Qty
63395E - CLIP(FOR MAP LAMP)
90467-10167	ARS212,GRS218	01/2015 - 12/2017	2
90467-10167	ARS212..B	12/2017 - 10/2019	2
90467-10167	ARS212..P,Q,S,U	12/2017 - 12/2999	2

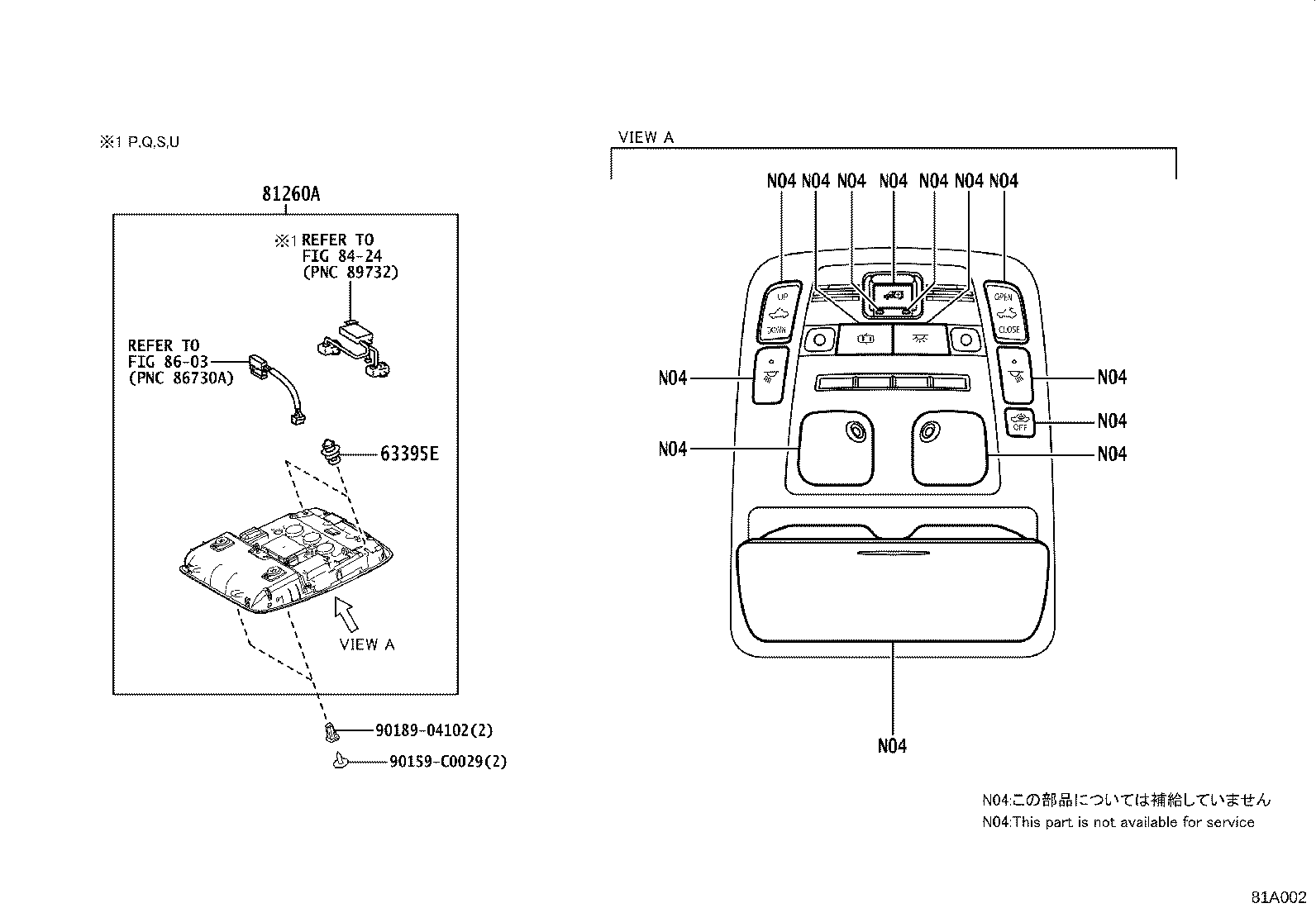

81260A - LAMP ASSY, MAP
81260-0N211A0	ARS212..B FLAXEN,TRIM0#	06/2019 - 10/2019	1
81260-0N210A0	ARS212..B FLAXEN,TRIM0#	12/2017 - 05/2019	1
81260-0N220A0	ARS212..P,Q,S FLAXEN,TRIM0#	12/2017 - 05/2019	1
81260-0N220B0	ARS212..Q,S GRAY,TRIM2#	12/2017 - 05/2019	1
81260-0N180A0	ARS212,GRS218..B FLAXEN,TRIM0#	01/2015 - 12/2017	1
81260-0N200A0	ARS212,GRS218..Q,S FLAXEN,TRIM0#	01/2015 - 12/2017	1
81260-0N221A0	ARS212..Q,S FLAXEN,TRIM0#	06/2019 - 12/2999	1
81260-0N221B0	ARS212..Q,S GRAY,TRIM2#	06/2019 - 12/2999	1
Common parts
90159-C0029
90189-04102
Linked diagrams
8424
8603

ARS212L-DEZBTC (2017)

ILLUST NO. 1 OF 2(1712- )

ILLUST NO. 2 OF 2(1712- )
