YS132L-AEKBS (1991)
Toyota Crown
Production
Oct 1991
-
Dec 1995
Engine
4Y
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110-9512)4Y

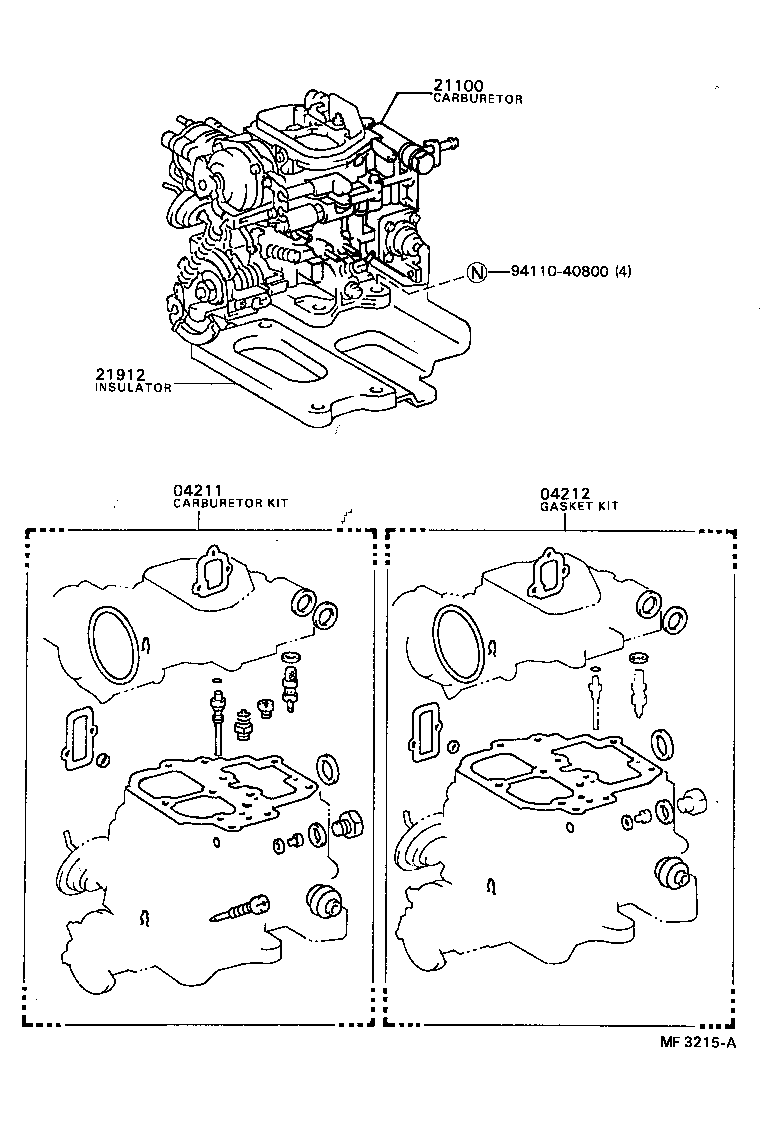

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04211 - CARBURETOR KIT | ||||
| 04211-73212 |
4Y..YS132 |
1 | ||
| 04211-73211 |
4Y..YS132 |
1 | ||
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-73062 |
4Y..YS132 |
1 | ||
| 04212-73063 |
4Y..YS132 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-73280 |
4Y..YS132 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-72011 |
4Y..YS132 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
