YS132L-AEKBS (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 4Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

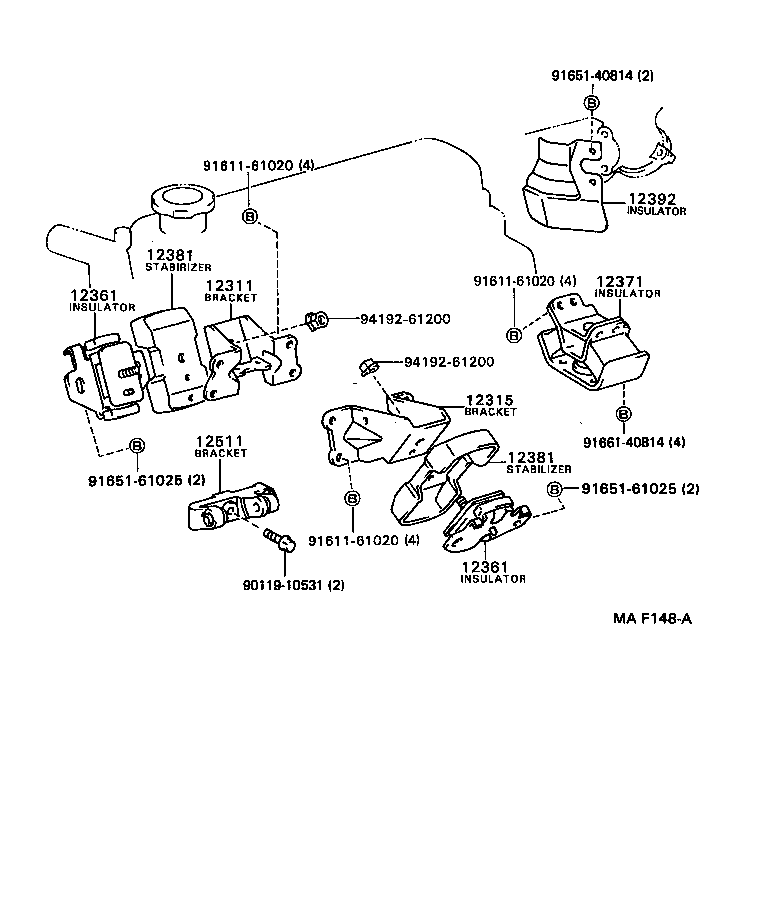

(9110-9512)4Y

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12392 12511 9011910531 9161161020 9161161020 9161161020 9165140814 9165161025 9165161025 9166140814 9419261200 9419261200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

4Y..YS132

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

4Y..YS132

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-73040

4Y..YS132

LH

 1
12361-73030

4Y..YS132

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-73040

4Y..YS132

LH

 1
12361-73030

4Y..YS132

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-73010

4Y..YS132

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73030

4Y..YS132

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73030

4Y..YS132

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

4Y..YS132

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

4Y..YS132

 1
Common parts
90119-10531
91611-61020
91651-40814
91651-61025
91661-40814
94192-61200

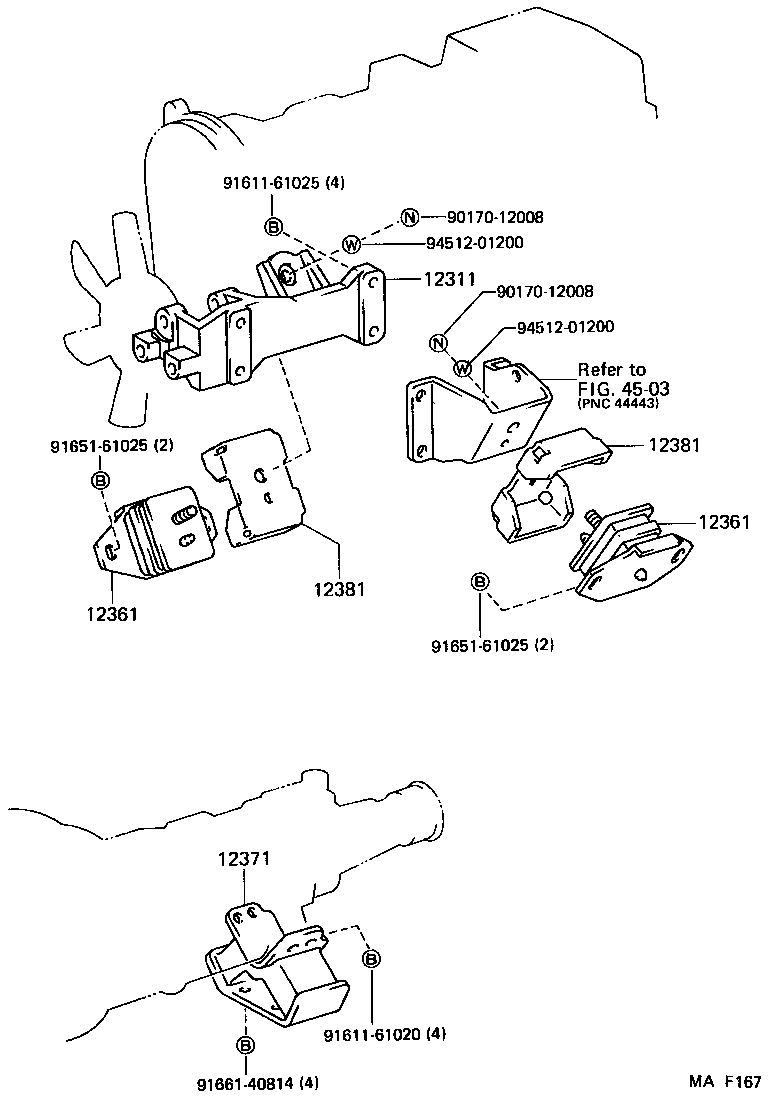

(9110-9512)2L

Click highlighted areas on diagram

diagram 12311 12361 12361 12371 12381 12381 4503 9017012008 9017012008 9161161020 9161161025 9165161025 9165161025 9166140814 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

4Y..YS132

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-73040

4Y..YS132

LH

 1
12361-73030

4Y..YS132

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-73040

4Y..YS132

LH

 1
12361-73030

4Y..YS132

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-73010

4Y..YS132

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73030

4Y..YS132

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73030

4Y..YS132

 2
Common parts
90170-12008
91611-61020
91611-61025
91651-61025
91661-40814
94512-01200
Linked diagrams
4503
