YS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 4Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8709- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44696 44730 44758 44785 9017908041
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-30530

YS132

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

YS132

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

YS132

 1
44610 - BOOSTER ASSY, BRAKE
44610-30590

YS132

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

YS132

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

YS132

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

MS132..LHD;MS133,135,YS132;MS132..RHD..ROY

 1
44645-10080

MS132,135..LHD;MS132..RHD..ROY;GS131,MS133,YS132

 1
44645-10080

MS132,133;GS131,MS135,YS132..ROY,STD

 1
44673A - BODY, BOOSTER VALVE
44673-32040

YS132

 1
44696 - GROMMET, CHECK VALVE
90480-24517

MS132,YS132..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-30030

YS132

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-30130

YS132

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GS131,LS130,MS13#,YS132

 1
Common parts
90179-08041

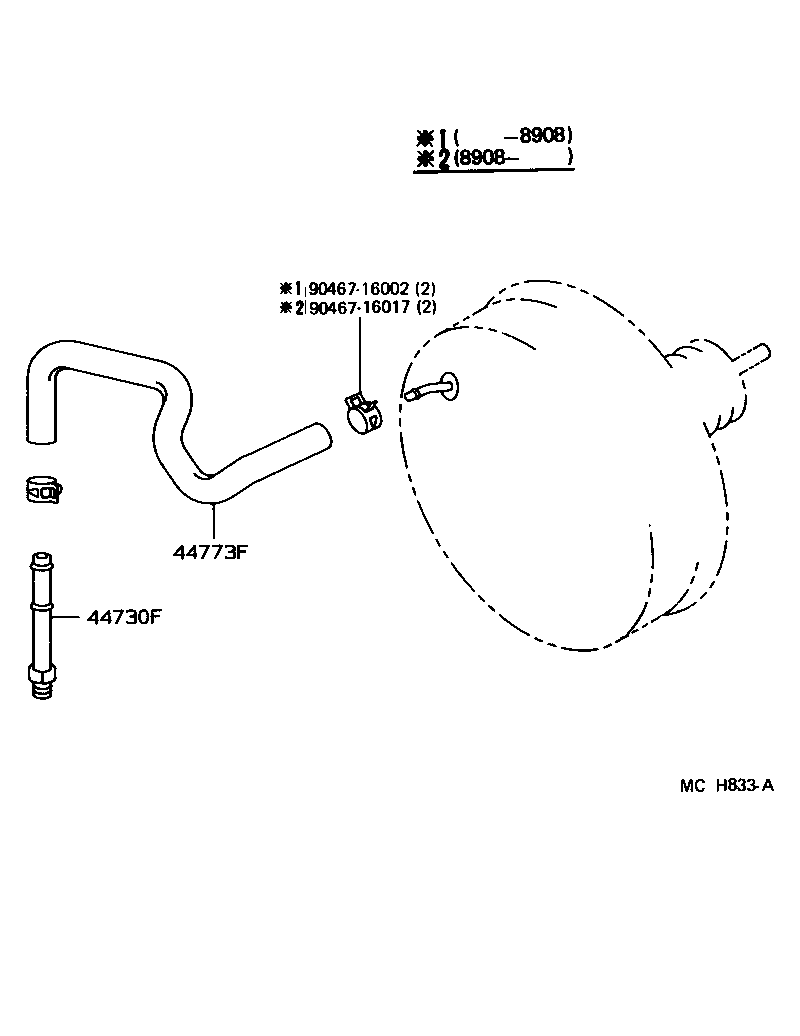

ILLUST NO. 2 OF 2(8709- )YS132

Click highlighted areas on diagram

diagram 44730F 44773F 9046716002 9046716017
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YS132

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-30420

YS132

 1
Common parts
90467-16002
90467-16017

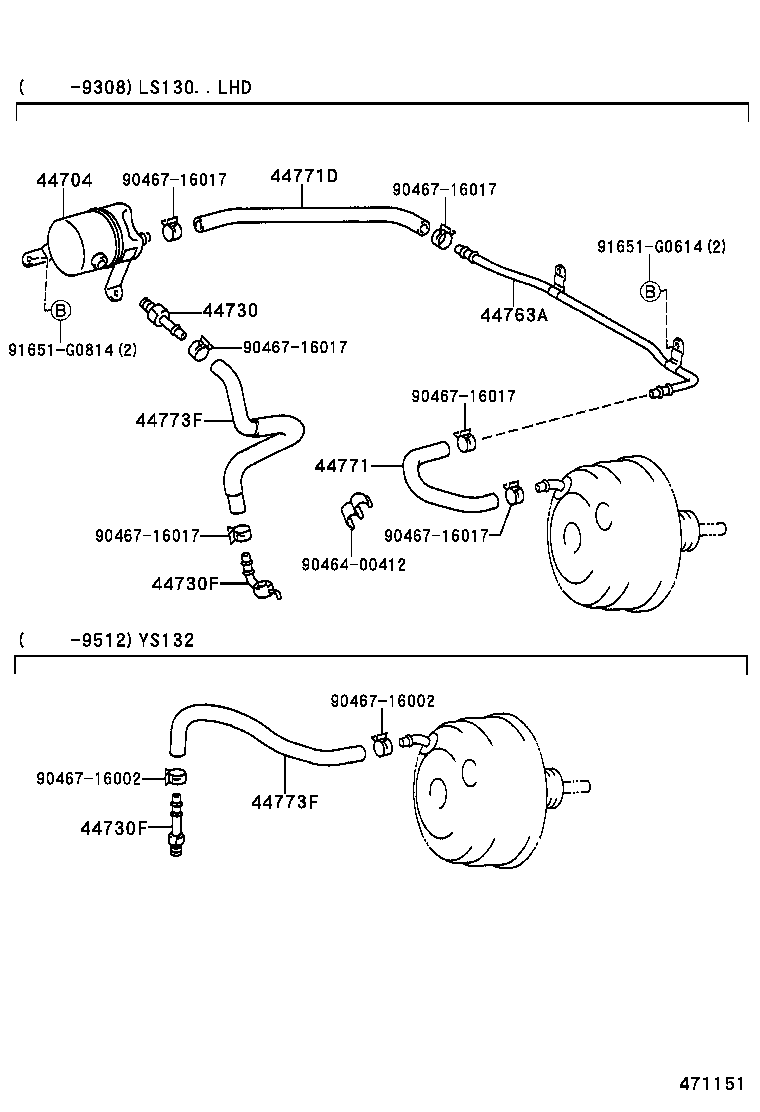

ILLUST NO. 2 OF 2(9110-9308)LS130..LHD ; (9110-9512)YS132

Click highlighted areas on diagram

diagram 44704 44730 44730F 44730F 44763A 44771 44771D 44773F 44773F 9046400412 9046716002 9046716002 9046716017 9046716017 9046716017 9046716017 9046716017 9046716017 91651G0614 91651G0814
Part # Description Qty Price
Common parts
90464-00412
90467-16002
90467-16017
91651-G0614
91651-G0814
