YS132L-AEJBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 4Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8709- )LS130,MS132,YS132..LHD

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313B 47313P 47315 47316A 47318F 47319F 47321 47322 47323 47324 47341B 47343A 47351 47352 9161160814 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30430

GS131,LS130,MS13#,YS132

 1
47311-30431

GS131,LS130,MS13#,YS132

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30260

LS130,YS132..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30201

GS131,LS130,MS13#,YS132..LHD

 1
47313-30200

LS130,MS13#,YS132..LHD

 1
47313-30201

LS130,MS13#,YS132..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02543

GS131,LS130,MS13#,YS132

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

GS131,LS130,MS13#,YS132

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

GS131,LS130,MS13#,YS132

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-30380

LS130,YS132..LHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

LS130,MS132,YS132

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30150

GS131,LS130,MS13#,YS132

 1
47321-30151

GS131,LS130,MS13#,YS132

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30110

LS130,MS132,YS132

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30130

LS130,MS132,YS132..DLX,SAL,STD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30090

LS130,MS132,YS132..DLX,SAL,STD

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-30030

GS131,LS130,MS13#,YS132

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-30030

GS131,LS130,MS13#,YS132

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-30210

GS131,LS130,MS13#,YS132

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-30090

GS131,LS130,MS13#,YS132

 1
Common parts
91611-60814
96991-10080

ILLUST NO. 2 OF 2(8709- )

Click highlighted areas on diagram

diagram 47159B 47190 47311B 47312E 47321D 47322B 47322B 47371A 47372 47373B 9011906005 9011906398 9046106041 9046106051 9046400208 9161160825 9161160825 91611B0640 9165540616 9165540616 9165540616 9165540616 9165540820 9165540820
Part # Description Qty Price
47159B - BRACKET, PROPORTIONING & BY-PASS VALVE
47159-30171

GS131,LS130,MS13#,YS132

 1
47159-30170

GS131,LS130,MS13#,YS132

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-30190

LS130,YS132;MS132..LHD..(DLX,SAL,STD)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10212

GS131,LS130,MS13#,YS132..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10145

GS131,LS130,MS13#,YS132..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10144

GS131,LS130,MS13#,YS132

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10156

LS130,MS132,YS132

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10156

LS130,MS132,YS132

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-30070

GS131,LS130,MS13#,YS132..LHD

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-30080

YS132

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-30100

GS131,LS130,MS13#,YS132..LHD

 1
Common parts
90119-06005
90119-06398
90461-06041
90461-06051
90464-00208
91611-60825
91611-B0640
91655-40616
91655-40820

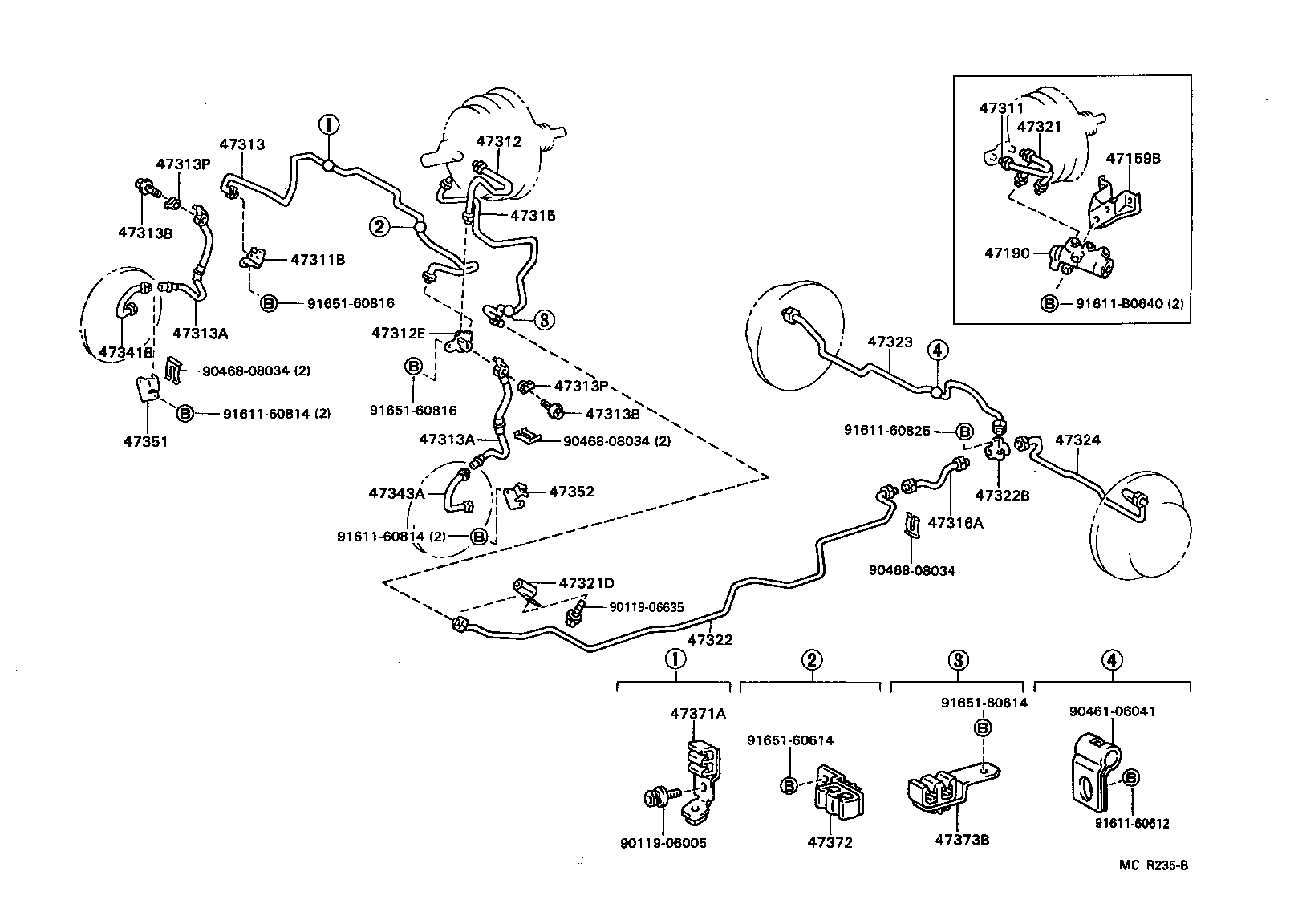

(9110-9512)LS130,YS132..LHD

Click highlighted areas on diagram

diagram 47159B 47190 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316A 47321 47321D 47322 47322B 47323 47324 47341B 47343A 47351 47352 47371A 47372 47373B 9011906005 9011906635 9046106041 9046808034 9046808034 9046808034 9161160612 9161160814 9161160814 9161160825 91611B0640 9165160614 9165160614 9165160816 9165160816
Part # Description Qty Price
Common parts
90119-06005
90119-06635
90461-06041
90468-08034
91611-60612
91611-60814
91611-60825
91611-B0640
91651-60614
91651-60816
