YS132L-AEJBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 4Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

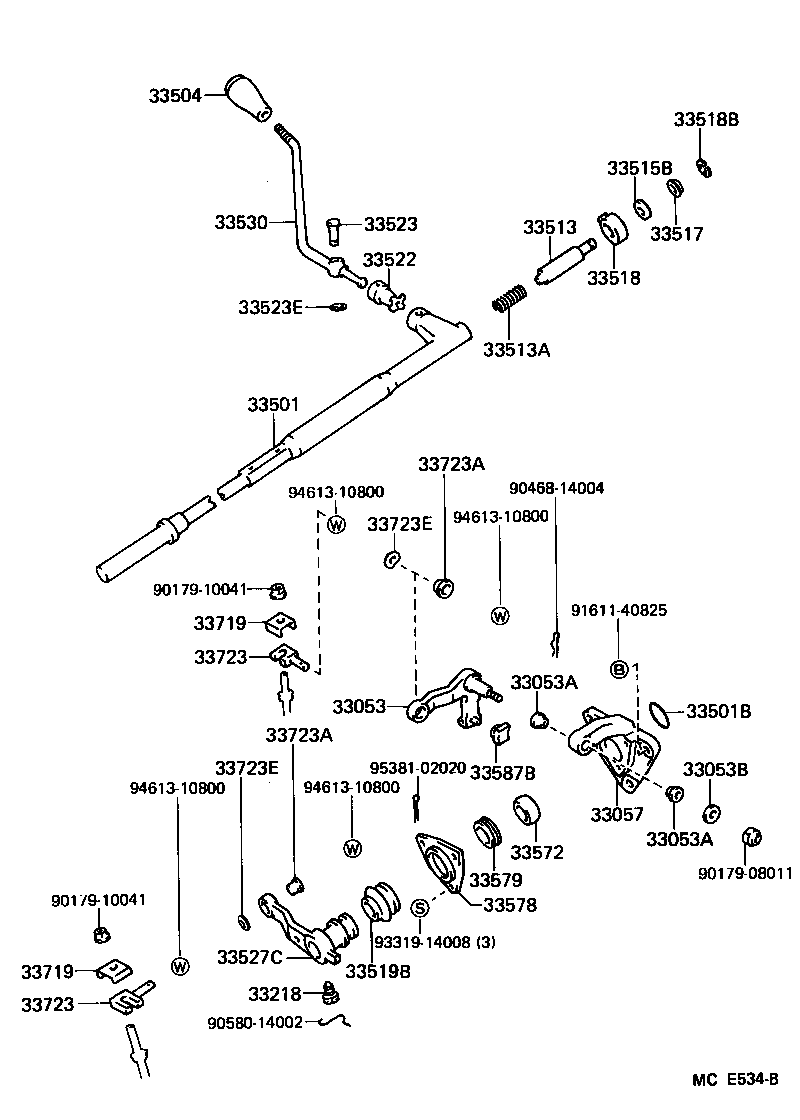

ILLUST NO. 1 OF 2(8709- )YS132..4H

Click highlighted areas on diagram

diagram 33053 33053A 33053A 33053B 33057 33218 33501 33501B 33504 33513 33513A 33515B 33517 33518 33518B 33519B 33522 33523 33523E 33527C 33530 33572 33578 33579 33587B 33719 33719 33723 33723 33723A 33723A 33723E 33723E 9017908011 9017910041 9017910041 9046814004 9058014002 9161140825 9331914008 9461310800 9461310800 9461310800 9461310800 9538102020
Part # Description Qty Price
33053 - LEVER SUB-ASSY, CONTROL SELECT(FOR COLUMN SHIFT)
33053-30090

YS132..4H

 1
33053A - BUSH(FOR CONTROL SELECT LEVER)
90386-13007

LS130,YS132..4H

 2
33053A - BUSH(FOR CONTROL SELECT LEVER)
90386-13007

LS130,YS132..4H

 2
33053B - WASHER, PLATE(FOR CONTROL SELECT LEVER)
90201-08065

LS130,YS132..4H

 1
33057 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER(FOR COLUMN SHIFT
33057-30170

YS132..4H

 1
33218 - BOLT, SHIFT LEVER LOCK
33218-35010

LS130,YS132..4H

 1
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-30500

YS132..4H

 1
33501B - RING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)
90301-34002

LS130,MS132,135,YS132..4H,4HC

 1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110

LS130,YS132..4H

 1
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-30110

LS130,MS132,135,YS132..4H,4HC

 1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14784

LS130,YS132..4H

 1
90501-14784

LS130,MS135,YS132..4H,4HC

 1
33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)
33515-30010

LS130,MS132,135,YS132..4H,4HC

 1
33517 - RETAINER, CONTROL SHAFT UPPER SPRING
33517-30010

LS130,MS132,135,YS132..4H,4HC

 1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-30060

LS130,MS132,135,YS132..4H,4HC

 1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019

LS130,MS132,135,YS132..4H,4HC

 1
33519B - BOOT, CONTROL SHAFT DUST
33519-30030

LS130,YS132..4H

 1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-30030

LS130,MS132,135,YS132..4H,4HC

 1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
90249-07003

LS130,MS132,135,YS132..4H,4HC

 1
33523E - RING, E (FOR SHIFT LEVER PIN)
96160-00500

LS130,MS132,135,YS132..4H,4HC

 1
33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT)
33527-30090

YS132..4H

 1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-30410

YS132..4H

 1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-30030

LS130,YS132..4H

 1
33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1
33578-30020

LS130,YS132..4H

 1
33579 - SEAT, CONTROL SHAFT LOWER BUSH, NO.2
33579-30020

LS130,YS132..4H

 1
33587B - BUSH, LEVER SELECTING
33587-30050

LS130,YS132..4H

 1
33719 - PLATE, SHIFT CONTROL ROD
33719-30010

LS130,YS132..4H

 2
33719 - PLATE, SHIFT CONTROL ROD
33719-30010

LS130,YS132..4H

 2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30050

LS130,YS132..4H

 2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30050

LS130,YS132..4H

 2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08008

LS130,YS132..4H

 2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08008

LS130,YS132..4H

 2
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
Common parts
90179-08011
90179-10041
90468-14004
90580-14002
91611-40825
93319-14008
94613-10800
95381-02020

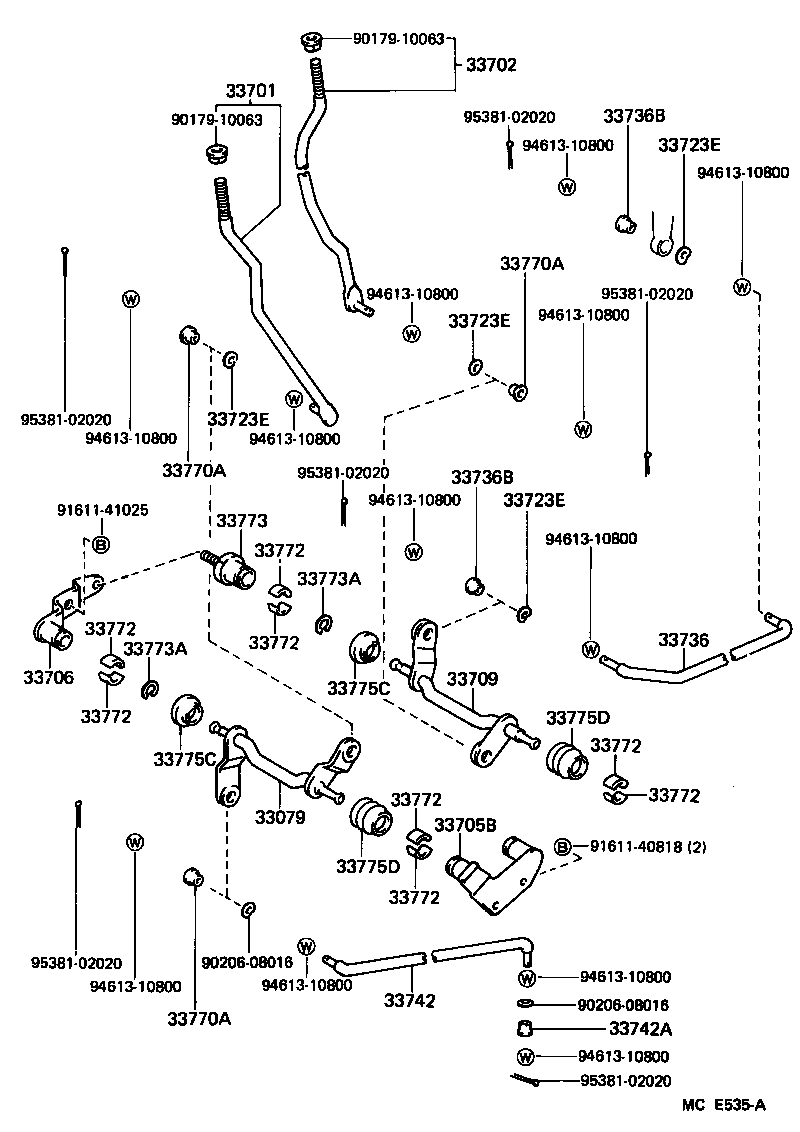

ILLUST NO. 2 OF 2(8709- )YS132..4H

Click highlighted areas on diagram

diagram 33079 33701 33702 33705B 33706 33709 33723E 33723E 33723E 33723E 33736 33736B 33736B 33742 33742A 33770A 33770A 33770A 33772 33772 33772 33772 33772 33772 33772 33772 33773 33773A 33773A 33775C 33775C 33775D 33775D 9017910063 9017910063 9020608016 9020608016 9161140818 9161141025 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9538102020 9538102020 9538102020 9538102020 9538102020 9538102020
Part # Description Qty Price
33079 - SHAFT SUB-ASSY, CROSS, NO.3(FOR COLUMN SHIFT)
33079-30090

YS132..4H

 1
33701 - ROD SUB-ASSY, GEAR SELECTING, NO.1
33701-30060

YS132..4H

 1
33702 - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33702-30210

YS132..4H

 1
33705B - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33705-30150

YS132..4H

 1
33706 - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)
33706-30040

YS132..4H

 1
33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)
33709-30310

YS132..4H

 1
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33736-30090

YS132..4H

 1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08008

LS130,YS132..4H

 1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08008

LS130,YS132..4H

 1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33742-30250

YS132..4H

 1
33742A - BUSH(FOR SHIFTING ROD NO.2)
90389-08008

LS130,YS132..4H

 1
90389-08008

LS130,YS132..4H

 2
33770A - BUSH (FOR CROSS SHAFT)
90389-08008

LS130,YS132..4H

 4
90389-08008

LS130,YS132..4H

 3
33770A - BUSH (FOR CROSS SHAFT)
90389-08008

LS130,YS132..4H

 4
90389-08008

LS130,YS132..4H

 3
33770A - BUSH (FOR CROSS SHAFT)
90389-08008

LS130,YS132..4H

 4
90389-08008

LS130,YS132..4H

 3
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

LS130,YS132..4H

 8
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-30040

YS132..4H

 1
33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

LS130,YS132..4H

 2
33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

LS130,YS132..4H

 2
33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)
33775-20020

YS132..4H

 2
33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT)
33775-20020

YS132..4H

 2
33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)
33775-20040

YS132..4H

 2
33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT)
33775-20040

YS132..4H

 2
Common parts
90179-10063
90206-08016
91611-40818
91611-41025
94613-10800
95381-02020

ILLUST NO. 1 OF 2(9110-9512)4H

Click highlighted areas on diagram

diagram 33053 33053A 33053A 33053B 33057 33218 33501 33501B 33504 33513 33513A 33515B 33517 33518 33518B 33519B 33522 33523 33523E 33527C 33530 33572 33578 33579 33586 33587B 33719 33719 33723 33723 33723A 33723A 33723E 33723E 9017908011 9017910041 9017910041 9046814004 9058014002 9161160814 9161160825 9331914008 9461310800 9461310800 9461310800 9461310800 9538102020
Part # Description Qty Price
33053 - LEVER SUB-ASSY, CONTROL SELECT(FOR COLUMN SHIFT)
33053-30090

YS132..4H

 1
33053A - BUSH(FOR CONTROL SELECT LEVER)
90386-13007

LS130,YS132..4H

 2
33053A - BUSH(FOR CONTROL SELECT LEVER)
90386-13007

LS130,YS132..4H

 2
33053B - WASHER, PLATE(FOR CONTROL SELECT LEVER)
90201-08065

LS130,YS132..4H

 1
33057 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER(FOR COLUMN SHIFT
33057-30170

YS132..4H

 1
33218 - BOLT, SHIFT LEVER LOCK
33218-35010

LS130,YS132..4H

 1
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-30500

YS132..4H

 1
33501B - RING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)
90301-34002

LS130,MS132,135,YS132..4H,4HC

 1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110

LS130,YS132..4H

 1
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-30110

LS130,MS132,135,YS132..4H,4HC

 1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14784

LS130,YS132..4H

 1
90501-14784

LS130,MS135,YS132..4H,4HC

 1
33515B - SEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)
33515-30010

LS130,MS132,135,YS132..4H,4HC

 1
33517 - RETAINER, CONTROL SHAFT UPPER SPRING
33517-30010

LS130,MS132,135,YS132..4H,4HC

 1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-30060

LS130,MS132,135,YS132..4H,4HC

 1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019

LS130,MS132,135,YS132..4H,4HC

 1
33519B - BOOT, CONTROL SHAFT DUST
33519-30030

LS130,YS132..4H

 1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-30030

LS130,MS132,135,YS132..4H,4HC

 1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
90249-07003

LS130,MS132,135,YS132..4H,4HC

 1
33523E - RING, E (FOR SHIFT LEVER PIN)
96160-00500

LS130,MS132,135,YS132..4H,4HC

 1
33527C - LEVER, CONTROL SHIFT (FOR COLUMN SHIFT)
33527-30090

YS132..4H

 1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-30410

YS132..4H

 1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-30030

LS130,YS132..4H

 1
33578 - SEAT, CONTROL SHAFT LOWER BUSH, NO.1
33578-30020

LS130,YS132..4H

 1
33579 - SEAT, CONTROL SHAFT LOWER BUSH, NO.2
33579-30020

LS130,YS132..4H

 1
33587B - BUSH, LEVER SELECTING
33587-30050

LS130,YS132..4H

 1
33719 - PLATE, SHIFT CONTROL ROD
33719-30010

LS130,YS132..4H

 2
33719 - PLATE, SHIFT CONTROL ROD
33719-30010

LS130,YS132..4H

 2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30050

LS130,YS132..4H

 2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30050

LS130,YS132..4H

 2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08008

LS130,YS132..4H

 2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08008

LS130,YS132..4H

 2
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
90206-08016

LS130,MS132,135,YS132..4H,4HC

 2
90206-08016

YS132..4H

 4
Common parts
90179-08011
90179-10041
90468-14004
90580-14002
91611-60814
91611-60825
93319-14008
94613-10800
95381-02020

ILLUST NO. 2 OF 2(9110-9512)4H

Click highlighted areas on diagram

diagram 33078 33701 33702 33702A 33705D 33709 33731A 33736 33736A 33736B 33741B 33742A 33770A 33770A 33770A 33770A 33772 33772 33772 33772 33772 33772 33772 33772 33773 33773 33773A 33773A 33775C 33775C 33775D 33775D 9017910063 9017910063 9020608016 9020608016 9020608016 9020608016 9020608016 9020608016 9046814004 9161160818 9454201000 9454201000 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9538102020 9538102020 9538102020 9538102020 9538102020
Part # Description Qty Price
Common parts
90179-10063
90206-08016
90468-14004
91611-60818
94542-01000
94613-10800
95381-02020
