YS120R-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )MS122,YS120..SAL,STD

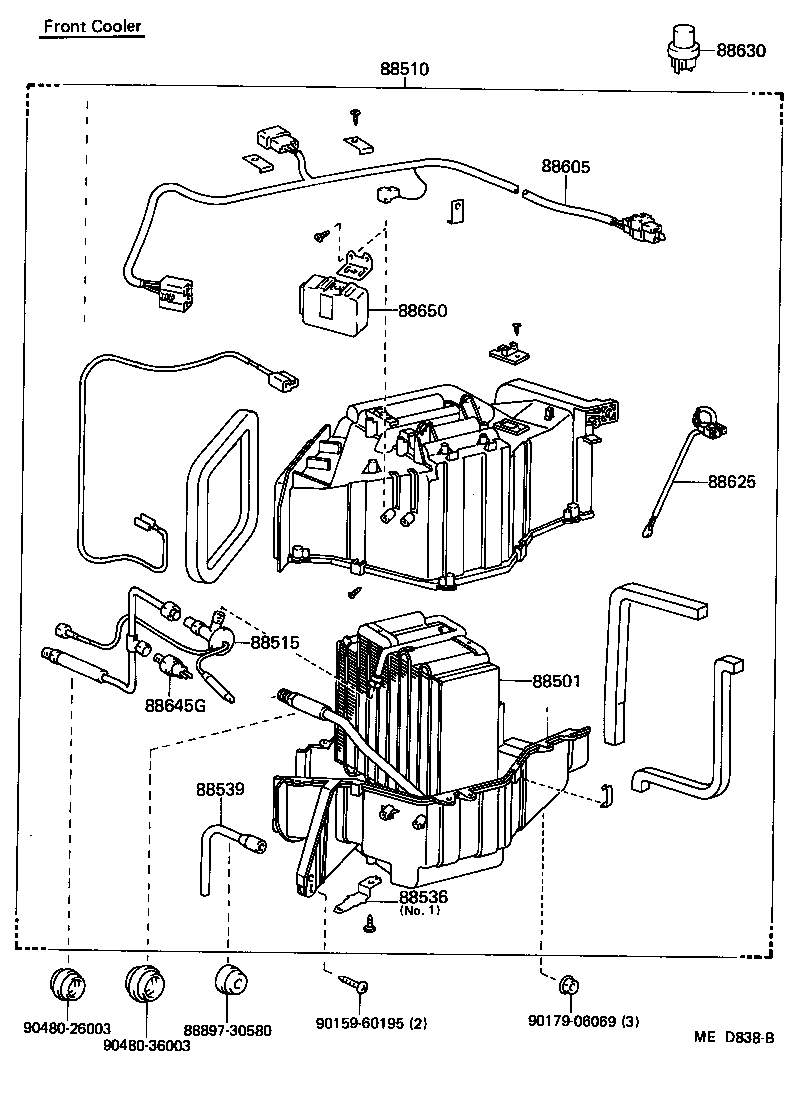

Click highlighted areas on diagram

diagram 88501 88510 88515 88536 88539 88605 88625 88630 88645G 88650 8889730580 9015960195 9017906069 9048026003 9048036003
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30590

MS12#,YS120..RHD

FR COOLER

 1
88501-30591

MS12#,YS120..RHD

FR COOLER

 1
88510 - UNIT ASSY, COOLER
88510-3A030

YS120..RHD

FR COOLER

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

LS120,YS120

FR COOLER

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-30870

YS120

NO.2

 1
88688-30870

MS12#,YS120

NO.2

 1
88688-30870

MS12#,YS120

NO.2

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-30590

LS120,MS12#,YS120

FR COOLER

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88608-30500

YS120;LS120..4F,5F;LS120..LHD..STD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20040

LS120,YS120

FR COOLER

 1
88630 - RELAY ASSY, COOLER
90987-03001

LS120,MS12#,YS120

B4 TYPE,FR COOLER

 3
88645G - SWITCH, PRESSURE
88645-30250

MS12#,YS120

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14051

YS120

 1
Common parts
88897-30580
90159-60195
90179-06069
90480-26003
90480-36003
