YS120R-SEKBS (1983)
Toyota Crown
(8308- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3086005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3088005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3088004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3086004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3088104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3086104 |
LS120,YS120 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3086106 |
YS120;LS120..4F;LS120..LHD PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-3088106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20097 |
LS120,YS120..STD L=1050 |
1 | ||
| 90580-20105 |
LS120,YS120..STD L=250 |
2 | ||
| 90580-20079 |
LS120,YS120..STD L=960 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20097 |
LS120,YS120..STD L=1050 |
1 | ||
| 90580-20105 |
LS120,YS120..STD L=250 |
2 | ||
| 90580-20079 |
LS120,YS120..STD L=960 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A02005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3A02004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A17004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A17005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3A02106 |
YS120;LS120..4F;LS120..LHD PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-3A17106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-3A02104 |
LS120,YS120 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A17104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20130 |
LS120,YS120..STD L=700 |
2 | ||
| 90580-20168 |
LS120,YS120..STD L=1300 |
1 | ||
| 90580-20015 |
LS120,YS120..STD L=900 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 90580-29013 |
LS120,YS120..STD L=400 |
2 | ||
| 90580-20136 |
LS120,YS120..STD L=80 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20130 |
LS120,YS120..STD L=700 |
2 | ||
| 90580-20168 |
LS120,YS120..STD L=1300 |
1 | ||
| 90580-20015 |
LS120,YS120..STD L=900 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 90580-29013 |
LS120,YS120..STD L=400 |
2 | ||
| 90580-20136 |
LS120,YS120..STD L=80 |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3018005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-3020005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-3018004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3020004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3018104 |
LS120,YS120 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3018106 |
YS120;LS120..4F;LS120..LHD PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-3020104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,MAROON,BLUE,TRIM3# |
1 | ||
| 71560-3020106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A09005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3A24005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3A24004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A09104 |
LS120,YS120 PF,MAROON,BLUE,TRIM3# |
1 | ||
| 71480-3A09004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A24104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A09106 |
YS120;LS120..4F;LS120..LHD PF,BLUE,BROWN,TRIM8# |
1 | ||
| 71480-3A24106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30490 |
LS120,YS120..STD |
1 | ||
| 71611-30500 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30280 |
LS120,MS12#,YS120..SED |
1 | ||
| 71650-30280 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-30040 |
LS120,YS120..4F FB SEAT |
1 | ||
| 71507-30030 |
LS120,YS120..STD PF SEAT |
1 | ||
| 71507-30031 |
LS120,MS122,YS120..DLX,STD |
1 | ||
| 71651-30490 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30310 |
LS120,YS120..STD |
1 | ||
| 71670-30310 |
LS120,MS122,YS120..DLX,STD |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30071 |
LS120,MS122,YS120..DLX,STD |
2 | ||
| 71953-30070 |
LS120,YS120..STD |
2 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30071 |
LS120,MS122,YS120..DLX,STD |
2 | ||
| 71953-30070 |
LS120,YS120..STD |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
LS120,MS12#,YS120..SED |
2 | ||
| 72693-30011 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
2 | ||
| Common parts | ||||
| 90119-08164 | ||||
(8308-8509)STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3086005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3088005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3088004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3086004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3088104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3086104 |
LS120,YS120 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3086106 |
YS120;LS120..4F;LS120..LHD PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-3088106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20097 |
LS120,YS120..STD L=1050 |
1 | ||
| 90580-20105 |
LS120,YS120..STD L=250 |
2 | ||
| 90580-20079 |
LS120,YS120..STD L=960 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20097 |
LS120,YS120..STD L=1050 |
1 | ||
| 90580-20105 |
LS120,YS120..STD L=250 |
2 | ||
| 90580-20079 |
LS120,YS120..STD L=960 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3A02005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3A02004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A17004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A17005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3A02106 |
YS120;LS120..4F;LS120..LHD PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-3A17106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-3A02104 |
LS120,YS120 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3A17104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20130 |
LS120,YS120..STD L=700 |
2 | ||
| 90580-20168 |
LS120,YS120..STD L=1300 |
1 | ||
| 90580-20015 |
LS120,YS120..STD L=900 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 90580-29013 |
LS120,YS120..STD L=400 |
2 | ||
| 90580-20136 |
LS120,YS120..STD L=80 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20130 |
LS120,YS120..STD L=700 |
2 | ||
| 90580-20168 |
LS120,YS120..STD L=1300 |
1 | ||
| 90580-20015 |
LS120,YS120..STD L=900 |
2 | ||
| 90580-29003 |
LS120,YS120..STD L=300 |
2 | ||
| 90580-29013 |
LS120,YS120..STD L=400 |
2 | ||
| 90580-20136 |
LS120,YS120..STD L=80 |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-3018005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-3020005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-3018004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3020004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3018104 |
LS120,YS120 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71560-3018106 |
YS120;LS120..4F;LS120..LHD PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-3020104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,MAROON,BLUE,TRIM3# |
1 | ||
| 71560-3020106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3A09005 |
LS120..4F;YS120..STD;LS120..LHD..STD PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3A24005 |
LS120,YS120..4F FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3A24004 |
LS120,YS120..4F FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A09104 |
LS120,YS120 PF,MAROON,BLUE,TRIM3# |
1 | ||
| 71480-3A09004 |
LS120,YS120..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A24104 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3A09106 |
YS120;LS120..4F;LS120..LHD PF,BLUE,BROWN,TRIM8# |
1 | ||
| 71480-3A24106 |
LS120,MS122,YS120..(4F,5F)..(DLX,STD) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30490 |
LS120,YS120..STD |
1 | ||
| 71611-30500 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30280 |
LS120,MS12#,YS120..SED |
1 | ||
| 71650-30280 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-30031 |
LS120,MS122,YS120..DLX,STD |
1 | ||
| 71507-30040 |
LS120,YS120..4F FB SEAT |
1 | ||
| 71507-30030 |
LS120,YS120..STD PF SEAT |
1 | ||
| 71651-30490 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30310 |
LS120,YS120..STD |
1 | ||
| 71670-30310 |
LS120,MS122,YS120..DLX,STD |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LS120,MS12#,YS120 |
1 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30071 |
LS120,MS122,YS120..DLX,STD |
2 | ||
| 71953-30070 |
LS120,YS120..STD |
2 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30071 |
LS120,MS122,YS120..DLX,STD |
2 | ||
| 71953-30070 |
LS120,YS120..STD |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
LS120,MS12#,YS120..SED |
2 | ||
| 72693-30011 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3016005 |
LS120,YS120..4F BEIGE,BEIGE,TRIM4# |
1 | ||
| 72830-3016004 |
LS120,YS120..4F BLUE,BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F RH |
1 | ||
| 90386-06009 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F LH |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F RH |
1 | ||
| 90386-06009 |
MS122..SED;LS120,MS123,125,YS120..4F,4FC,4HC,5F LH |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-08164 | ||||
| 90468-12070 | ||||
(8308- )HT,SED

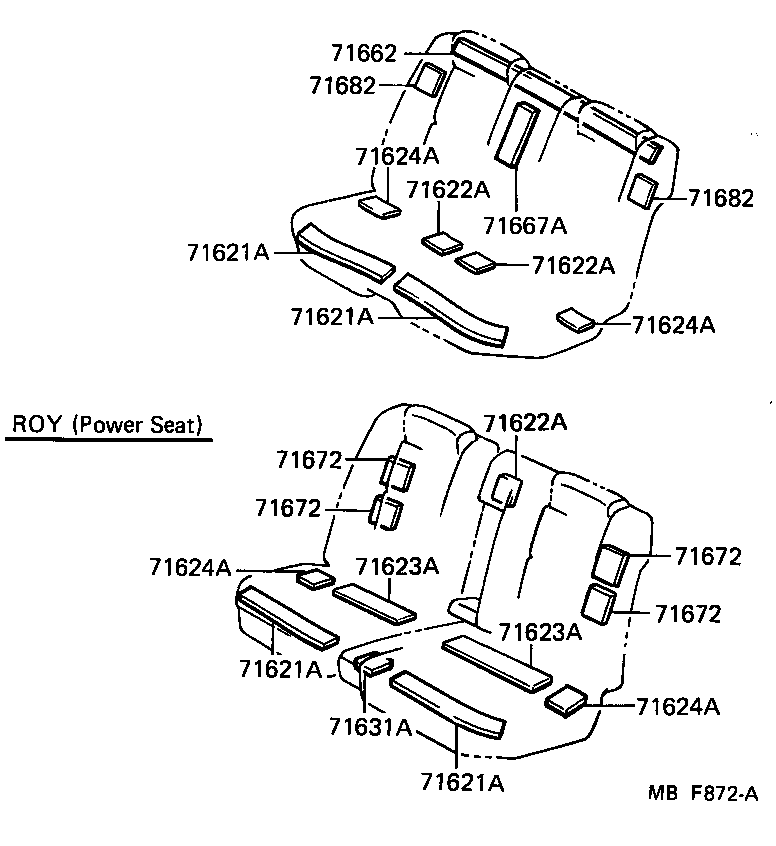

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30240 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30240 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30240 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30240 |
LS120,MS12#,YS120..SED |
2 | ||
| 71621-30240 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71672-30030 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71672-30030 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71672-30030 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71624A - PAD, REAR SEAT CUSHION SILENCER, D | ||||
| 71672-30030 |
MS125..SED..4FC;LS120,MS122,123,YS120..SED |
2 | ||
| 71523-30020 |
LS120,MS12#,YS120..SED |
2 | ||
| 71662 - PAD, REAR SEAT BACK, UPPER B | ||||
| 71662-30110 |
LS120,MS12#,YS120..SED |
1 | ||
| 71662-30110 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-30020 |
MS125..4FC;LS120,MS122,123,YS120..HT,SED |
1 | ||
| 71667-30020 |
LS120,MS12#,YS120..SED |
1 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71682-30030 |
LS120,YS120..STD |
2 | ||
| 71682-30030 |
LS120,MS122,YS120..DLX,STD |
2 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71682-30030 |
LS120,YS120..STD |
2 | ||
| 71682-30030 |
LS120,MS122,YS120..DLX,STD |
2 | ||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08164 | ||||
| 90179-08143 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
