YS120L-SEKBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

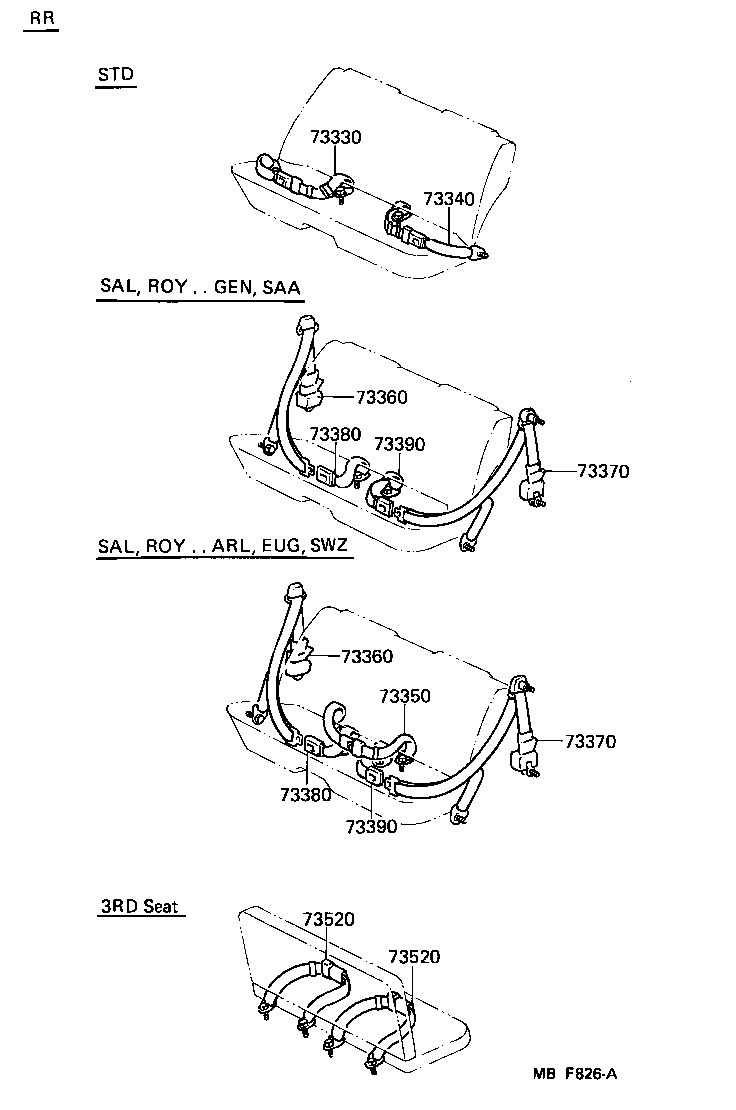

diagram 73330 73340 73350 73360 73360 73370 73370 73380 73380 73390 73390 73520 73520
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-3008106

LS120..4F;LS120..LHD;MS122,YS120..DLX,STD

BROWN,BROWN,TRIM4#

 1
73330-3008004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
73330-3008005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
73330-3008104

LS120,MS122,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-3008005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
73330-3008104

LS120,MS122,YS120..DLX,STD

BLUE,BLUE,TRIM8#

 1
73330-3008004

LS120,YS120..STD

BLUE,BLUE,TRIM8#

 1
73330-3008106

LS120..4F;LS120..LHD;MS122,YS120..DLX,STD

BROWN,BROWN,TRIM4#

 1

(8308- )

Click highlighted areas on diagram

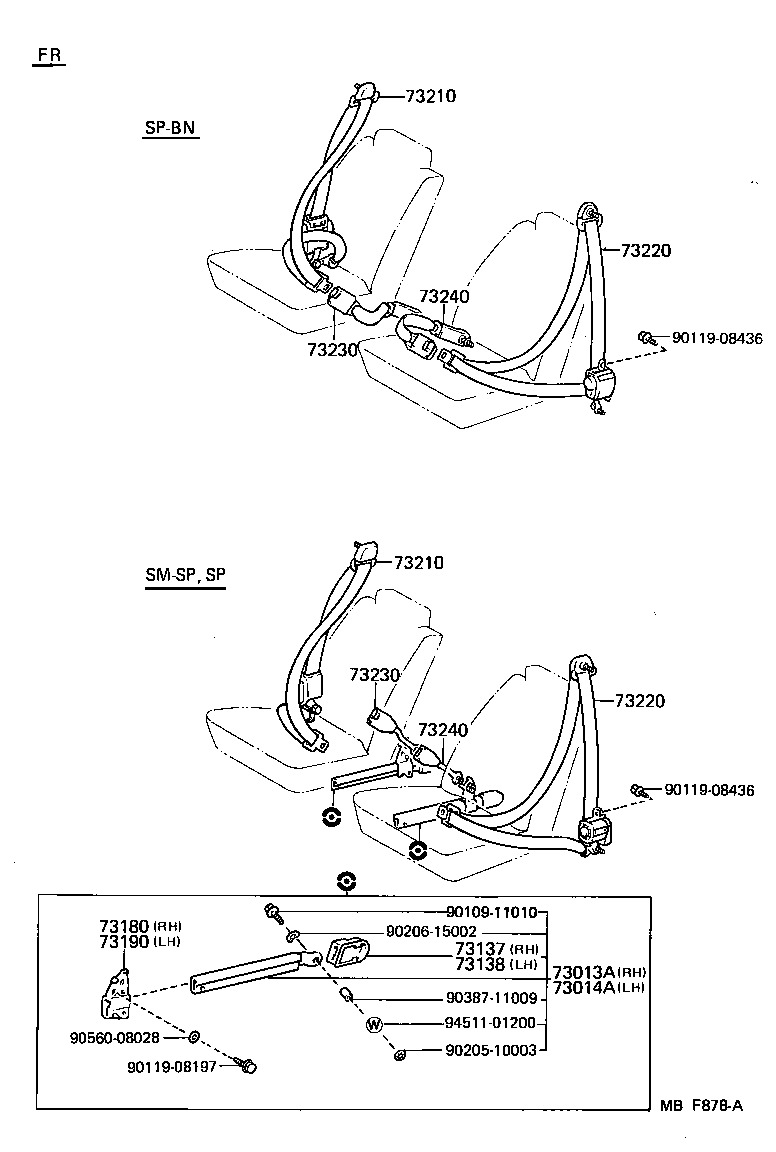

diagram 73013A 73014A 73137 73138 73180 73190 73210 73210 73220 73220 73230 73230 73240 73240 9010911010 9011908197 9011908436 9011908436 9020510003 9020615002 9038711009 9056008028 9451101200
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-3001005

LS120,MS12#,YS120..4F,4FC,5F

BEIGE,BEIGE,TRIM4#

 1
73013-3001004

LS120,MS12#,YS120..SED..(4F,4FC,5F)

BLUE,BLUE,TRIM8#

 1
73013-3001006

MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)

BROWN,BROWN,TRIM4#

 1
73013-3001004

LS120,MS12#,YS120..4F,4FC,5F

BLUE,BLUE,TRIM8#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-3001005

LS120,MS12#,YS120..4F,4FC,5F

BEIGE,BEIGE,TRIM4#

 1
73014-3001004

LS120,MS12#,YS120..SED..(4F,4FC,5F)

BLUE,BLUE,TRIM8#

 1
73014-3001006

MS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)

BROWN,BROWN,TRIM4#

 1
73014-3001004

LS120,MS12#,YS120..4F,4FC,5F

BLUE,BLUE,TRIM8#

 1
73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH
73137-3002005

LS120,MS12#,YS120..4F,4FC,5F

BEIGE,BEIGE,TRIM4#

 1
73137-3002004

LS120,MS12#,YS120..4F,4FC,4HC,5F

BLUE,BLUE,TRIM8#

 1
73137-3002006

MS125..SED;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,4HC,5F)

BROWN,BROWN,TRIM4#

 1
73137-3002004

LS120,MS12#,YS120..SED..(4F,4FC,5F)

BLUE,BLUE,TRIM8#

 1
73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH
73138-3002005

LS120,MS12#,YS120..4F,4FC,5F

BEIGE,BEIGE,TRIM4#

 1
73138-3002004

LS120,MS12#,YS120..SED..(4F,4FC,5F)

BLUE,BLUE,TRIM8#

 1
73138-3002004

LS120,MS12#,YS120..4F,4FC,4HC,5F

BLUE,BLUE,TRIM8#

 1
73138-3002006

MS125..SED;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,4HC,5F)

BROWN,BROWN,TRIM4#

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-30020

LS120,MS12#,YS120..4F,4FC,5F

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-30020

LS120,MS12#,YS120..4F,4FC,5F

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-3031106

LS120..4F;LS120..LHD;MS122,YS120..SED..(DLX,SAL,STD)

BROWN,BROWN,TRIM4#

 1
73210-3031005

YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
73210-3031004

LS120,MS122,YS120..SED..(SAL,STD)

BLUE,BLUE,TRIM8#

 1
73210-3031104

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

BLUE,BLUE,TRIM8#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-3031106

LS120..4F;LS120..LHD;MS122,YS120..SED..(DLX,SAL,STD)

BROWN,BROWN,TRIM4#

 1
73210-3031005

YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
73210-3031004

LS120,MS122,YS120..SED..(SAL,STD)

BLUE,BLUE,TRIM8#

 1
73210-3031104

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

BLUE,BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-3014004

LS120,MS122,YS120..SED..(SAL,STD)

BLUE,BLUE,TRIM8#

 1
73220-3014005

YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
73220-3014104

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

BLUE,BLUE,TRIM8#

 1
73220-3014106

LS120..4F;LS120..LHD;MS122,YS120..SED..(DLX,SAL,STD)

BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-3014004

LS120,MS122,YS120..SED..(SAL,STD)

BLUE,BLUE,TRIM8#

 1
73220-3014005

YS120;LS120..4F,5F;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
73220-3014104

LS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)

BLUE,BLUE,TRIM8#

 1
73220-3014106

LS120..4F;LS120..LHD;MS122,YS120..SED..(DLX,SAL,STD)

BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-3030004

LS120,MS122,YS120..SED..(4F,4FC,5F)..(SAL,STD)

BLUE,BLUE,TRIM8#

 1
73230-3030005

LS120,MS122,YS120..(4F,4FC,5F)..(SAL,STD)

BEIGE,BEIGE,TRIM4#

 1
73230-3030206

LS120,MS122,YS120..(HT,SED)..(4F,4FC,5F)..(DLX,SAL,STD)

BROWN,BROWN,TRIM4#

 1
73230-3030204

LS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)

BLUE,BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-3030004

LS120,MS122,YS120..SED..(4F,4FC,5F)..(SAL,STD)

BLUE,BLUE,TRIM8#

 1
73230-3030005

LS120,MS122,YS120..(4F,4FC,5F)..(SAL,STD)

BEIGE,BEIGE,TRIM4#

 1
73230-3030206

LS120,MS122,YS120..(HT,SED)..(4F,4FC,5F)..(DLX,SAL,STD)

BROWN,BROWN,TRIM4#

 1
73230-3030204

LS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)

BLUE,BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-3030004

LS120,MS122,YS120..SED..(4F,4FC,5F)..(SAL,STD)..GEN

BLUE,BLUE,TRIM8#

 1
73230-3030005

LS120,MS122,YS120..(4F,4FC,5F)..(SAL,STD)..GEN

BEIGE,BEIGE,TRIM4#

 1
73240-3006004

LS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)..GEN

BLUE,BLUE,TRIM8#

 1
73240-3006006

LS120,MS122,YS120..SED..(4F,4FC,5F)..(DLX,SAL,STD)..GEN

BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-3030004

LS120,MS122,YS120..SED..(4F,4FC,5F)..(SAL,STD)..GEN

BLUE,BLUE,TRIM8#

 1
73230-3030005

LS120,MS122,YS120..(4F,4FC,5F)..(SAL,STD)..GEN

BEIGE,BEIGE,TRIM4#

 1
73240-3006004

LS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)..GEN

BLUE,BLUE,TRIM8#

 1
73240-3006006

LS120,MS122,YS120..SED..(4F,4FC,5F)..(DLX,SAL,STD)..GEN

BROWN,BROWN,TRIM4#

 1
Common parts
90109-11010
90119-08197
90119-08436
90205-10003
90206-15002
90387-11009
90560-08028
94511-01200
