YS120L-SEJBS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 3Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )DLX,STD..GEN

Click highlighted areas on diagram

diagram 45100 45105 45129 45130 45131 45189 45201P 45207 9015950016 9331915012 9351013008 9351014008
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3025005

YS120..LHD

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

 1
45100-3021025

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45100-3025006

YS120..LHD

W/POWER STEERING,BROWN,SEPIA BROWN,TRIM4#

 1
45100-3025004

LS120;YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45100-3021006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45100-3025014

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45100-3021014

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30080

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
45105-30090

LS120,MS122,YS120..(DLX,STD)..GEN

 1
45129 - BUTTON, HORN, NO.2
45131-3017005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45131-3017004

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45131-3017006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-3020005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45130-3021005

MS12#;YS120..LHD

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

 1
45130-3021004

YS120..LHD;LS120,MS12#

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3021006

YS120..LHD

W/POWER STEERING,BROWN,SEPIA BROWN,TRIM4#

 1
45130-3020004

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45130-3020006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45130-3021014

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3021004

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3020014

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45131 - BUTTON, HORN, NO.1
45131-3017006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45131-3017004

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45131-3017014

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45131-3017005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45189 - BUTTON, HORN, NO.3
45131-3017014

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45131-3017005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45131-3017006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45131-3017004

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC

 1
45207 - RING, HORN CONTACT
45176-14050

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
45176-30030

LS120,MS122,YS120..(DLX,STD)..GEN

 1
45176-14030

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
Common parts
90159-50016
93319-15012
93510-13008
93510-14008

(8308- )LS120 ; (8308- )MS122..4HC ; (8308- )YS120..LHD

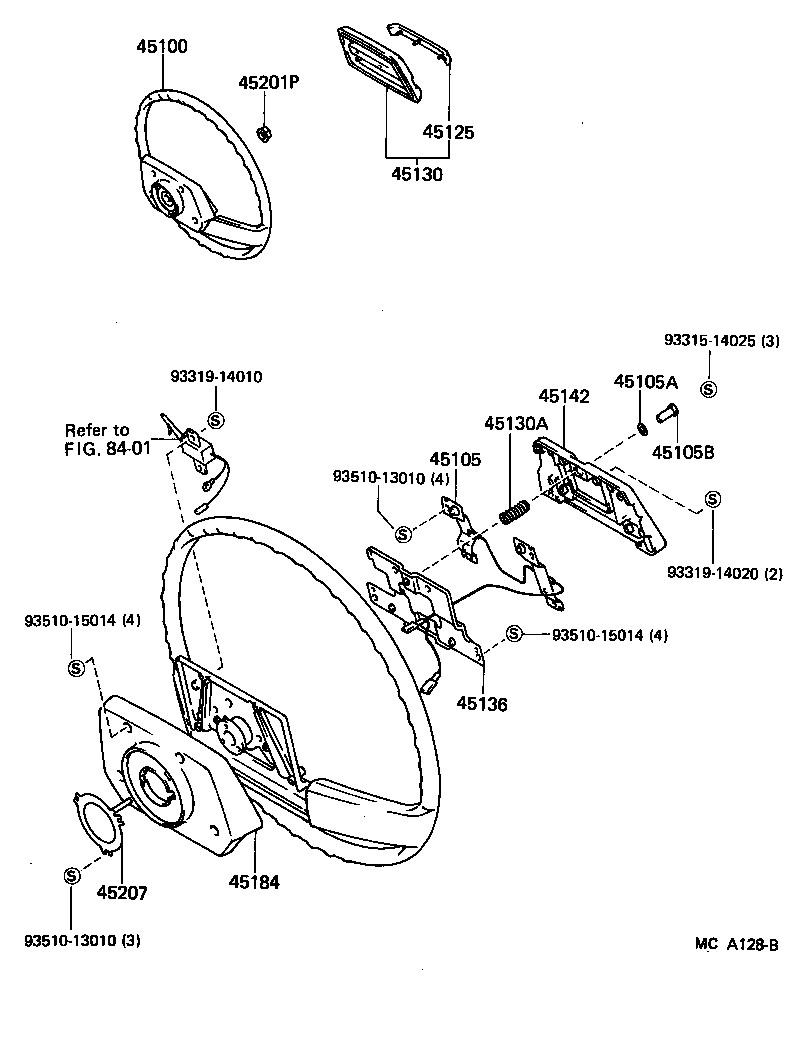

Click highlighted areas on diagram

diagram 45100 45105 45105A 45105B 45125 45130 45130A 45136 45142 45184 45201P 45207 8401 9331514025 9331914010 9331914020 9351013010 9351013010 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3025005

YS120..LHD

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

 1
45100-3021025

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45100-3025006

YS120..LHD

W/POWER STEERING,BROWN,SEPIA BROWN,TRIM4#

 1
45100-3025004

LS120;YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45100-3021006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45100-3025014

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45100-3021014

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30080

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
45105-30090

LS120,MS122,YS120..(DLX,STD)..GEN

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08006

YS120..LHD;LS120,MS12#

 3
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04006

YS120..LHD;LS120,MS12#

 3
45125 - MARK, STEERING WHEEL PAD
45125-3020004

YS120..LHD;LS120,MS12#..SED

BLUE,BLUE,TRIM8#

 1
45125-3020014

YS120..LHD

BLUE,BLUE,TRIM8#

 1
45125-3020005

YS120..LHD

BEIGE,BEIGE,TRIM4#

 1
45125-3020004

YS120..LHD;LS120,MS12#

BLUE,BLUE,TRIM8#

 1
45130 - BUTTON ASSY, HORN
45130-3020005

LS120..4F;YS120..STD;LS120..LHD..STD

BEIGE,BEIGE,TRIM4#

 1
45130-3021005

MS12#;YS120..LHD

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

 1
45130-3021004

YS120..LHD;LS120,MS12#

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3021006

YS120..LHD

W/POWER STEERING,BROWN,SEPIA BROWN,TRIM4#

 1
45130-3020004

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45130-3020006

YS120;LS120..4F;LS120..LHD

BROWN,BROWN,TRIM4#

 1
45130-3021014

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3021004

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45130-3020014

LS120,MS122,YS120..(DLX,STD)..GEN

BLUE,BLUE,TRIM8#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10040

YS120..LHD;LS120,MS12#

 3
90501-10104

YS120..LHD;LS120,MS12#

 3
45136 - PLATE, HORN BUTTON CONTACT
45136-30130

YS120..LHD;LS120,MS12#

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-30060

YS120..LHD;LS120,MS12#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-3006005

YS120..LHD

W/POWER STEERING,BEIGE,BEIGE,TRIM4#

 1
45184-3006006

YS120..LHD

W/POWER STEERING,BROWN,SEPIA BROWN,TRIM4#

 1
45184-3006004

LS120;YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45184-3006014

YS120..LHD

W/POWER STEERING,BLUE,BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MS122..DLX..SAA;LS120,MS12#,YS120..4F,4H,4HC

 1
45207 - RING, HORN CONTACT
45176-14050

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
45176-30030

LS120,MS122,YS120..(DLX,STD)..GEN

 1
45176-14030

YS120..LHD;LS120,MS12#

W/POWER STEERING

 1
Common parts
93315-14025
93319-14010
93319-14020
93510-13010
93510-15014
Linked diagrams
8401
