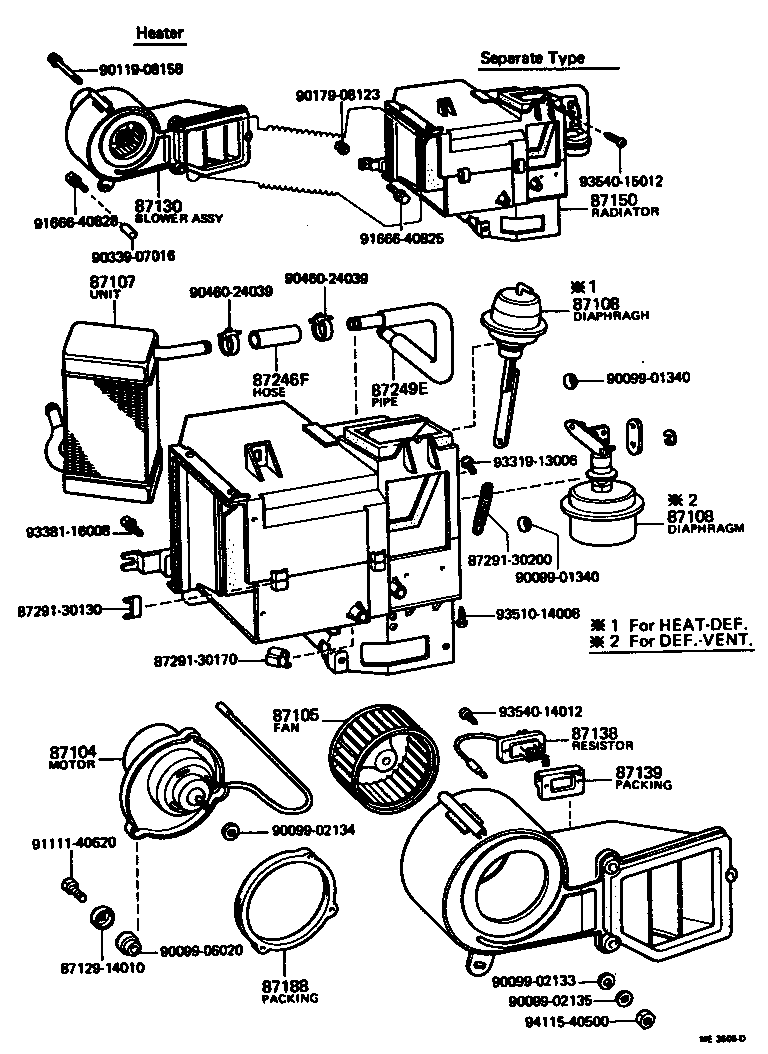

RS80R-KB (1974)
Toyota Crown
(7410-7908)RHD..BTP,DLX,SAL,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-30280 |
MS8#,95,RS80..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 88541-40040 |
MS8#,95,RS80..RHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30260 |
MS8#,95,RS80..RHD |
1 | ||
| 87107-30300 |
MS8#,95,RS80..RHD |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30250 |
MS8#,95,RS80..RHD FOR HEAT-DEF |
1 | ||
| 87108-30240 |
MS8#,95,RS80..RHD FOR DEF-VENT |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30250 |
MS8#,95,RS80..RHD FOR HEAT-DEF |
1 | ||
| 87108-30240 |
MS8#,95,RS80..RHD FOR DEF-VENT |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30290 |
MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30230 |
MS8#,95,RS80 |
1 | ||
| 87138-30231 |
MS8#,95,RS80..BTP,DLX,SAL,STD |
1 | ||
| 87139 - PACKING, BLOWER HEATER RESISTOR | ||||
| 87291-30160 |
MS8#,95,RS80 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-30260 |
MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD) |
1 | ||
| 87150-30290 |
MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD) |
1 | ||
| 87150-30261 |
MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD) |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87291-30150 |
MS8#,95,RS80 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30070 |
MS8#,95,RS80..RHD L=70 |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87156-30010 |
MS8#,95,RS80..RHD |
1 | ||
| Common parts | ||||
| 87129-14010 | ||||
| 87291-30130 | ||||
| 87291-30170 | ||||
| 87291-30200 | ||||
| 90099-01340 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-06020 | ||||
| 90119-08158 | ||||
| 90179-08123 | ||||
| 90339-07016 | ||||
| 90460-24039 | ||||
| 91111-40620 | ||||
| 91666-40825 | ||||
| 91666-40828 | ||||
| 93319-13006 | ||||
| 93381-16008 | ||||
| 93510-14008 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||
| 94115-40500 | ||||
(7410-7908)BTP,DLX,SAL,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-30280 |
MS8#,95,RS80..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 88541-40040 |
MS8#,95,RS80..RHD |
1 | ||
| 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL | ||||
| 87108-30250 |
MS8#,95,RS80..RHD FOR HEAT-DEF |
1 | ||
| 87108-30240 |
MS8#,95,RS80..RHD FOR DEF-VENT |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-30290 |
MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD) |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-30230 |
MS8#,95,RS80 |
1 | ||
| 87138-30231 |
MS8#,95,RS80..BTP,DLX,SAL,STD |
1 | ||
| 87139 - PACKING, BLOWER HEATER RESISTOR | ||||
| 87291-30160 |
MS8#,95,RS80 |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87291-30150 |
MS8#,95,RS80 |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-30010 |
MS8#,95,RS80..RHD |
1 | ||
| Common parts | ||||
| 87129-14010 | ||||
| 87291-30130 | ||||
| 87291-30200 | ||||
| 90099-01340 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-06020 | ||||
| 90119-08158 | ||||
| 90179-08123 | ||||
| 90339-07016 | ||||
| 91111-40620 | ||||
| 91666-40825 | ||||
| 91666-40828 | ||||
| 93319-13006 | ||||
| 93381-16008 | ||||
| 93510-14008 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||
| 94115-40500 | ||||
