RS80R-KB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 5R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)BTP,DLX,SAL,STD ; (7702-7908)LHD..ROY

Click highlighted areas on diagram

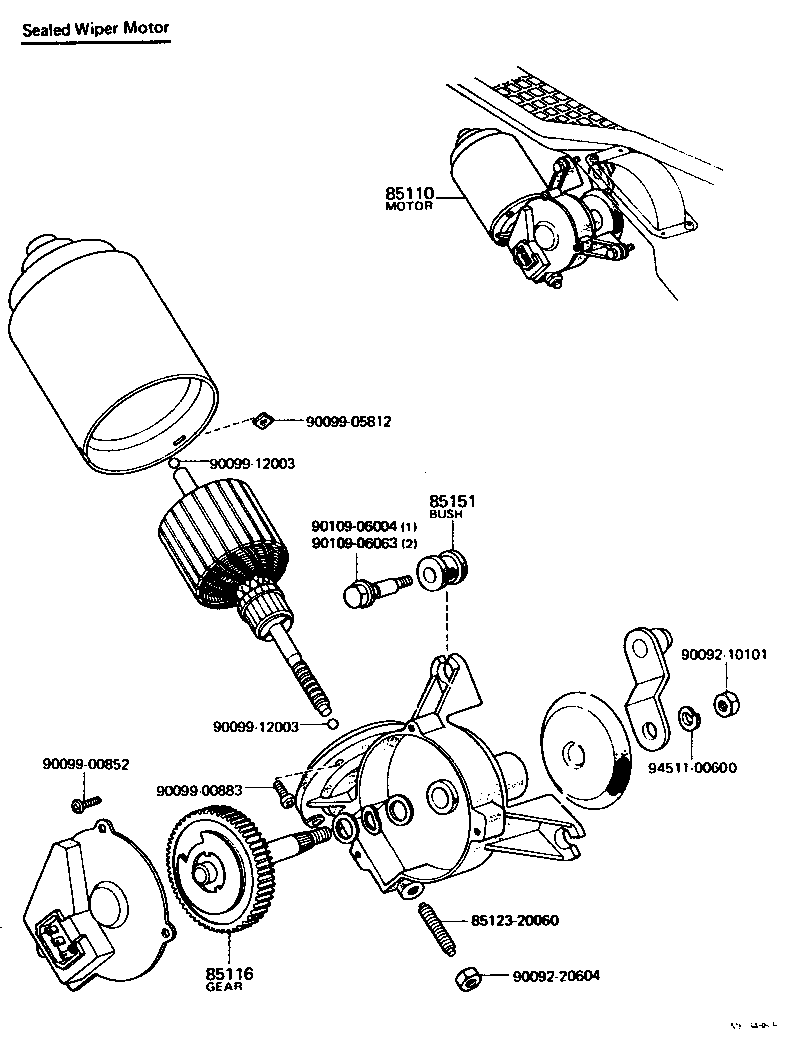

diagram 85110 85116 8512320060 85151 9009210101 9009220604 9009900852 9009900883 9009905812 9009912003 9009912003 9010906004 9010906063 9451100600
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30080

MS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)

 1
85116 - GEAR, WINDSHIELD WIPER MOTOR
85116-22050

MS85..LHD..3HC..ROY;MS8#,95,RS80..BTP,DLX,SAL,STD

 1
85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85151-20040

MS8#,95,RS80

 3
Common parts
85123-20060
90092-10101
90092-20604
90099-00852
90099-00883
90099-05812
90099-12003
90109-06004
90109-06063
94511-00600

(7410-7908)

Click highlighted areas on diagram

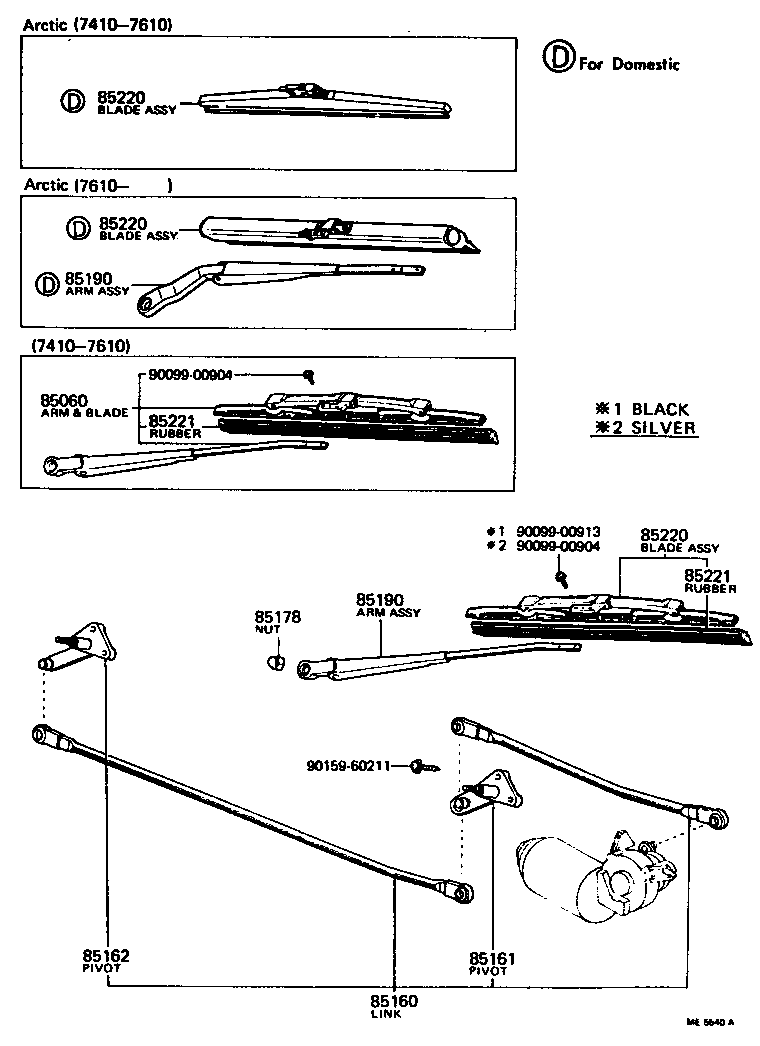

diagram 85060 85160 85161 85162 85178 85190 85190 85220 85220 85220 85221 85221 9009900904 9009900904 9009900913 9015960211
Part # Description Qty Price
85060 - ARM AND BLADE ASSY, WINDSHIELD WIPER
85060-30030

MS8#,95,RS80..RHD

ROY: FOR LH.

 2
85160 - LINK ASSY, WINDSHIELD WIPER
85160-30070

MS8#,95,RS80..RHD

 1
85161 - PIVOT, WINDSHIELD WIPER LINK, NO.1
85161-30070

MS8#,95,RS80..RHD

 1
85162 - PIVOT, WINDSHIELD WIPER LINK, NO.2
85162-30080

MS8#,95,RS80

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08005

MS8#,95,RS80

 2
90176-08012

MS8#,95,RS80

SILVER

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-30131

MS8#,95,RS80..RHD

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-30131

MS8#,95,RS80..RHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30160

MS8#,95,RS80..RHD

ROY FOR LH.MARK=A

 2
85220-30161

MS8#,95,RS80..RHD

ROY FOR LH.MARK=A

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30160

MS8#,95,RS80..RHD

ROY FOR LH.MARK=A

 2
85220-30161

MS8#,95,RS80..RHD

ROY FOR LH.MARK=A

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30160

MS8#,95,RS80..RHD

ROY FOR LH.MARK=A

 2
85220-30161

MS8#,95,RS80..RHD

ROY FOR LH.MARK=A

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30071

MS8#,95,RS80..RHD

 2
85221-20060

MS8#,95,RS80

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30071

MS8#,95,RS80..RHD

 2
85221-20060

MS8#,95,RS80

 2
Common parts
90099-00904
90099-00913
90159-60211
