RS80R-KB (1974)
Toyota Crown
(7410-7802)

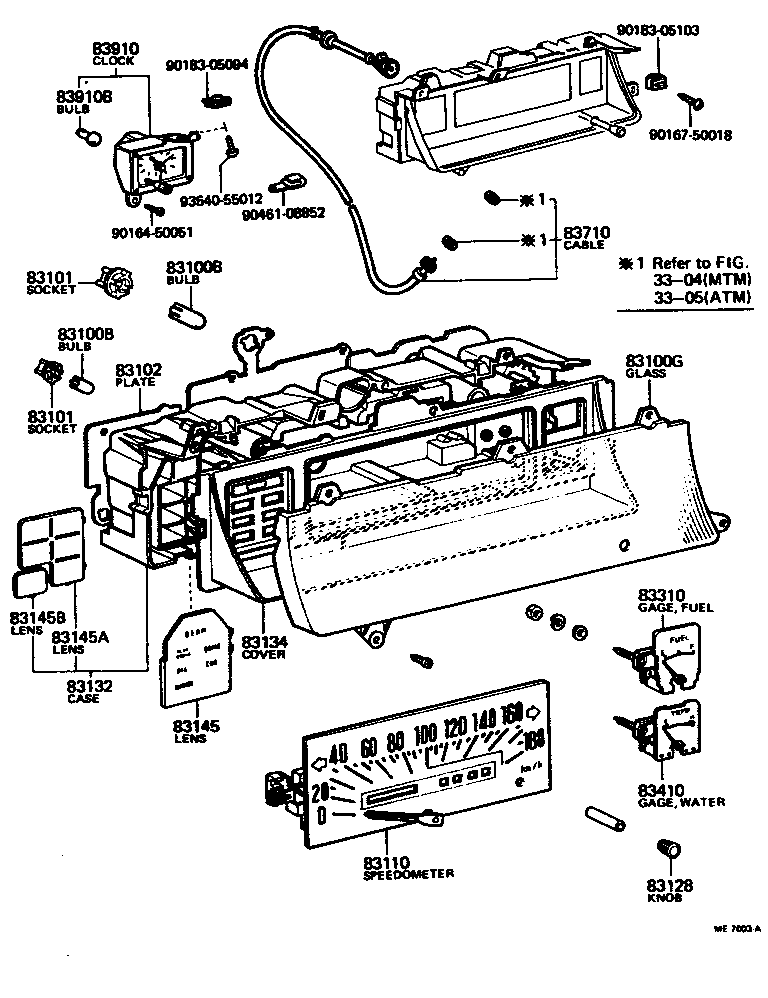

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-30460 |
MS85,88,RS80..RHD..(BTP,STD) KM. |
1 | ||
| 83100-30471 |
MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD MILE |
1 | ||
| 83100-30461 |
MS85,88,RS80..RHD..(BTP,STD) KM. |
1 | ||
| 83100-30490 |
MS85,88,RS80..RHD..(BTP,STD) MILE |
1 | ||
| 83100-30470 |
MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD MILE |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
MS8#,95,RS80 12V 3.4W,12V 3.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30390 |
MS8#,95,RS80..RHD |
1 | ||
| 83138-30391 |
MS8#,95,RS80..RHD |
1 | ||
| 83138-30650 |
MS8#,95,RS80..RHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-10010 |
MS8#,95,RS80 SMALL |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-30190 |
MS85,88,RS80..RHD..(BTP,STD) |
1 | ||
| 83247-30010 |
MS8#,95,RS80..RHD MILE |
1 | ||
| 83247-30040 |
MS85,88,RS80..RHD..(BTP,STD) KM |
1 | ||
| 83102-30110 |
MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD STD,BTP,DLX=MILE |
1 | ||
| 83102-30190 |
MS85,88,RS80..RHD..(BTP,STD) KM. |
1 | ||
| 83247-30660 |
MS83,85,95,RS80..RHD..(BTP,DLX,SAL) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30330 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) KM. |
1 | ||
| 83110-30350 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) MILE |
1 | ||
| 83241-30070 |
MS8#,95,RS80..BTP,DLX,STD KM. |
1 | ||
| 83110-30331 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) KM. |
1 | ||
| 83110-30500 |
MS83,85,95,RS80..RHD MILE & KM. |
1 | ||
| 83110-30331 |
MS8#,95,RS80..BTP,DLX,STD KM. |
1 | ||
| 83110-30501 |
MS83,85,95,RS80..RHD MILE & KM. |
1 | ||
| 83110-30480 |
MS83,85,95,RS80..RHD KM. |
1 | ||
| 83110-30341 |
MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD MILE |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83111-12560 |
MS8#,95,RS80..BTP,DLX,STD MILE |
1 | ||
| 83111-30441 |
MS8#,95,RS80..BTP,DLX,STD KM |
1 | ||
| 83111-12540 |
MS8#,95,RS80..BTP,DLX,STD KM. |
1 | ||
| 83111-30530 |
MS8#,95,RS80 MILE |
1 | ||
| 83127 - COUNTER, TRIP | ||||
| 83127-12280 |
MS8#,95,RS80 KM. |
1 | ||
| 83127-30390 |
MS8#,95,RS80 KM. |
1 | ||
| 83127-12860 |
MS8#,95,RS80 MILE |
1 | ||
| 83127-30530 |
MS8#,95,RS80 MILE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
MS8#,95,RS80 |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-30390 |
MS8#,95,RS80 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30650 |
MS8#,95,RS80 |
1 | ||
| 83310-30100 |
MS8#,95,RS80 |
1 | ||
| 83243-30010 |
MS8#,95,RS80 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-30070 |
MS8#,95,RS80 |
1 | ||
| 83410-30071 |
MS8#,95,RS80 |
1 | ||
| 83244-30650 |
MS8#,95,RS80 |
1 | ||
| 83244-30010 |
MS8#,95,RS80 |
1 | ||
| 83410-30072 |
MS8#,95,RS80 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-39325 |
MS8#,95,RS80..RHD..4F |
1 | ||
| 83710-39325 |
MS8#,95,RS80..RHD..(3H,4F) |
1 | ||
| 83710-39405 |
MS8#,95,RS80..RHD..(3H,4F) |
1 | ||
| 83710-39406 |
MS8#,95,RS80..RHD..(3H,4F) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-30070 |
MS8#,95,RS80 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-39035 |
MS8#,95,RS80..BTP,DLX,STD |
1 | ||
| 83910-30121 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-12034 |
MS8#,95,RS80..BTP,DLX,SAL,STD 12V 3.4W,12V 3.4W |
1 | ||
| 99132-11034 |
MS8#,95,RS80 12V 3.4W,12V 3.4W |
2 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
MS8#,95,RS80 |
1 | ||
| Common parts | ||||
| 90167-50018 | ||||
| 90461-08852 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3305 | ||||
(7802-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
MS8#,95,RS80 12V 3.4W,12V 3.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
MS8#,95,RS80 12V 3.4W,12V 3.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-30390 |
MS8#,95,RS80..RHD |
1 | ||
| 83138-30391 |
MS8#,95,RS80..RHD |
1 | ||
| 83138-30650 |
MS8#,95,RS80..RHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-10010 |
MS8#,95,RS80 SMALL |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-10010 |
MS8#,95,RS80 SMALL |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-30190 |
MS85,88,RS80..RHD..(BTP,STD) |
1 | ||
| 83247-30010 |
MS8#,95,RS80..RHD MILE |
1 | ||
| 83247-30040 |
MS85,88,RS80..RHD..(BTP,STD) KM |
1 | ||
| 83102-30110 |
MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD STD,BTP,DLX=MILE |
1 | ||
| 83102-30190 |
MS85,88,RS80..RHD..(BTP,STD) KM. |
1 | ||
| 83247-30660 |
MS83,85,95,RS80..RHD..(BTP,DLX,SAL) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-30330 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) KM. |
1 | ||
| 83110-30350 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) MILE |
1 | ||
| 83241-30070 |
MS8#,95,RS80..BTP,DLX,STD KM. |
1 | ||
| 83110-30331 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) KM. |
1 | ||
| 83110-30500 |
MS83,85,95,RS80..RHD MILE & KM. |
1 | ||
| 83110-30331 |
MS8#,95,RS80..BTP,DLX,STD KM. |
1 | ||
| 83110-30501 |
MS83,85,95,RS80..RHD MILE & KM. |
1 | ||
| 83110-30480 |
MS83,85,95,RS80..RHD KM. |
1 | ||
| 83110-30341 |
MS83..RHD..4F..GEN;MS83..RHD..(3FC,3H);MS85,88,95,RS80..RHD MILE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
MS8#,95,RS80 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-30650 |
MS8#,95,RS80..RHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-30650 |
MS8#,95,RS80..RHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-30710 |
MS83,85,95,RS80..RHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-30780 |
MS8#,95,RS80 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-30800 |
MS8#,95,RS80..BTP,DLX,SAL,STD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-30650 |
MS8#,95,RS80 |
1 | ||
| 83310-30100 |
MS8#,95,RS80 |
1 | ||
| 83243-30010 |
MS8#,95,RS80 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-30070 |
MS8#,95,RS80 |
1 | ||
| 83410-30071 |
MS8#,95,RS80 |
1 | ||
| 83244-30650 |
MS8#,95,RS80 |
1 | ||
| 83244-30010 |
MS8#,95,RS80 |
1 | ||
| 83410-30072 |
MS8#,95,RS80 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-39325 |
MS8#,95,RS80..RHD..4F |
1 | ||
| 83710-39325 |
MS8#,95,RS80..RHD..(3H,4F) |
1 | ||
| 83710-39405 |
MS8#,95,RS80..RHD..(3H,4F) |
1 | ||
| 83710-39406 |
MS8#,95,RS80..RHD..(3H,4F) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-39035 |
MS8#,95,RS80..BTP,DLX,STD |
1 | ||
| 83910-30121 |
MS8#,95,RS80..RHD..(BTP,DLX,STD) |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-12034 |
MS8#,95,RS80..BTP,DLX,SAL,STD 12V 3.4W,12V 3.4W |
1 | ||
| 99132-11034 |
MS8#,95,RS80 12V 3.4W,12V 3.4W |
2 | ||
| Common parts | ||||
| 90164-50051 | ||||
| 90167-50018 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90461-08852 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3305 | ||||
